Quick Details
-
Brand Name:
-
Damo
-
Model Number:
-
DMLL-I
-
Product Name:
-

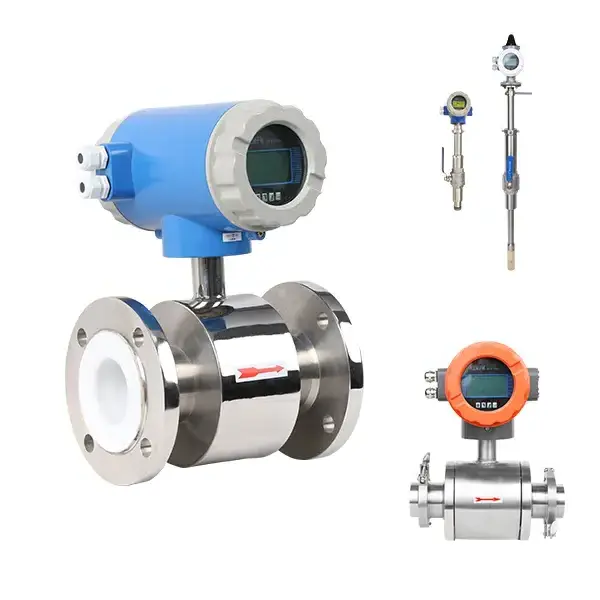

liquid electromagnetic flow meter
-
Medium:
-
Various conductive liquid
-
Caliber range:
-
DN3-DN3000 (DN3\DN4 is flange clamping type)
-
Lining type:
-
Polychloroprene rubber, PTFE, F46, PFA
-
Electrode type:
-
316L, titanium, stainless steel tungsten carbide
-
Accuracy:
-
0.5% can be customized 0.3%0.2%
-
Pressure range:
-
0.6~42Mpa; (high pressure needs to be customized)
-
Temperature resistance:
-
-25~80℃;
-
Protection level:
-
Sensor IP65\IP67\IP68 (optional), converter IP65
-
Power supply:
-
85~250V, 45~63Hz, 20VDC --- 36VDC
Quick Details
-
Type:
-
Variable Area Water Flowmeters, industrial flow meter, liquid flow meter, Electromagnetic Flowmeter, Electromagnetic Flow meter, flow meter for water, electromagnetic water flow meter
-
Warranty:
-
18 months
-
Place of Origin:
-
Guangxi, China
-
Brand Name:
-
Damo
-
Model Number:
-
DMLL-I
-
Product Name:
-
liquid electromagnetic flow meter
-
Medium:
-
Various conductive liquid
-
Caliber range:
-
DN3-DN3000 (DN3\DN4 is flange clamping type)
-
Lining type:
-
Polychloroprene rubber, PTFE, F46, PFA
-
Electrode type:
-
316L, titanium, stainless steel tungsten carbide
-
Accuracy:
-
0.5% can be customized 0.3%0.2%
-
Pressure range:
-
0.6~42Mpa; (high pressure needs to be customized)
-
Temperature resistance:
-
-25~80℃;
-
Protection level:
-
Sensor IP65\IP67\IP68 (optional), converter IP65
-
Power supply:
-
85~250V, 45~63Hz, 20VDC --- 36VDC
Product details
Product details
Product information
Product information
|
Liner material
|
Applications
|
|
|
PTFE :
|
1.The most steadiest material in plastics which is resistance to boiling hydrochloric acid ,vitriol and aqua regia as well as
strong and organic impregnates. 2.Not be perfect in abrasion resistance. |
Strong corrosive mediums such as strong acid and alkali.
|
|
PTF :
|
Having the same abration resistance with PTFE .Having strong ability of load pressure resistance.
|
Applicable in state of load pressure.
|
|
F46 :
|
1. Having the same abration resistance with PTFE.
2.Resistance for low abration.3.Having strong resistance to load pressure. |
1.The same as PTFE.
2.Applicable in medium of low abrasion. |
|
Neoprene :
|
Be of good elasticity ,retractility and abration resistance 2.Be resistance to low acid ,alkali and salt but not for oxidation medium.
|
Water,sewage and slurry ,mineral serosity of low abration.
|
|
Neoprene :
|
1.Be good of abration resistibility (equal to 10 times of caoutchouc).
2.Not be perfect in acid/alkali resistance. 3.Can;t be used for water mixted with organic impregnants. |
Applicable in mineral serosity,slurry and coal slurry of high abration.
|
