Quick Details
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, 400*200*200 mm, 230*220*115 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SHIYUE
-
Voltage:
-
customized
-
Dimension(L*W*H):
-
4500*1500*2800mm
-
Weight (KG):
-
3500 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Color:
-
Bule or as your request
-
Raw material:
-
concrete
-
Weight:
-
2600KGS
-
Mould:
-
One free mould
-
Block Type:
-
hollow block and paver
-
Worker:
-
3-5
-
Pallet size:
-
680-530mm
-
Main market:
-
Global
-
Product Name:
-
QTF3-20 color interlock paver cement block brick making machine molds
Quick Details
-
Type:
-
Hollow Block Making Machine, Paving Block Making Machine, Interlock Block Making Machine, Curbstone Block Machine
-
Brick Raw Material:
-
CONCRETE
-
Production Capacity (Pieces/8 hours):
-
4480 pcs/8hours, 2500 pcs/8hours, 3400 pcs/8hours, 1920 pcs/8hours, 5760 pcs/8hours, 1500 pcs/8hours, 1280 pcs/8hours, 3000 pcs/8hours, 12000 pcs/8hours, 3200 pcs/8hours, 2560 pcs/8hours, 1000 pcs/8hours, 800 pcs/8hours, 4320-11520 pcs/ day
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, 400*200*200 mm, 230*220*115 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SHIYUE
-
Voltage:
-
customized
-
Dimension(L*W*H):
-
4500*1500*2800mm
-
Weight (KG):
-
3500 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Color:
-
Bule or as your request
-
Raw material:
-
concrete
-
Weight:
-
2600KGS
-
Mould:
-
One free mould
-
Block Type:
-
hollow block and paver
-
Worker:
-
3-5
-
Pallet size:
-
680-530mm
-
Main market:
-
Global
-
Product Name:
-
QTF3-20 color interlock paver cement block brick making machine molds
PRODUCT INTRODUCTION
QTF3-20 paver block making machine
PRODUCT INTRODUCTION
1.It is a compact machine with electric and hydraulic system, each procedure action locks with each other to guarantee the machine operate safely, easily and dependably.
2.Through mold-releasing oil cyclinder, the mold box was locked into the vibration table with high rigidity to reach the synchronous vibration,
so that the concrete can be fluidified and exhausted in two or three seconds to ensure the high-density, especially suitable to produce the standard blocks,
which can be piled up immediately so that the pallet investment can be saved directly.
3. The novel feeding system gives material exactly and average and assures the products having a high density.
TECHNICAL PARAMETERS
|
QTF3-20 hydraulic pressure full automatic block machine |
|
|
Dimension(L*W*H) |
4700*1700*2580mm |
|
Weight |
2600kgs |
|
Power |
14.25kw |
|
Main Vibration Form |
Platform vibration and pressure |
|
Cycle Time |
20 seconds |
|
Vibrating Frequency |
4600 rolls/minute |
|
Capacity |
1440-1800pcs/hour |
|
Pallet Size |
680*530mm |
|
Warranty |
1 year |
|
Raw Materials |
Crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite and other industrial wastes. |
|
Applied Products |
Concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc. |
|
Applied Fields |
Widely used in buildings, road pavings, squares, gardens, landscaping, city constructions etc. |
PRODUCT CAPACITY
|
Item |
Specification size |
Quantity per mold |
Cycle mouding |
Per hour |
Per day |
|
Hollow brick |
400*200*200 |
5pcs |
20-25s |
900-1200pcs |
900 0- 1200 0pcs |
|
Porous brick |
240*115*90 |
16pcs |
15-20s |
2880-3600pcs |
2 880 0- 3600 0pcs |
|
Standard brick |
240*115*53 |
32pcs |
15-17s |
7600-8800pcs |
76000 - 8800 0pcs |
PRODUCT DETAILS
SUPPORTING FACILITIES

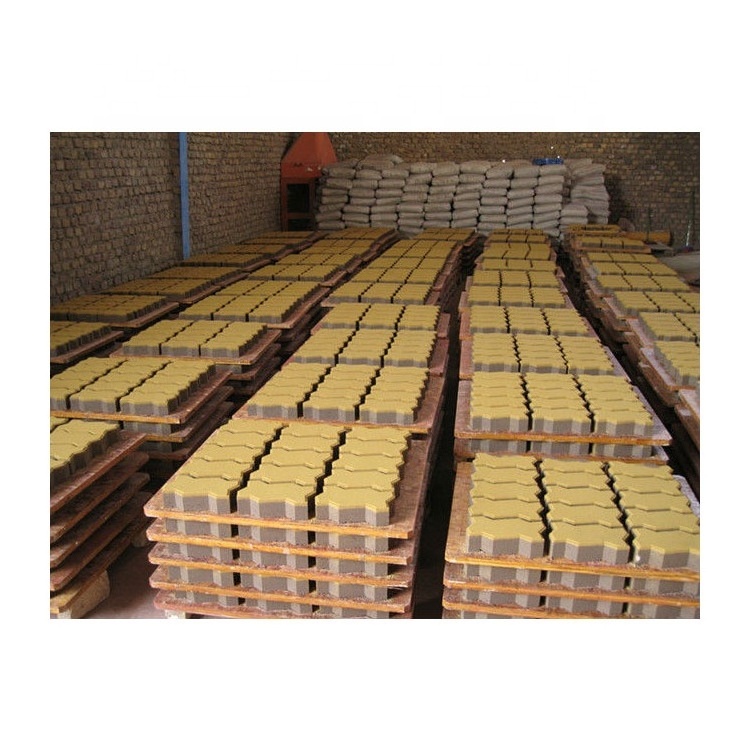

BLOCK SAMPLES
FACTORY INFORMATION
FAQ
1. Q: What kinds of the brick making machines can be choosed for customers? A: We have full-automatic, semi-automatic, manual, mobile, egg laying, paver machine for your choice.
2. Q: What kind of payment terms do we accept? A:T/T, L/C, Paypal, Western Union are commom for us. Other ways are ok by negotiation.
3. Q:How about your Production time?
A:Normally 20-25 days after your deposit. 4. Q:Can I vivst your factory? A:Yes. Many domestic and international costomers visit our factory every year.
5. Q:How long is the warranty of your equipment? Do you supply spare parts? A:Our warranty period is one year generally. We can supply spare parts.
6. Q:Do you provide after-sale service? A:Yes, We have a professional after-sale service team to promptly and thoroughly solve your problems.
OUR SERVICE
Pre-Sales Service We will strictly test and inspect the machine before shipment, and make sure that the product has no quality problem and then pack it to the customer.
After-Sales Service Training how to instal the machine, training how to use the machine.Engineers available to service machinery overseas.
