Quick Details
-
Brand Name:
-
MOREDAY
-
Model Number:
-
MDQ8
-
Rated Current:
-
100
-
Product name:
-
Automatic Transfer Switch
-
Pole:
-
3P.4P
-
Rated voltage:
-
400V
-
Operation type:
-
Automatic Operation
-
Function:
-
Automatic Transfer Switch Generator ATS
-
Current:
-
100-160A
-
Standard:
-
IEC60947-6-1
-
Rated frequency:
-
50/60 Hz
-
Warranty:
-
1Year
Quick Details
-
Type:
-
CB
-
Number of Pole:
-
3
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
MOREDAY
-
Model Number:
-
MDQ8
-
Rated Current:
-
100
-
Product name:
-
Automatic Transfer Switch
-
Pole:
-
3P.4P
-
Rated voltage:
-
400V
-
Operation type:
-
Automatic Operation
-
Function:
-
Automatic Transfer Switch Generator ATS
-
Current:
-
100-160A
-
Standard:
-
IEC60947-6-1
-
Rated frequency:
-
50/60 Hz
-
Warranty:
-
1Year
Product Description

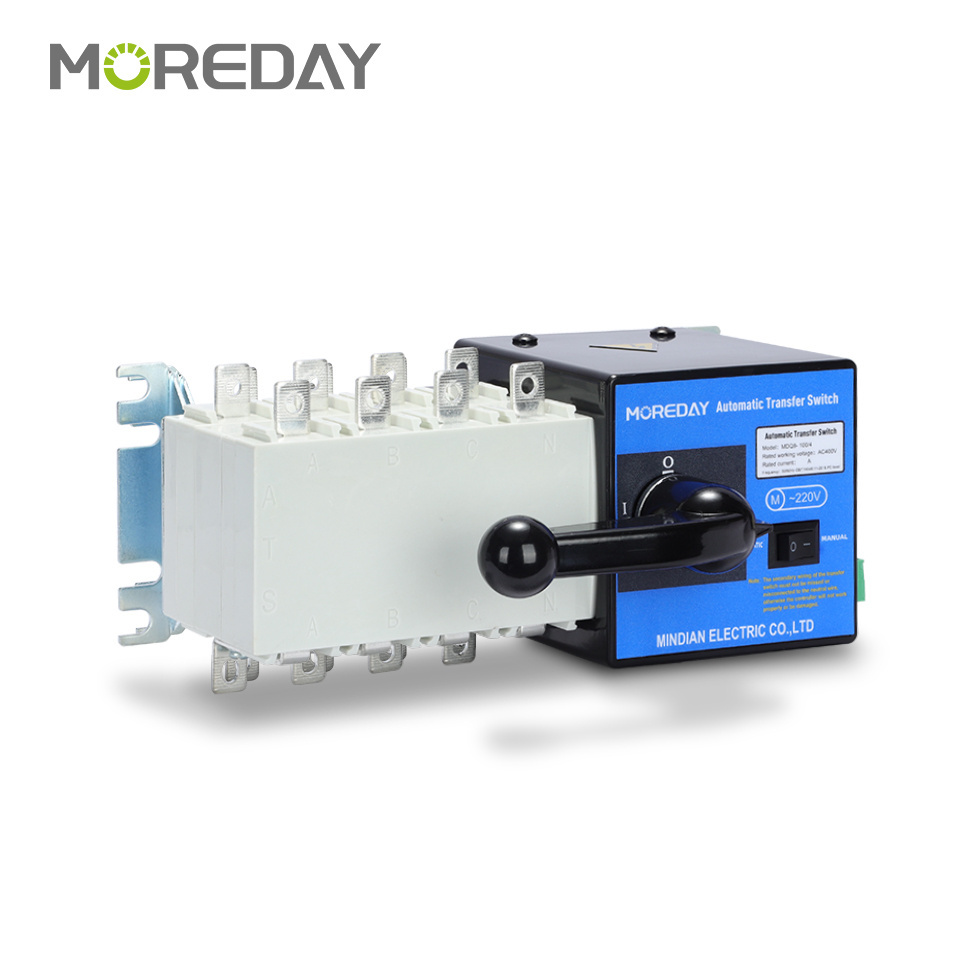

Automatic Manual Transfer Switch Changeover Switch for Distribution Power System
|
Conventional thermal current lth A
|
|
|
400-630A
|
|
|||
|
Rated current ln(A)
|
|
|
400A
|
630A
|
|||
|
Rated impulse withstand voltage Ui(A)
|
|
|
500
|
500
|
|||
|
Dielectric strength(V)
|
|
|
8000
|
8000
|
|||
|
Rated surge-resistant voltage Uimp kV(installed category IV)
|
|
|
12
|
12
|
|||
|
Rated Working current le(A) |
380A |
AC-31
|
400
|
630
|
|||
|
|
|
AC-33
|
340
|
536
|
|||
|
|
|
AC-35
|
400
|
630
|
|||
|
|
220A |
DC-31
|
400
|
630
|
|||
|
|
|
DC-33
|
315
|
500
|
|||
|
|
|
DC-35
|
400
|
500
|
|||
|
Motor power P(380V)kW
|
|
|
220
|
280
|
|||
|
Rated short-time withstand current(kA Rms)0.1S/1S
|
|
|
40/20
|
50/25
|
|||
|
Rated breaking capbility(A Rms)AC33 380V
|
|
|
3200
|
3200
|
|||
|
Rated making capability(A Rms)AC33 380V
|
|
|
4000
|
4000
|
|||
|
Rated short-current making capability lcm(kA peak value)
|
|
|
30
|
30
|
|||
|
Mechanical durability(number of cyclic operation)
|
|
|
5500
|
5500
|
|||
|
Electric durability
|
|
COSφ=0.65 AC33
|
500
|
500
|
|||
|
Change-oner time
|
|
I-0-II or II-0-I (s)
|
1.2
|
1.2
|
|||
|
|
|
I-0 or II-0 (s)
|
0.8
|
0.8
|
|||
|
Power wer consumption of electrical control
|
|
24V(DC)(w)
|
90
|
90
|
|||
|
Moment of operation(Nm)
|
|
|
45
|
45
|
|||
