Quick Details
-
Brand Name:
-
GDZX
-
Model Number:
-
ZX-602
-
Product name:
-
Handheld Messages Analyzer
-
USB interface:
-
1pc,USB storage device
-
Power supply:
-
4.2V,3.0A
-
Battery:
-
Li-On rechargeable,11000mAh
-
Endurance time:
-
> 6 hours
-
Fast departure time:
-
<10μs
-
Screen:
-
5.7',Capacitive screen, multi touch
-
Electric Ethernet port:
-
1pc,RJ-45,100Mbits/s
-
Weight:
-
<1Kg
-
Volume:
-
250mm*140mm*44mm
Quick Details
-
Warranty:
-
1 Year
-
Power:
-
Electronic
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
GDZX
-
Model Number:
-
ZX-602
-
Product name:
-
Handheld Messages Analyzer
-
USB interface:
-
1pc,USB storage device
-
Power supply:
-
4.2V,3.0A
-
Battery:
-
Li-On rechargeable,11000mAh
-
Endurance time:
-
> 6 hours
-
Fast departure time:
-
<10μs
-
Screen:
-
5.7',Capacitive screen, multi touch
-
Electric Ethernet port:
-
1pc,RJ-45,100Mbits/s
-
Weight:
-
<1Kg
-
Volume:
-
250mm*140mm*44mm

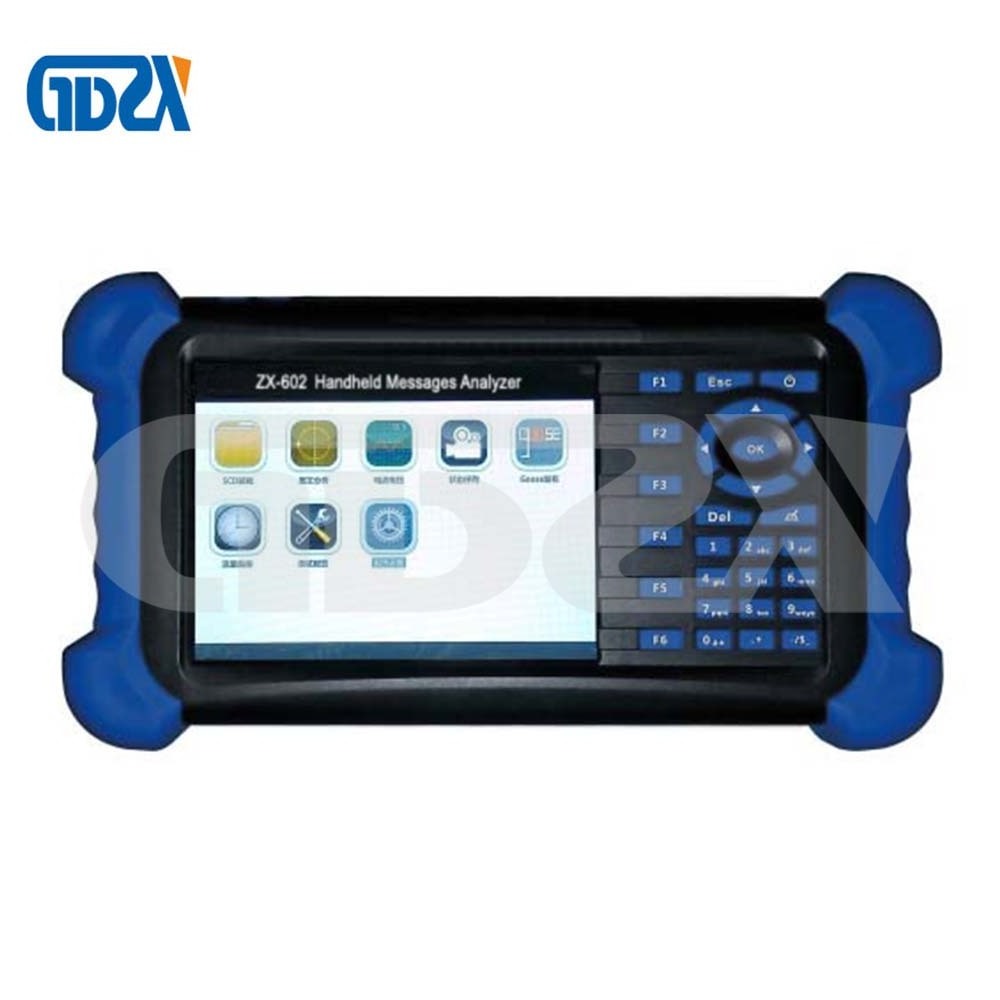

Handheld High Accuracy Optical Digital Messages Analyzer
ZX-602 Handheld Messages Analyzer can be used for fast test of protection devices, intelligent terminals, merging units and transducers. It is multi-functional with high precision and is essential equipment for installation, debugging, and maintenance of intelligent substation.
1. Capacitive mul-touch panel (5.7”), built in 11000mAh rechargeable li-battery, the continuous voyage ability over 6 hours
2. With 3 pairs optical Ethernet interface, 1 pair optical serial interface, 1 IRIG-B/PPS synchronous interface, support single-mode fiber connection
3. G-net interface for optical Ethernet interface, 100/1000Mbits/s self-adaptive
4. 2 channel hard switching input contact and 4 channel hard switching output contact, for intelligent terminal response testing
5. Support connection with USB storage device, for data import/export
6. Support IEC61850-9-1/2/LE,Goose,IEC60044-7/8 FT3,MMS,STNP,GRMP,IEEE-1588,IRIG-B,PPS,SCL standards.
7. Multi-functional, can test bay level, process level protection device, merging unit, intelligent terminal, mutual inducors.
8. Graph demonstration of various electrical parameters, direct result reading
9. A9+FPGA dual-core IPC performance, fast operation speed, message sending dispersion <0.1us, receiving time error <25ns
10. Small and portable, simple to use
|
Technical parameters |
||
|
Optical fiber Ethernet port |
3pairs*100/1000Mbits/s,adaptive,LC, multimode,310nm;IEC61850-9-1/2/LE,Goose,IEEE-1588;With optical power measurement; |
Transmission dispersion:<0.1μs
|
|
Optical fiber serial port |
1 pair*(2-10Mbits / s), LC, multimode, 850nm; IEC60044-7/8,FT3;Support man code or asynchronous serial port transmission mode; |
Transmission dispersion:<0.1μs
|
|
Synchronous interface |
1 pair*IRIG-B/PPS optical port, LC, multimode, 850nm |
Accuracy:<400ns |
|
Hard input |
2 pairs,10-250VDC or empty contact, automatic identification, no polarity |
|
|
Hard out |
2 pairs, empty contact / quick opening, AC/DC breaking capacity:0.5A,250 |
Fast departure time:<10μs |
|
Electric Ethernet port |
1pc,RJ-45,100Mbits/s |
|
|
USB interface |
1pc,USB storage device |
|
|
Screen |
5.7’,Capacitive screen, multi touch |
|
|
Power supply |
4.2V,3.0A |
|
|
Battery |
Li-On rechargeable,11000mAh |
Endurance time: > 6 hours |
|
Volume |
250mm*140mm*44mm |
Weight:<1Kg |
