Quick Details
-
Brand Name:
-
LingShi
-
Use:
-
data transmission
-
Warranty Time:
-
3 years, 3 years
-
Product name:
-
PoE Switch
-
Power supply:
-
450 W
-
Connector:
-
SFP
-
Ports:
-
24 Ports
-
Certification:
-
RoHS
-
Application:
-
data transmission
-
Fiber Type:
-
Single Fiber Single Mode
-
Compatible:
-
Fiberhome Olt
Quick Details
-
Type:
-
FTTx Solutions
-
Model Number:
-
LS-DS2404A-G2
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LingShi
-
Use:
-
data transmission
-
Warranty Time:
-
3 years, 3 years
-
Product name:
-
PoE Switch
-
Power supply:
-
450 W
-
Connector:
-
SFP
-
Ports:
-
24 Ports
-
Certification:
-
RoHS
-
Application:
-
data transmission
-
Fiber Type:
-
Single Fiber Single Mode
-
Compatible:
-
Fiberhome Olt

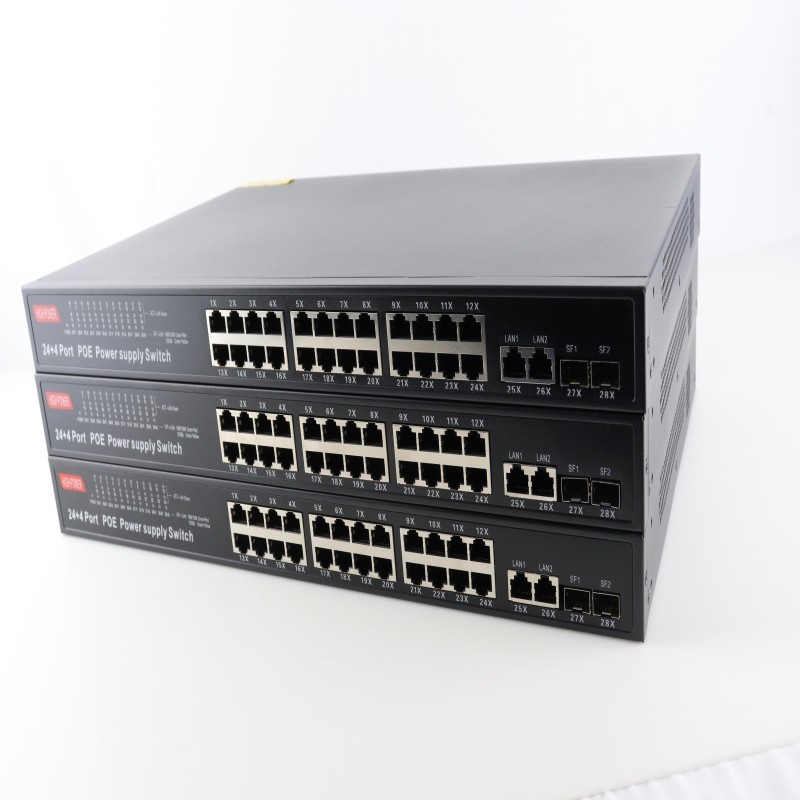

High Quality Home Appliance Rj45 1000m Media Converter Managed Industrial Ethernet Poe Switch 24 Port
The DS2404A-G2 is a high-performance, low-power Gigabit Ethernet switch that is the premier choice for medium and small LANs. It provides 24 10/100/1000Mbps ports, plus two 10M/100M/1000Mbps RJ45 ports and two 1000Mbps SFP ports, which can be used to connect upstream devices with higher bandwidth. Store-and-forward technology ensures efficient bandwidth allocation to each port. Full wire-speed Gigabit connectivity to workgroups or servers for easy plug-and-play.
With this flexible, non-blocking architecture, user usage can be unrestricted by bandwidth and media networks. The switch supports half-duplex and full-duplex operation modes, each switch port supports adaptive function, the port adopts store-and-forward mode, the product has superior performance, easy to use, convenient and intuitive, providing an ideal networking solution for workgroup users or small LAN.
* Supports IEEE 802.1Q VLANs
* Full-duplex and half-duplex operation with IEEE 802.3X flow control and backpressure
* Supports 9216 byte jumbo packet length forwarding at wire speeds
* Supports 96 ingress ACL rules
* Support 4K MAC address
* Supports 16K-byte EEPROM configuration.
* Supports IEEE 802.1ad stacked VLANs.
* Support IVL, SVL, and IVL/SVL
* Supports IEEE 802.1x access control protocol.
* Support IEEE 802.3az EEE (Energy-Efficient Ethernet)
* Supports 25M clock, RFC MIB counter
|
Chip Solutions |
RTL8382L+2*RTL8218D+8214FC+3*JW5858 |
|
|
Standards/Protocols |
IEEE 802.1Q , IEEE 802.1x , IEEE 802.3ad, IEEE 802.3af/at |
|
|
Network Media |
10BASE-T: Unshielded Category 3, 4, 5 twisted pair (max. 100m) 100BASE-TX/100BASE-T: Unshielded Category 5, Ultra Category 5 or above twisted pair (max. 100m) 1000BASE-TX/1000BASE-T: Super Category 6 or above twisted pair (max. 100m) |
|
|
Interfaces |
24 x 10/100/1000M RJ45 ports (Auto Negotiation/Auto MDI/MDIX) 2 x 10/100/1000M RJ45 ports (Auto Negotiation/Auto MDI/MDIX) 2 x 1000M SFP ports |
|
|
Forwarding Mode |
store-and-forward (computing) |
|
|
Switching Capacity |
52 Gbps |
|
|
Packet Forwarding Rate |
40.544 Mpps |
|
|
Packet Cache |
4.1 Mbits |
|
|
Jumbo frames |
10000 -byte |
|
|
Indicator Lights |
Machine |
Power.System (Power:red) The indicator state is: always on when the load is connected. |
|
|
Port |
Link/Activity (Link/Act:Green) Indicator status when signal is connected: Blinking |
|
Power Supply |
Built-in AC:100-240V 50/60Hz DC:52V ， 450W |
|
|
Power Supply Pins |
1/2 （ + ）， 3/6 （ - ） (POE ports only) |
|
|
POE Port Output Power |
Single port output max. 30W |
|
|
Speed Limit Function |
10M speed limit switchable via toggle switch, transmission distance up to 250 meters |
|
|
Static power consumption |
Maximum ： 3.396W （ 220V/50Hz ） |
|
|
Housing System |
Housing Material ： Standard Hardware Enclosure |
|
|
|
Dimensions (L×W×H) 440*200*45mm Customized Service Operating System |
|
This product is a universal POE switch for network cameras. With small size, high efficiency, stable work, Transmission distance and other characteristics. Overload protection, output short circuit protection and other functions.
The contents of this specification comply with the requirements of the EU RoHS 10 Directives, and the contents of hazardous substances comply with the following standards:
|
Restricted substances |
Limit standard PPM (mg/kg) |
|
Lead (Pb) |
1000 |
|
Cadmium (Cd) |
100 |
|
Mercury (Hg) |
1000 |
|
Hexavalent chromium (Cr6+) |
1000 |
|
Polybrominated biphenyls (PBBs) |
1000 |
|
Polybrominated diphenyl ethers (PBDEs) |
1000 |
|
Di(2-ethylhexyl) phthalate (DEHP) |
1000 |
|
Tolyl butyl phthalate (BBP) |
1000 |
|
Dibutyl phthalate (DBP) |
1000 |
|
Diisobutyl phthalate (DIBP) |
1000 |
Note: The above table is the requirements of the EU RoHS Directive, if the customer's requirements are stricter than the EU standard will be based on the customer's standard.
