Quick Details
-
Resolution:
-
4K2K@60Hz YUV 4:4:4
-
Input Ports:
-
4 HDMI, 4 USB host
-
Output Ports:
-
1 HDMI, 2 KVM USB, 2 USB2.0
-
HDCP compliance:
-
HDCP1.4/2.2
Quick Details
-
Model Number:
-
LM-KVM401C
-
Brand Name:
-
LINK-MI
-
Place of Origin:
-
Guangdong, China
-
Resolution:
-
4K2K@60Hz YUV 4:4:4
-
Input Ports:
-
4 HDMI, 4 USB host
-
Output Ports:
-
1 HDMI, 2 KVM USB, 2 USB2.0
-
HDCP compliance:
-
HDCP1.4/2.2

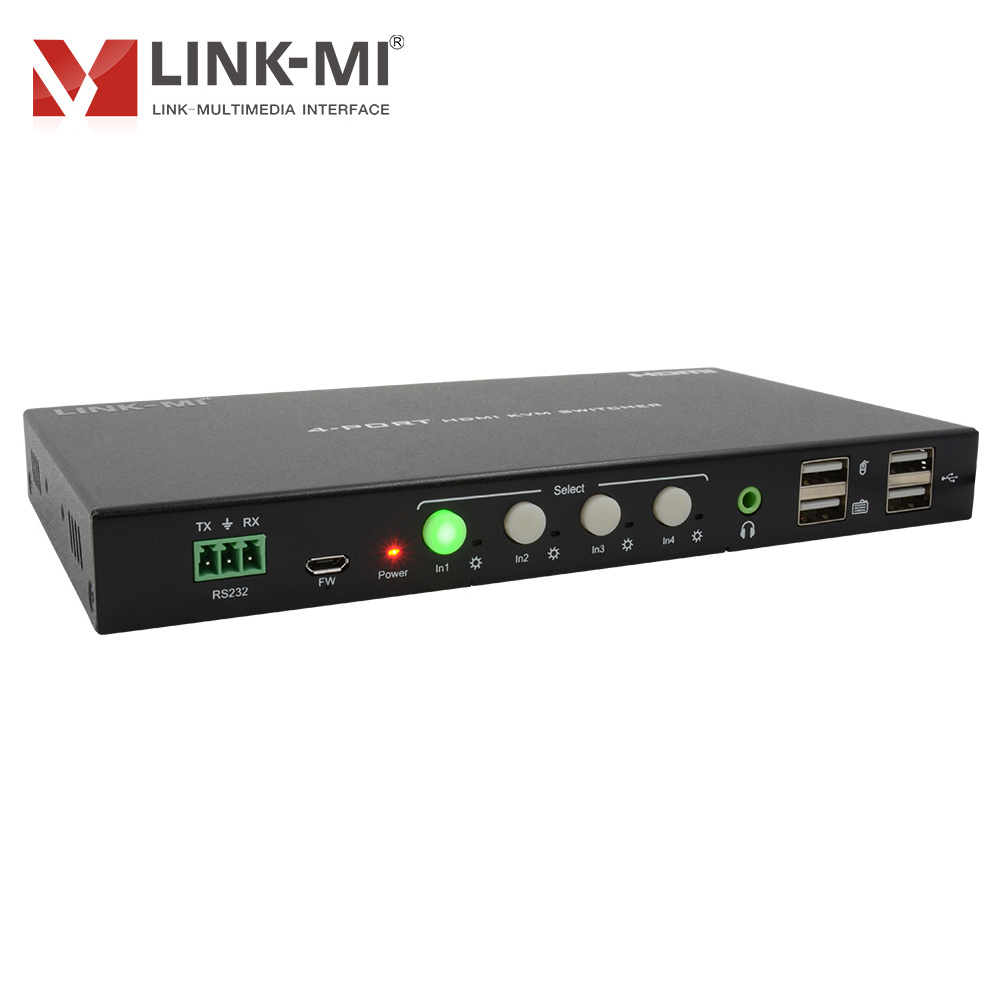

LINK-MI LM-KVM401C The device supports switching four computer's HDMI video and USB signals to one monitor and USB signals' device. Apply to bank, transportation, education, home, conference, hotel, etc.
1. Computer: HDMI input maximum support 4K2K60Hz RGB4:4:4, 8 Bit with Downscale
2. Display: HDMI input maximum support 4K2K60Hz YUV 4:4:4, 8 Bit
3. Supports HDCP2.2 and HDCP1.4;
4. The Four USB-TYPE B interface pass through four USB interface to the corresponding host of HDMI signal channel.
5. Support analog audio extraction, uncompressed audio PCM.
6. Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream, and HD Bitstream
7. Operating system support WindowsXP/WIN7/WIN10/Apple/Ubuntu,etc
8. Support hot plug, connect or disconnect devices to the KVM switch in any time and without turn off devices.
9. Support auto switching (monitor the devices in a specified time interval.)
10. Support keyboard's hot keys to control the KVM switch.
11. Available to use keyboard and mouse without any delay after switching the host devices.
12. With mounting ears
1) 1x HDMI KVM switch
2) 1x 12VDC Power Supply
3) 1x Operating Instructions
4) 2x Mounting ears
