Quick Details
-
Wavelength:
-
635
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HANWON
-
Model Number:
-
HWR211
-
Level system:
-
Electronic sensor fast leveling
-
Working range(radius):
-
500m with detector(Diameter)
-
Power supply:
-
DC 4. 8-6V (4*sub-C NI-MH battery)
-
Continuous working hrs:
-
20 hours
-
Working temperature:
-
-10℃-45℃
-
Waterproof and dustproof:
-
IP 55
-
Four scan widths:
-
10°; 45°; 90°; 180°
-
Five head speeds:
-
0; 60; 120; 300; 600 R.P.M
-
Dimension:
-
160(L) X 160(W)X 185(H)mm
-
Weight:
-
3kg
-
Certification:
-
CE
Quick Details
-
Warranty:
-
1 year
-
Size:
-
Customerized
-
Precision:
-
20 arc seconds(+/-1mm/10m)
-
Wavelength:
-
635
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HANWON
-
Model Number:
-
HWR211
-
Level system:
-
Electronic sensor fast leveling
-
Working range(radius):
-
500m with detector(Diameter)
-
Power supply:
-
DC 4. 8-6V (4*sub-C NI-MH battery)
-
Continuous working hrs:
-
20 hours
-
Working temperature:
-
-10℃-45℃
-
Waterproof and dustproof:
-
IP 55
-
Four scan widths:
-
10°; 45°; 90°; 180°
-
Five head speeds:
-
0; 60; 120; 300; 600 R.P.M
-
Dimension:
-
160(L) X 160(W)X 185(H)mm
-
Weight:
-
3kg
-
Certification:
-
CE
Professional farm land grader agricultural high precision laser land leveling
Product details

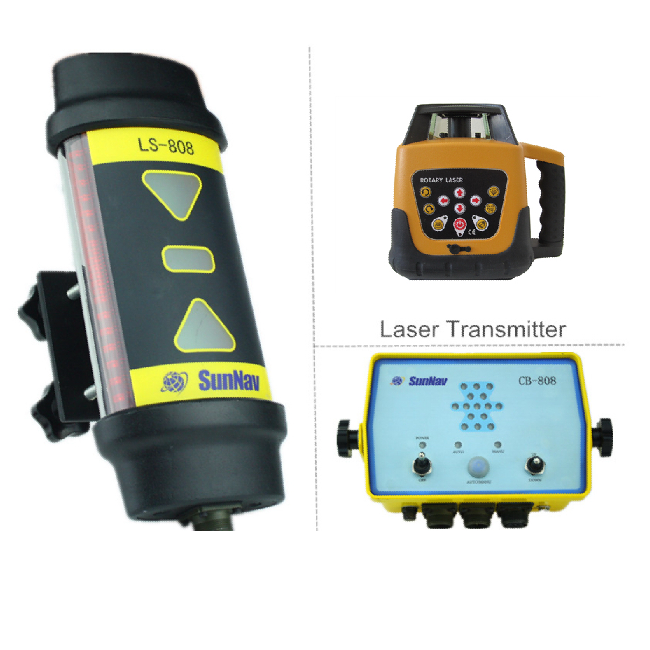

Laser transmitter HW203
| Level system | Electronic sensor fast leveling |
| Working range(radius) | 500m with detector(Diameter) |
| Power supply | DC 4. 8-6V (4*sub-C NI-MH battery) |
| Continuous working hrs | 20 hours |
| Working temperature | -10℃-45℃ |
| Waterproof and dustproof | IP 55 |
| Four scan widths | 10°; 45°; 90°; 180° |
| Five head speeds | 0; 60; 120; 300; 600 R.P.M |
| Dimension | 160(L) X 160(W)X 185(H)mm |
| Weight | 3kg |
Remote Controller CB-808+ / CB-818
1. Single laser-base system, the setting up and operation is very simple
2. The controller is designed for vehicle-mounted, easy to install or uninstall
3. Double LED Indicator light (CB-808)
4. LCD display screen for displaying of real time altitude difference (CB-808+ & CB-818)
5. The function of GPS positioning & GSM communication is optional
6. The tracking working trajectory, auto area calculating
and remote controlling can be made after the data was uploaded to server (optional function)
7. Double laser receiver is supported and making grading more precisely and efficiently
Laser Receiver LS-808
1. Compatible with CB-808, CB-808P and CB-818
2. Optional 3 or 4 feet electric mast capability
3. High light LED, clearly visible
4. Rugged design, 100% waterproof
Cables
1. Heavy-duty connectors, military-grade
2. Chemically and mechanically resistant cables
3. Coiled cables for detectors
