BT40 TC312 TC820 TC1430 Quick Change Tapping Chuck with Length Compensation

BT40 TC312 TC820 TC1430 Quick Change Tapping Chuck with Length Compensation

FOB Reference Price: Get Latest Price

≥1 Sets

US $30

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: ZH

Core Components:: tapping chuck

Products name:: Wide range J45 Tapping Heads dxa Tapping Collets

Tapping shank:: BT40 SK40 NT40 MT4

Taping range:: M3-M12 M5-M20 M11-M36

Package:: Carton, wooden box

Brand name:: XZH

MOQ:: 1 set

Application:: drill,lathe,boring machine,milling machine,cnc machine

Model Type:: J45 tapping chuck and tapping collet

Lead time:: 5-10 days

Tapping collet diameter:: 19mm 31mm 48mm

Quick Details

Place of Origin:: shandong,china

Weight (KG):: 3

Marketing Type:: Hot Product 2023

Brand Name:: ZH

Core Components:: tapping chuck

Products name:: Wide range J45 Tapping Heads dxa Tapping Collets

Tapping shank:: BT40 SK40 NT40 MT4

Taping range:: M3-M12 M5-M20 M11-M36

Package:: Carton, wooden box

Brand name:: XZH

MOQ:: 1 set

Application:: drill,lathe,boring machine,milling machine,cnc machine

Model Type:: J45 tapping chuck and tapping collet

Lead time:: 5-10 days

Tapping collet diameter:: 19mm 31mm 48mm

Product Paramenters

Product	J45 GT24 gt12 d31 d19 tapping collet chuck tool holder set BT40 TC312 TC820 TC1430 Quick Change Tapping Chuck with Length Compensation
Lead time	10-15 days

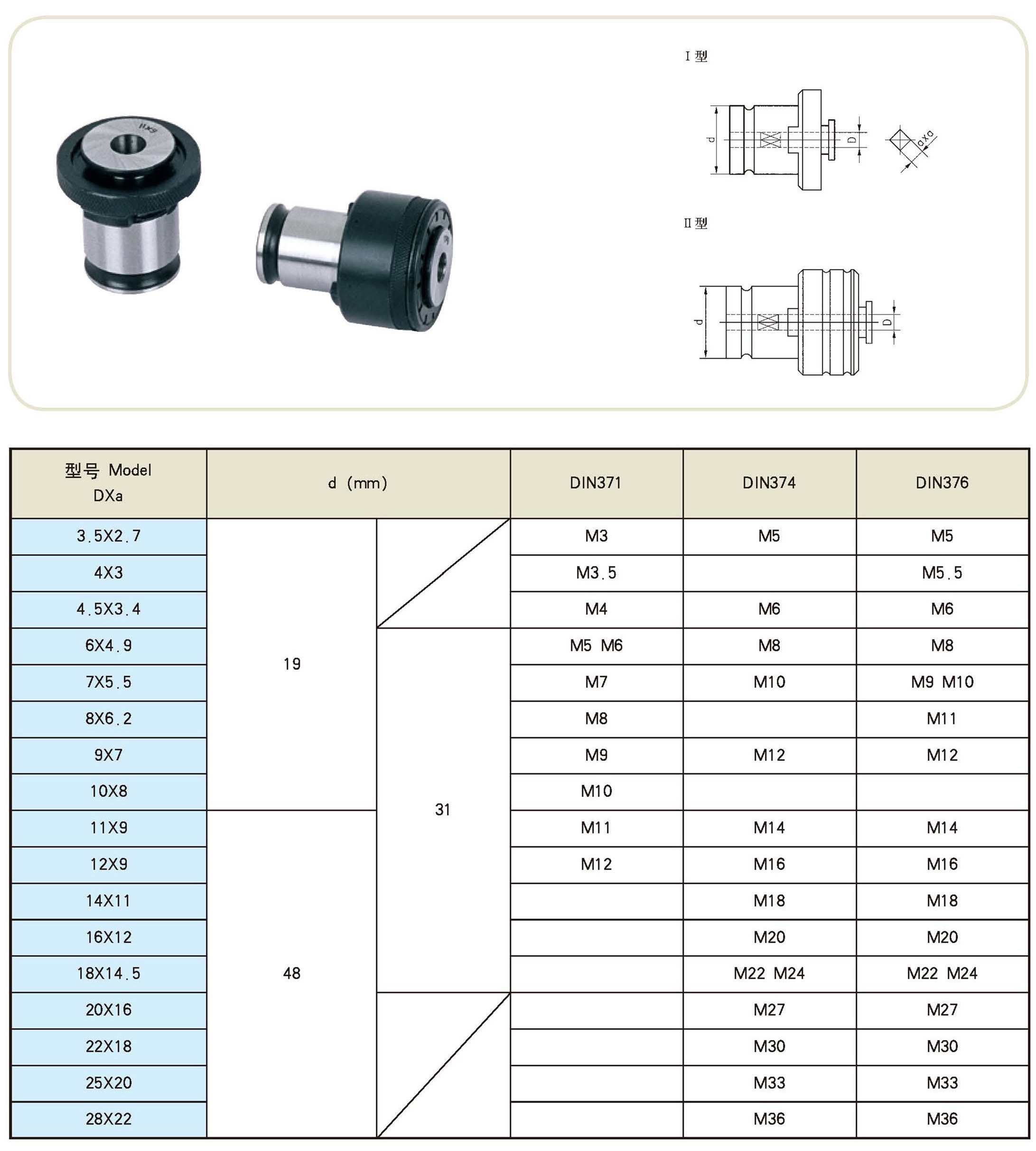

Tap Size Dxa(square x diameter)	d(mm)
3.5x2.7	19
4x3
4.5x3.4
6x4.9		31
7x5.5
8x6.2
9x7
10x8
11x9	48
12x9
14x11
16x12
18x14.5
20x16
22x18
25x20
28x22

Products Description

This device is consisted of a tapping chuck and several tap collets. The chuck has compensating device for thread pitch. Collet chuck has overload torque protection device, which avoid tap breaking.

In order to get the different release torques for different diameter taps, just adjust nuts.

This device is most applicable to tap working on drill, lathe, boring machine, milling machine and CNC machine center and so on.

J45 tapping shank: BT40-GT12
