Quick Details
-
Mold Height(mm):
-
100 - 120 mm
-
Ejector Stroke(mm):
-
165 mm
-
Ejector Force(kN):
-
62 kN
-
Theoretical Shot Volume(cm³):
-
805 cm³
-
Injection Rate (g/s):
-
273.5 g/s
-
Injection Weight (g):
-
733 g
-
Screw Speed (rpm):
-
1800 - 2000 rpm
-
Screw diameter (mm):
-
55 mm
-
Screw L/D Ratio:
-
23.1
-
Weight (KG):
-
6600 kg
-
Place of Origin:
-
Zhejiang, China
-
Open Stroke(mm):
-
610 mm
-
Model Number:
-
SMT-1020 258T
-
Brand Name:
-
Smartell
-
Power (kW):
-
33 kW
-
Machine Advantage:
-
Powerful function and fast response
-
Material:
-
stainless steel
-
pump pressure:
-
16Mpa
-
HEATING POWER:
-
16kW
-
Motor Power:
-
18.5KW
-
Voltage:
-
380V
-
Product name:
-
Plastic Injection Moulding Machine
-
Machine Dimension:
-
5.7*1.4*2.3
-
Automatic:
-
yes
-
Plastic injection moulding machine:
-
Horizental
-
Marketing Type:
-
Ordinary Product
Quick Details
-
Distance between Tie Bars(Width)(mm):
-
610mm
-
Distance between Tie Bars(Height)(mm):
-
610mm
-
Plasticizing Capacity(g/s):
-
500
-
Mold Height(mm):
-
100 - 120 mm
-
Ejector Stroke(mm):
-
165 mm
-
Ejector Force(kN):
-
62 kN
-
Theoretical Shot Volume(cm³):
-
805 cm³
-
Injection Rate (g/s):
-
273.5 g/s
-
Injection Weight (g):
-
733 g
-
Screw Speed (rpm):
-
1800 - 2000 rpm
-
Screw diameter (mm):
-
55 mm
-
Screw L/D Ratio:
-
23.1
-
Weight (KG):
-
6600 kg
-
Place of Origin:
-
Zhejiang, China
-
Open Stroke(mm):
-
610 mm
-
Model Number:
-
SMT-1020 258T
-
Brand Name:
-
Smartell
-
Power (kW):
-
33 kW
-
Machine Advantage:
-
Powerful function and fast response
-
Material:
-
stainless steel
-
pump pressure:
-
16Mpa
-
HEATING POWER:
-
16kW
-
Motor Power:
-
18.5KW
-
Voltage:
-
380V
-
Product name:
-
Plastic Injection Moulding Machine
-
Machine Dimension:
-
5.7*1.4*2.3
-
Automatic:
-
yes
-
Plastic injection moulding machine:
-
Horizental
-
Marketing Type:
-
Ordinary Product

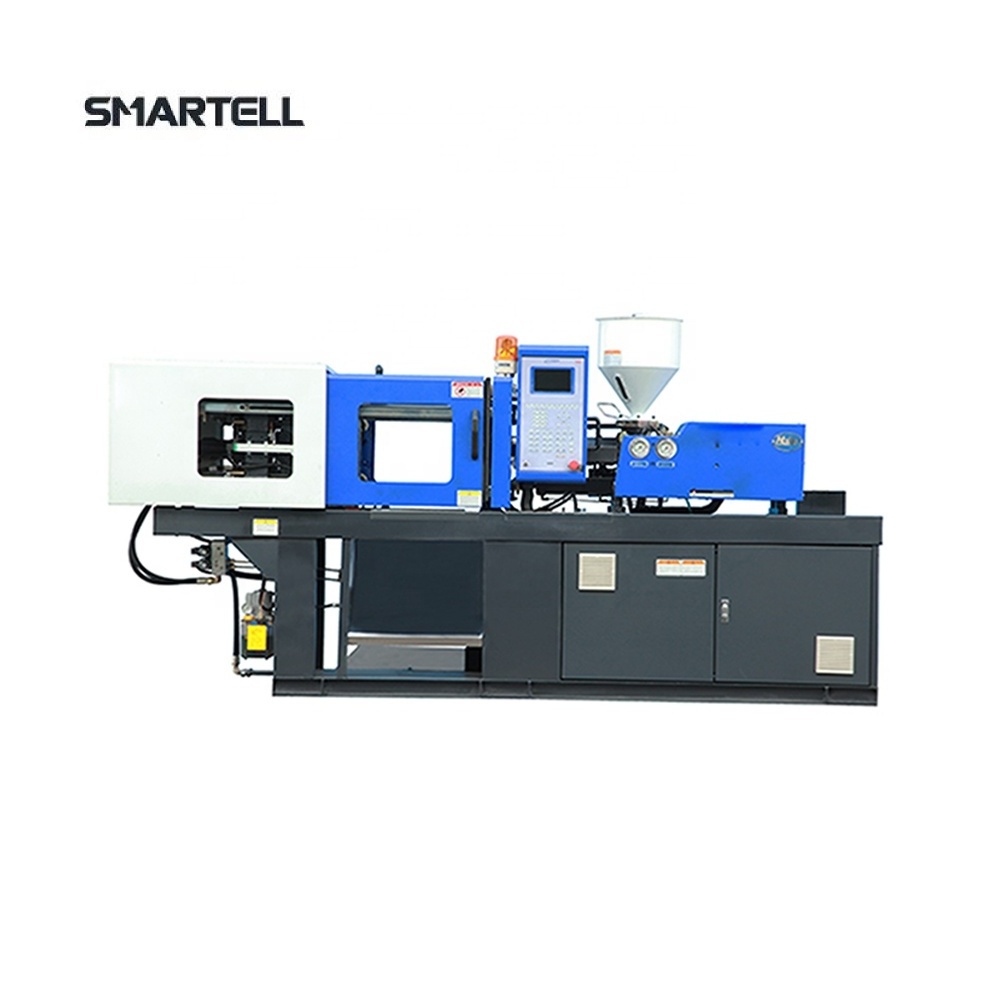

Benchtop Mini Pet Preform Injection Molding Machine
Consist of plasticizing system, injection system, the clamping system and transmission system of plastic injection molding equipment. Our company use die casting technologies applied to injection molding machines for many years.
In mechanical, hydraulic, electric control, etc for comprehensive improvement, perfect combination of dynamic pressure casting and speed.
Advantage:
1. Clamping Unit
Reliable 5-pint twin-toggle locking mechanism; Platens are designed under Finite Element Analysis; High speed clamping is stable while low pressure protection is accurate; Automatic lubrication system; Oil shortage alarm; Ejector stroke precisely controlled by transducer; Plenty of ejector modes for you to choose.
2. Injection Unit
Double-cylinder balance injection system; Shot weight is precisely controlled by transducer;
Using hydraulic motor to carry out variable speed.
3. Hydraulic Unit
Domestic high-tech divided hydraulic system; Hydraulic safety device; Imported high quality
hydraulic components are applied.
4. Electric Unit
Special controller for plastic injection molding machine; All the main components are imported from famous company, for example: TE(France), Gefran(Italy),etc.
Technical Specification:
|
ITEM |
UNIT |
DATA |
|||
|
Injection
|
Screw Diameter |
mm |
45 |
50 |
55 |
|
|
Screw L/D Ratio |
L/D |
23.1 |
20 .6 |
18.7 |
|
|
Injection Volume |
cm 3 |
251 |
318 |
362 |
|
|
Shot Weight |
g |
229 |
289 |
329 |
|
|
Injection Pressure |
Mpa |
202 |
159 |
140 |
|
Clamping
|
Clamping Force |
KN |
2080 |
||
|
|
Opening Stroke |
mm |
475 |
||
|
|
Mould Thickness(Min-Max) |
mm |
180-500 |
||
|
|
Space Between Tie-Bars |
mm |
455×455 |
||
|
|
Ejector Force |
KN |
45 |
||
|
|
Ejector Stroke |
mm |
165 |
||
|
General |
Motor Power |
KW |
18.5 |
||
|
|
Heater |
KW |
16 |
||
|
|
Pump Pressure |
Mpa |
16 |
||
|
|
Machine Dimension |
m |
5.7×1. 4 ×2 .3 |
||
|
|
Machine Weight |
T |
6.6 |
||
|
|
Mould Orientation Ring Diameter |
mm |
Φ125 |
||
|
|
Nozzle Radius |
mm |
SR15 |
||
