Working voltage: 250V(380V)
Working current: 16A(8A)
Working temperature: 0-80
℃
Mechanical life: 5x100000 times
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
LF181
-
Operating Temperature:
-
0 ℃ ~80 ℃
-
Max. Current:
-
16A
-
Name:
-
Float Switch
-
Rated voltage::
-
250V
-
Working temperature::
-
0℃~80℃
-
Rated current::
-
2A
-
Electrical life::
-
1*100000 times
-
Mechanical life::
-
5*100000 times
-
High and low water level difference::
-
≥0.2 meters
-
Lead length::
-
5 M
-
Certification:
-
ce
Quick Details
-
Max. Voltage:
-
250V
-
Place of Origin:
-
China
-
Brand Name:
-
TOPEAST
-
Model Number:
-
LF181
-
Operating Temperature:
-
0 ℃ ~80 ℃
-
Max. Current:
-
16A
-
Name:
-
Float Switch
-
Rated voltage::
-
250V
-
Working temperature::
-
0℃~80℃
-
Rated current::
-
2A
-
Electrical life::
-
1*100000 times
-
Mechanical life::
-
5*100000 times
-
High and low water level difference::
-
≥0.2 meters
-
Lead length::
-
5 M
-
Certification:
-
ce
Product Description

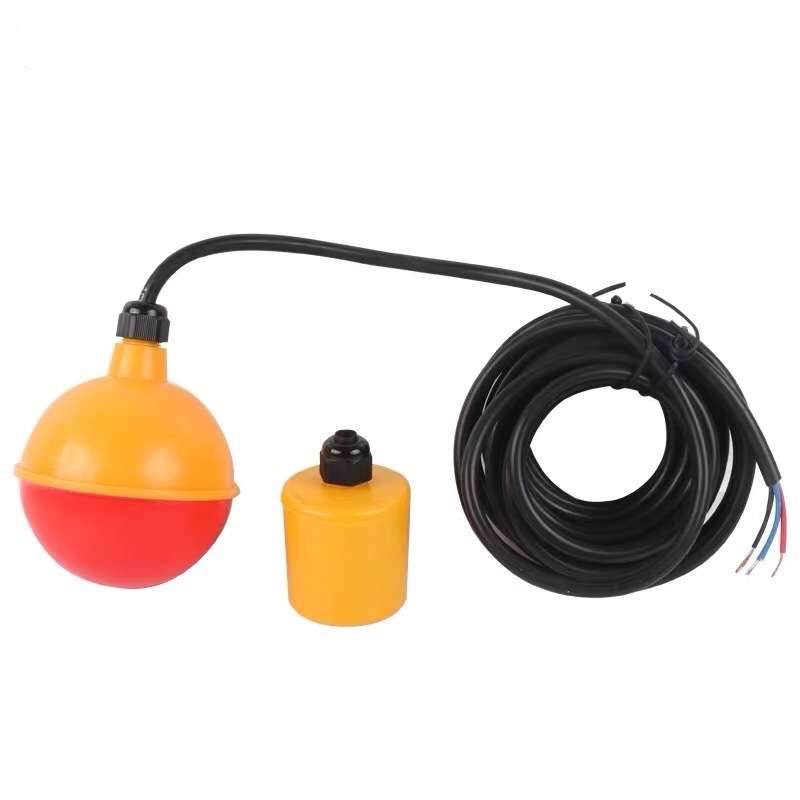

Newest Plastic Automatic Mercury Liquid Level Switch,Electrical Water Tank Pump Float Switch
|
|
Direction for use
使用说明
-
Description of application effect
Water supply system
Use brown and blue wires
When the float ball is at the lower water level, the contact is in the state of being on
When the float ball is at the upper water level, the contact is disconnected
The drainage system
Use brown and blue wires
When the float ball is at the upper water level, the contact is in the state of being on
When the float ball is at the lower water level, the contact is disconnected
Use brown and blue wires
When the float ball is at the lower water level, the contact is in the state of being on
When the float ball is at the upper water level, the contact is disconnected
The drainage system
Use brown and blue wires
When the float ball is at the upper water level, the contact is in the state of being on
When the float ball is at the lower water level, the contact is disconnected
