Quick Details
-
Product name:
-
Surge Protective Device
-
Model:
-
SNSPD-PV
-
Application:
-
Power System
-
Certificate:
-
CE TUV
-
Discharge current:
-
20-40ka
-
Color:
-
Orange
-
Packing:
-
Hard Carton Box
-
Warranty:
-
2 Years
-
OEM/ODM:
-
Available
-
Quality:
-
Top Stndard
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SUNNOM
-
Model Number:
-
SNSPD-PV
-
Product name:
-
Surge Protective Device
-
Model:
-
SNSPD-PV
-
Application:
-
Power System
-
Certificate:
-
CE TUV
-
Discharge current:
-
20-40ka
-
Color:
-
Orange
-
Packing:
-
Hard Carton Box
-
Warranty:
-
2 Years
-
OEM/ODM:
-
Available
-
Quality:
-
Top Stndard
Product Description
Application
SNSPD-PV/500V/1000V/1500V series surge protector is suitable for the new energy solar power generation system with the working voltage of
500V/1000V/1500V
.The installation position is in the total power supply system of direct current circuit, to protect the indirect lightning current, direct lightning current or other instantaneous overvoltage.
Specification
|
Product model
|
SNSPD-PV/500
|
SNSPD-PV/1000
|
SNSPD-PV/1500
|
||
|
Maximum continuous operating voltage Uc
|
500V
|
1000V
|
1500V
|
||
|
Pole
|
2P,3P
|
2P,3P
|
2P,3P
|
||
|
Voltage protection level Up
|
<3.2kV
|
<3.2kV
|
<5.0kV
|
||
|
Nominal discharge current In(8/20μs)
|
20kA
|
20kA
|
20kA
|
||
|
Maximum discharge current Imax(8/20μs)
|
40kA
|
40kA
|
40kA
|
||
|
Classified test
|
II
|
|
|
||
|
Sheathing material
|
Fire-retardant reinforced nylon
|
|
|
||
|
Electrical life
|
More than 8000times
|
|
|
||
|
Mechanical life
|
More than 2000times
|
|
|
||
|
Flexible wiring capacity(mm²)
|
4~16
|
4~16
|
|
||
|
Protection grade
|
IP20
|
|
|
||
|
How to Install
|
35MM DIN RAIL
|
|
|
||
|
Normal working temperature
|
-40℃~80℃
|
|
|
||

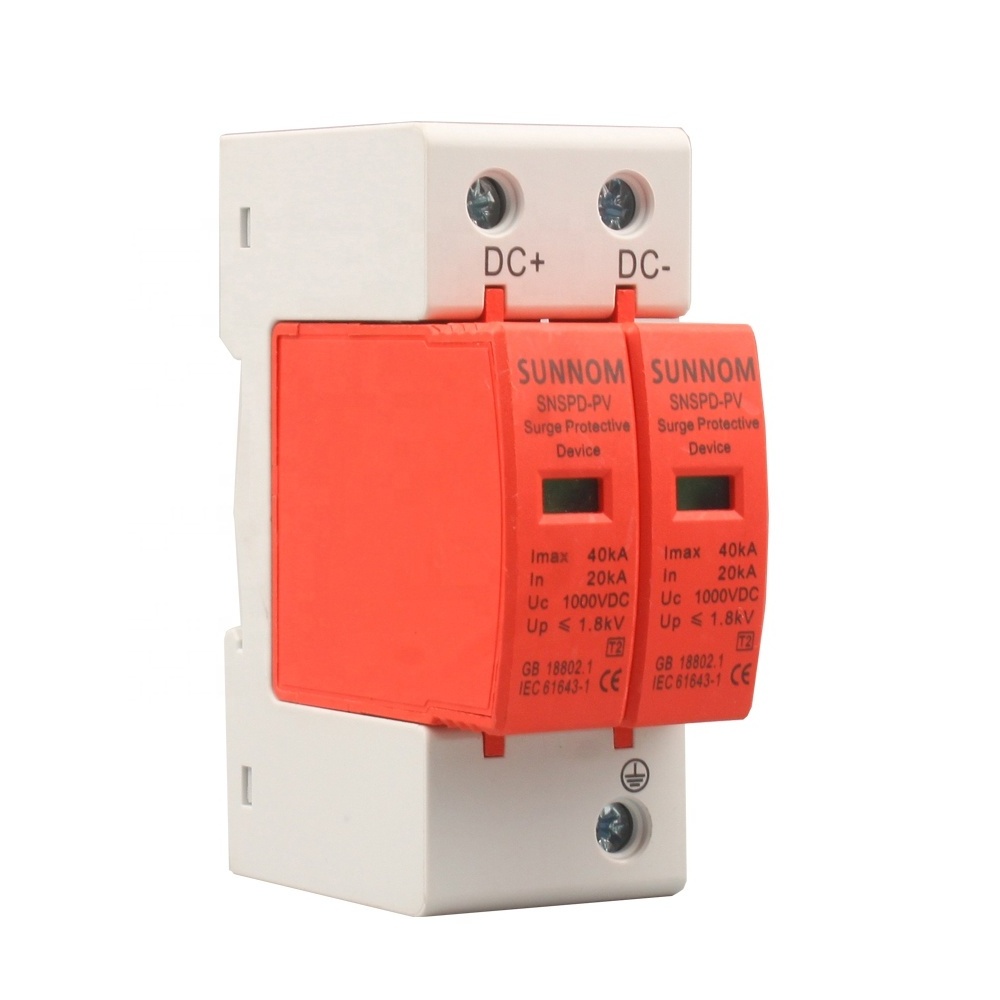

Details Images
