Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Lindu Optics
-
Model Number:
-
LDNVG33
-
Weight:
-
460g (without battery)
-
Effective Visual Distance:
-
0.25m to infinity
-
Name:
-
Night Vision Goggles
-
FOV:
-
40 Degree
-
Optical Aperture:
-
F 1.18 25mm
-
Optical MTF:
-
120 LP/mm
-
Optical distortion:
-
0.5% Max
-
Focus Mode:
-
Manual focus facility
-
IPD (interpupillary distances) range:
-
50-85mm
-
Relative illuminance:
-
>75%
-
Eye relief:
-
25-40mm
-
Waterproof:
-
IP65(IP67 Optional)
-
Operating Voltage:
-
2.6-4.2V
Quick Details
-
Size:
-
110x103x83 (close) 110x175x46(open)
-
Type:
-
BINOCULAR
-
Magnification:
-
1X
-
Warranty:
-
1 Year
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Lindu Optics
-
Model Number:
-
LDNVG33
-
Weight:
-
460g (without battery)
-
Effective Visual Distance:
-
0.25m to infinity
-
Name:
-
Night Vision Goggles
-
FOV:
-
40 Degree
-
Optical Aperture:
-
F 1.18 25mm
-
Optical MTF:
-
120 LP/mm
-
Optical distortion:
-
0.5% Max
-
Focus Mode:
-
Manual focus facility
-
IPD (interpupillary distances) range:
-
50-85mm
-
Relative illuminance:
-
>75%
-
Eye relief:
-
25-40mm
-
Waterproof:
-
IP65(IP67 Optional)
-
Operating Voltage:
-
2.6-4.2V
Wholesale High Performance NVG PVS 31 Night Vision Binocular NVG33 Housing
Use 36.7x31mm (18mm) tube, such as model MX-10160.
Wholesale housing kit (optics included) and complete device with tube.

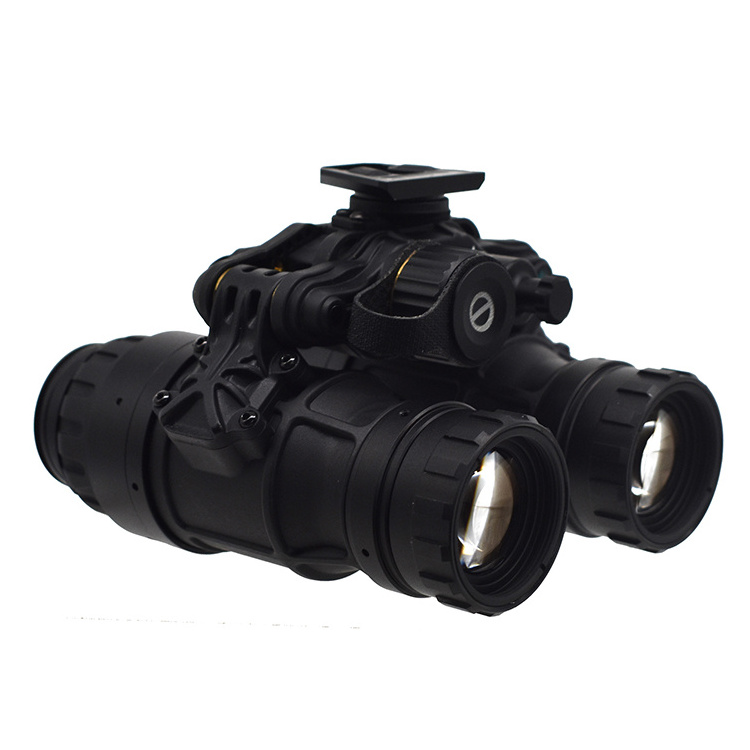

Night vision goggles PVS33
is a new design from Lindu Optics in 2023, its quality is military standard and can be mounted on helmet.
It design with 30mm diameter eyepiece lens, big eye relief range, HD optical system, almost without optical distortion, light weight, strong structure, the total specs is the top in the market, the effect is better than Carson PVS14 lens.
Details show:
Automatic shut off when flipped side:
1. IP65 orIP67 waterproof;
2. Low battery indication;
3. Bright source protection;
4. Mil-spec multi-coated optic;
5. Automatic brightness control;
6. Fully adjustable head mount;
7. Embedded spring in battery’s cap;
8. Automatic shut off when flipped side;
9. No power consumption when in standby;
10. Large IPD range;
| Name | Night Vision Goggles Binoculars |
| Image intensifier | Gen2+ / gen 3 |
| Magnification | 1X |
| Type | Rotating binocular |
| Rotating test | Auto, flip up auto shut off |
| Battery type | Lithium batteries CR123x1 |
| Voltage range | 2.6-4.2V |
| Control type | ON/IR/AUTO |
| FOV(degree) | 40 degree |
| Power | <0.1W |
| Battery capacity | 800-3200maH |
| Optical system | F1.18, 25mm |
| Distance range(M) | 0.25M to infinity |
| Continue working time | 40-100H |
| Parallelism of optical axes | <0.1° |
| Rollover detection | Solid non-contact automatic detection |
| Optical MTF | 120LP/mm |
| Optical distortion | Less than 0.5% |
| Relative Illumination | >75% |
| Lens coating | FMC |
| Warranty | 1 Year(standard) |
Sample order is packed with safety hard case; Bulk orders depend on your demand.
The helmet and mount are not the standard configuration, if need, please let us know.
Shipping: We usually ship goods by express, such as Fedex, DHL, UPS, we can also ship the goods by train, air and sea.
