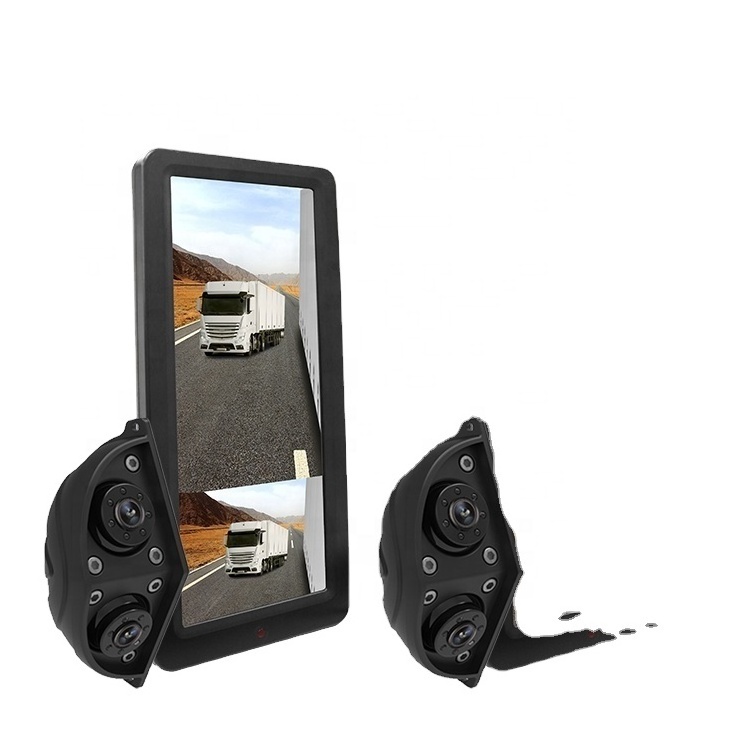

12.3 inch HD electronics mirror rear view monitors with dual cameras

12.3 inch HD electronics mirror rear view monitors with dual cameras

FOB Reference Price: Get Latest Price

≥5 Pieces

US $220

≥100 Pieces

US $215

≥300 Pieces

US $205

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Power:: 1

Warranty:: 18 months

Place of Origin:: China

Brand Name:: OEM

Model Number:: 1203

MOQ:: 1 Pcs

Product name:: Electronic rearview mirror for truck/bus/van

Resolution:: 1920 RGB(H)*720(V)

Screen Type:: TFT-LCD

View angle:: U/D/L/R 85/85/85/85

Power Supply:: DC12V~24V

Connector:: 4Pin Lock Connector

Video input:: 2 Ways 1080P/960P/720P/960H/CVBS Video input

TV mode:: PAL&NTSC/AUTO

Car Make:: universal

Quick Details

Car Fitment:: ABG

View Angle:: 90°-120°

Function:: Waterproof, NIGHT VIEW

Power:: 1

Warranty:: 18 months

Place of Origin:: China

Brand Name:: OEM

Model Number:: 1203

MOQ:: 1 Pcs

Product name:: Electronic rearview mirror for truck/bus/van

Resolution:: 1920 RGB(H)*720(V)

Screen Type:: TFT-LCD

View angle:: U/D/L/R 85/85/85/85

Power Supply:: DC12V~24V

Connector:: 4Pin Lock Connector

Video input:: 2 Ways 1080P/960P/720P/960H/CVBS Video input

TV mode:: PAL&NTSC/AUTO

Car Make:: universal

Product Description

Product Name	HD rearview electronic mirror dual camera system
Screen size	12.3 inch (8:3)
Function	1920*1080P
Vehicle type	Universal for all car

◆ No fear of the weather, rain can see clear

◆ Reduce the blind area and improve the safety

◆ Enhance visual field, improve weak light, restrain strong light

◆ Can record driving process in real time and avoid disputes

_{Product Features}

Item			specification
Display screen	type	TFT
		screen size	12.3 inch （8 : 3）
		resolution ratio	1920 RGB (H)×720(V)
		luminance	700cd/m2
		contrast ratio	1000:01:00
		visible range	292.032 (H) X 109.512 (V)[mm]
		viewing angle	U/D/L/R 85/85/85/85
Video and video recording system	video input	2ways 1080P、960P、720P、960H、D1(CVBS）
				Compatible with hybrid input of CVBS and AHD signals
				Compatible with PAL and NTSC input
audio frequency	audio input	Supports 1 channel audio input,CH1 lock connector(optional)
		audio output	none
		compressed format	G.726 compressed format
Power supply and power consumption	input voltage	DC:+12V ~+24V (working with camera requires above 13V input voltage)
Power supply and power consumption		output voltage	+11.5V/3A
work environment	temperature	-30℃ to +70℃
work environment		humidity	20% to +80%
system language			Chinese, English, others (customizable)
resolution ratio			19201080、1280720、1024768、800600
Recording Resolution			19201080、1280720、1024768、800600
Record Frame			Super - clear, hd, standard, ordinary 4ways video adjustable
memory card	Tf card	Support 256G memory card, full automatic deletion, loop coverage
Other	connector	4pin lock connector
