Quick Details
-
Model Number:
-
BRTE7SGA310, BRTE7SGA315
-
Material:
-
aluminum
-
Power:
-
/
-
Voltage:
-
1.7A
-
Adjustment range:
-
±10°, ±15°
-
Table size:
-
120mm X 130mm
-
Height of rotary:
-
180mm,120mm
-
Height:
-
60mm
-
Repeatability:
-
0.004°
-
Standard motor:
-
42 stepping motor (1.8°)
-
Rated working current:
-
1.7A
-
Maximum static torque:
-
0.4N.m
-
Horizontal load:
-
10kg
-
Transmmision ratio:
-
420:1; 300:1
Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Chengdu,China
-
Brand Name:
-
BRTE
-
Model Number:
-
BRTE7SGA310, BRTE7SGA315
-
Material:
-
aluminum
-
Power:
-
/
-
Voltage:
-
1.7A
-
Adjustment range:
-
±10°, ±15°
-
Table size:
-
120mm X 130mm
-
Height of rotary:
-
180mm,120mm
-
Height:
-
60mm
-
Repeatability:
-
0.004°
-
Standard motor:
-
42 stepping motor (1.8°)
-
Rated working current:
-
1.7A
-
Maximum static torque:
-
0.4N.m
-
Horizontal load:
-
10kg
-
Transmmision ratio:
-
420:1; 300:1

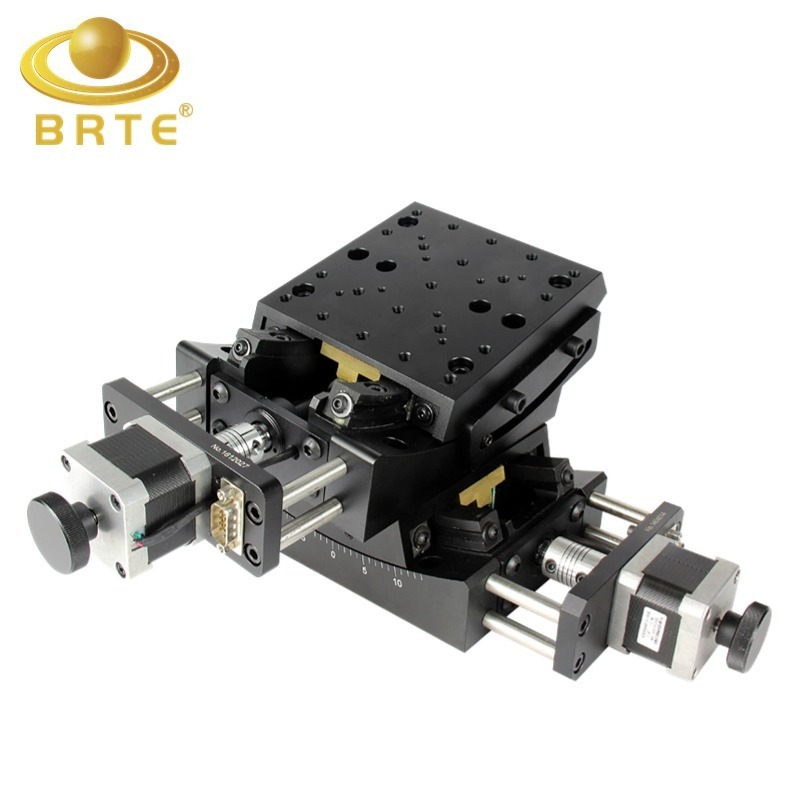

Products Description
1,a variety of optional height, complete specifications;
2,the referred height does not contain the optical lens,it needs to add the height from the center to the bottom of the optical mount when calculate the center height of optical path.
|
Model
|
BRTE7SGA310
|
BRTE7SGA315
|
|
|
Adjustment range
|
±10°
|
±15°
|
|
|
Table size
|
120mm X 130mm
|
|
|
|
Height of rotary axis
|
180mm
|
120mm
|
|
|
Height
|
60mm
|
|
|
|
Transmmision ratio
|
420:1
|
300:1
|
|
|
Resolution (8 subdivision)
|
0.0005375°
|
0.00075°
|
|
|
Repeatability
|
0.004°
|
|
|
|
Standard motor
|
42 stepping motor (1.8°)
|
|
|
|
Maximum speed (2 subdivision)
|
10°/s
|
15°/s
|
|
|
Rated working current
|
1.7A
|
|
|
|
Maximum static torque
|
0.4N.m
|
|
|
|
Horizontal load
|
10kg
|
|
|
|
Weight
|
4kg
|
3.5kg
|
|
