Quick Details
-
Model Number:
-
TH-1325
-
Voltage:
-
220/380V±10%V AC, 50/60HZ
-
Rated Power:
-
8.5KW
-
Dimension(L*W*H):
-
3500*2730*60mm
-
Weight (KG):
-
300 KG
-
Year:
-
2021
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-

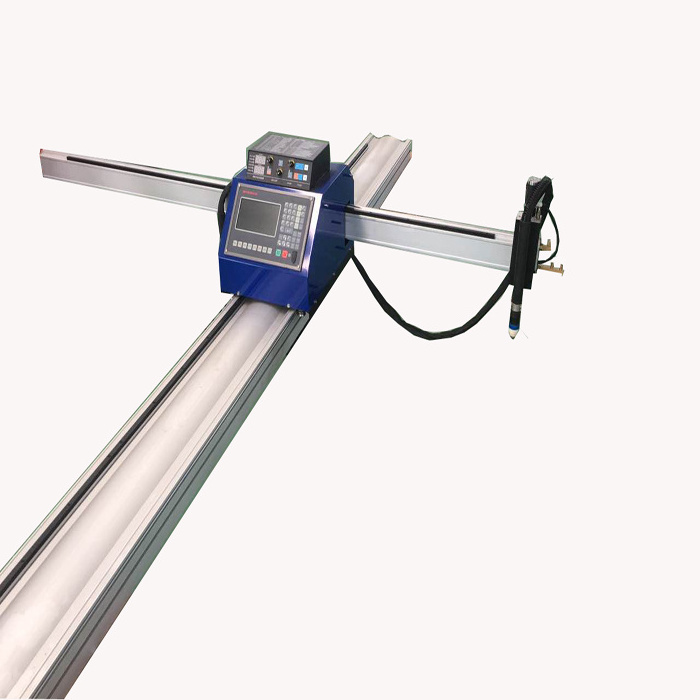

1325/1530 small micro portable plasma cutting used CNC MACHINE
-
Flame Cutting thickness (mm)::
-
5-150 (Oxygen + acetylene or propane)
-
Operation precision:
-
±0.2mm/m
-
Plasma cutter:
-
60-200A
Quick Details
-
Dimensions:
-
1500mm*250mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
TH-Laser
-
Model Number:
-
TH-1325
-
Voltage:
-
220/380V±10%V AC, 50/60HZ
-
Rated Power:
-
8.5KW
-
Dimension(L*W*H):
-
3500*2730*60mm
-
Weight (KG):
-
300 KG
-
Year:
-
2021
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
1325/1530 small micro portable plasma cutting used CNC MACHINE
-
Flame Cutting thickness (mm)::
-
5-150 (Oxygen + acetylene or propane)
-
Operation precision:
-
±0.2mm/m
-
Plasma cutter:
-
60-200A
Welcome everyone to visit our company!
Company:
Jinan Tianhong Mechanical Equipment Co.,Ltd.
Address: 400m West of the Village Committee,Liugudian Village,Hehualu Street, Licheng District,Jinan City,Shandong,China
Tel: 0531-82372595
Fax: 0531-82372595
Address: 400m West of the Village Committee,Liugudian Village,Hehualu Street, Licheng District,Jinan City,Shandong,China
Tel: 0531-82372595
Fax: 0531-82372595
Product Description
Specification
|
Model
|
TH-1525P
|
|
|
|
Cutting size
|
1500x2500mm
|
|
|
|
Max travel speed
|
0-50m/min
|
|
|
|
Cutting speed
|
0-8000 mm/min
|
|
|
|
Running accuracy
|
≤0.1mm
|
|
|
|
Height control
|
THC (Torch Height Controller function)
|
|
|
|
Cutting thickness
|
According to the power supply( 4-200mm)
|
|
|
|
Cutting gas
|
Air
|
|
|
|
Gas pressure
|
0.4-0.8Mpa for normal plasma power
|
|
|
|
Drive system
|
Dual drive
|
|
|
|
Servo motor
|
Stepper Motor and driver /Servo (Optional)
|
|
|
|
X, Y axis
|
High Quality Rack & Pinion and Taiwan linear rail
|
|
|
|
Auto ignition
|
AR235
|
|
|
|
Power
|
40A/45A/60A/63A/65A/85A/100A/120A/160A/200A/260A
|
|
|
|
Voltage
|
220V/380V
|
|
|
|
Control System
|
START
|
|
|
|
Files Transfer
|
USB
|
|
|
Details Images
Electric
Control system
Wire connection
Huayuan
Hypertherm
Control Panel
Samples
Applicable industries
Ship Building,Construction Equipment,Transport Equipment,Aerospace Industry,Bridge Building,Military industrial,Wind power,Structural Steel,Boiler containers,Agriculture Machinery,Chassis electrical cabinets,Elevator manufacturers,Textile Machinery,Environmental protection equipment,ect.
Applicable materials
Aluminum,Copper,Titanium,Nickel,Iron,Galvanized sheet,White steel,Titanium plate,Carbon steel,Stainless steel,Alloy
steel,Composite metal.
Packing & Delivery
Within 7 working days for production, we will arrange delivery after received the total payment.
Packing
Firstly, Packed the machine with plastic sheet for clearing and damp proofing.
Secondly , Then put the machine in the plywood case for safety and clashing.
Thirdly , Transport the plywood case into the container.
