a.Animal and people manure
b.Food waste
c.Straw powder
d.Palm oil / palm nut
Attention: Please do not put chemical material in the biogas digester.
- Product Details
- {{item.text}}
Quick Details
-
Key words:
-
Biogas storage bag
-
Material:
-
Red Mud PVC
-
Thickness:
-
0.9~1.5mm
-
Raw material:
-
Wastewater,Organics,manure,stalks...
-
Feature:
-
Waterproof,Flame Retardant,Movable
-
Capacity:
-
3-2000m3
-
Lifespan:
-
8-12years
-
Suitable for:
-
Home ,farm,industry
-
OEM:
-
Accept
-
Pressure:
-
1kpa-10kpa
Quick Details
-
Production Capacity:
-
5000L/H
-
Place of Origin:
-
China
-
Weight (KG):
-
20 kg
-
Key words:
-
Biogas storage bag
-
Material:
-
Red Mud PVC
-
Thickness:
-
0.9~1.5mm
-
Raw material:
-
Wastewater,Organics,manure,stalks...
-
Feature:
-
Waterproof,Flame Retardant,Movable
-
Capacity:
-
3-2000m3
-
Lifespan:
-
8-12years
-
Suitable for:
-
Home ,farm,industry
-
OEM:
-
Accept
-
Pressure:
-
1kpa-10kpa
Product Description
Red mud soft biogas plant, the tank body is provided with an air outlet hole, inlet, outlet, with the pipe assembly forming connection, inlet and outlet can be made of 200mm-300mm, caliber, not easy to plug, the inlet and outlet are integrally welded (non bolt connection), light weight and good seal. Generally speaking there are buried, half buried, placing three forms. According to user needs.
The characteristics of red mud biogas plant
★
Lightning protective, anti-seismic, anti-aging, pressure and abrasion resistant, puncture resistant, corrosion resistant, impermeable
★
Convenient to carry and install, foldable and light
★
Easy and quick to install
★
Generate much marsh gas without stirring for excellent sealing performance
★
Extensive sources of fermented raw material
★
Safe to use
★
Sanitary and environment-friendly
★
Easy to operate and maintain
Specification
|
Type
|
Specification
|
Material thickness
|
Material
|
|||
|
4m3 biogas plant
|
2X2X1m
|
1.0-1.2mm
|
Red mud PVC+MESH
|
|||
|
6m3 biogas plant
|
3X2X1m
|
1.0-1.2mm
|
Red mud PVC+MESH
|
|||
|
8m3 biogas plant
|
3X2X1.33m
|
1.0-1.2mm
|
Red mud PVC+MESH
|
|||
|
10m3 biogas plant
|
4X2X1.33m
|
1.0-1.2mm
|
Red mud PVC+MESH
|
|||
|
20m3 biogas plant
|
6X2.5X1.33m
|
1.0-1.2mm
|
Red mud PVC+MESH
|
|||
|
50m3 biogas plant
|
6X3.3X2.5m
|
1.2mm
|
Red mud PVC+MESH
|
|||
|
100m3 biogas plant
|
10*5*2m
|
1.2mm
|
Red mud PVC+MESH
|
|||
|
...
|
|
|
|
|||
|
More size we can accept customized ,please inform us your requirements .
|
|
|
|
|||

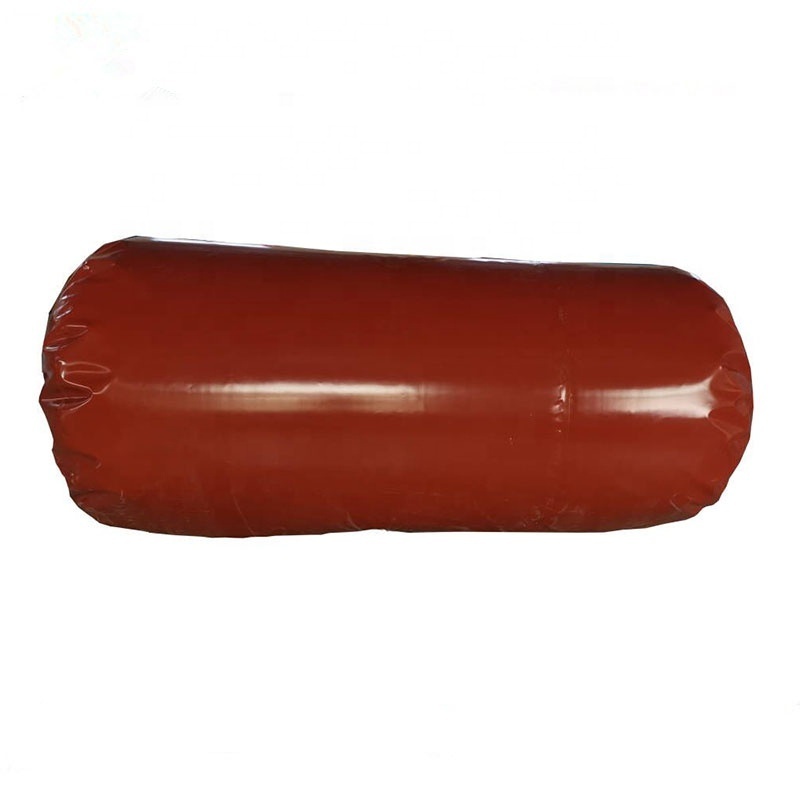

Biogas /Gas storage bag as below :
|
Capacity
|
Diameter *length
|
Material Thickness
|
||
|
5m3 Biogas storage bag
|
.5m *3m
|
0.9 mm RED MUD PVC
|
||
|
6m3 Biogas storage bag
|
1.6m*3m
|
0.9 mm RED MUD PVC
|
||
|
8m3 Biogas storage bag
|
2m*3m
|
0.9 mm RED MUD PVC
|
||
|
10m3 Biogas storage bag
|
2m*3.5m
|
0.9 mm RED MUD PVC
|
||
|
0m3 Biogas storage bag
|
3m*3m
|
1.0 mm RED MUD PVC
|
||
|
30m3 Biogas storage bag
|
3m*4.5m
|
1.0 /1.2mm RED MUD PVC
|
||
|
40m3 Biogas storage bag
|
3m*6m
|
1.2 mm RED MUD PVC
|
||
|
50m3 Biogas storage bag
|
3m *7m
|
1.2 mm RED MUD PVC
|
||
|
150m3 Biogas storage bag
|
4m*12m
|
1.2 mm RED MUD PVC
|
||
|
200m3 biogas storage bag
|
6m*7m
|
1.2 mm RED MUD PVC
|
||
|
All size we can accept customized
|
|
|
||
Details Images
Packing & Delivery
Packing:
1. Carton box
2. Wooden box3.Delivery: by express,by air,and by sea according to the quantity.
1. Carton box
2. Wooden box3.Delivery: by express,by air,and by sea according to the quantity.
Recommend Products
FAQ
1.How does the biogas production?
Organic matter (such as human, animal dung, crop residues, grass, leaves and plant organic waste, etc.) under anaerobic conditions, a flammable gas through the interaction generated by a variety of microorganisms, we call this the flammable gas as biogas.
2.What the main components of biogas?
Biogas is mainly methane, a flammable gas mixed. General biogas containing 55-70% methane, 25-40% carbon dioxide, and small amounts of hydrogen sulfide, nitrogen, hydrogen, carbon monoxide, oxygen.
3.Basic condition should be for biogas fermentation?
Enough biogas raw materials;
A certain amount of anaerobic activated sludge;
Appropriate temperature;
Suitable pH (PH value and alkalinity)
Fermentation of raw materials is essential to have a microbial growth nutrients;
Suitable stirring;
Prevent toxic substance to inhibit biogas fermentation process.
4.What raw materials can put into biogas digester?
Many country biogas raw materials mainly use human, animal dung, crop residues, grass, leaves and the like.
5.How to calculate the size of biogas plant according to my poultry or manure?
6.How many bio gas will be produce from a biogas plant?
7.How to equip a biogas generator for a biogas plant?
8.How to add manure and maintain biogas plant？
Why the using biogas need to be desulfurizer and dewater and Biogas Pump?
9.Why the biogas fertilizer is more superior than ordinary fertilizer?
And more questions ...
If you are are interested the biogas ,please feel free to contact with us ,we can share the biogas technology with you .
