* High efficiency PERC solar cell.
* Mono & polycrystalline cells optional.
* PV module with self-clearning function.
* G lass lamination with 25 Years Output Power Guarantee.
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
10 Years, 25 Years Output Power Guarantee
-
Brand Name:
-
Hinergy
-
Model Number:
-
40-200W
-
Place of Origin:
-
Shandong, China
-
Panel Dimensions:
-
590*75*520
-
Product Name:
-

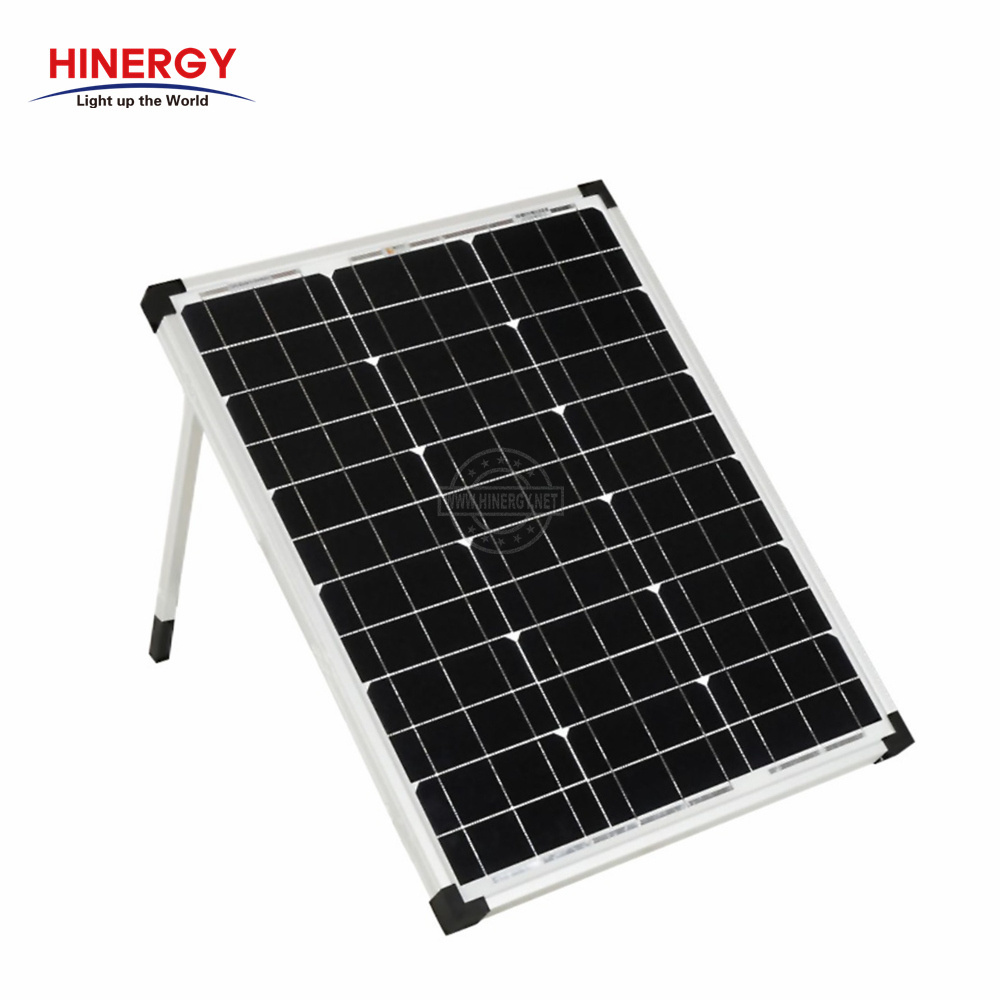

Hinergy Portable Folding Solar Panel
-
Output Power:
-
40-120 Wp
-
Folding Style:
-
2 Folds, 3 Folds, 4 Folds
-
Solar cell:
-
Monocrystalline Solar Cell
-
Junction Box:
-
Integrated Charging Device
-
Frame Color:
-
Silvery
-
Connector:
-
MC4, Alligator Clip,Anderson Optional
-
Application:
-
Marine, Camping, RV, Boat
-
Certificate:
-
CE,RoHS
Quick Details
-
Cell size:
-
158.75mmx158.75mm
-
Type:
-
PERC, Half Cell, HJT, N-TYPE, TOPCON
-
Panel Efficiency:
-
18-20%
-
Warranty:
-
10 Years, 25 Years Output Power Guarantee
-
Brand Name:
-
Hinergy
-
Model Number:
-
40-200W
-
Place of Origin:
-
Shandong, China
-
Panel Dimensions:
-
590*75*520
-
Product Name:
-
Hinergy Portable Folding Solar Panel
-
Output Power:
-
40-120 Wp
-
Folding Style:
-
2 Folds, 3 Folds, 4 Folds
-
Solar cell:
-
Monocrystalline Solar Cell
-
Junction Box:
-
Integrated Charging Device
-
Frame Color:
-
Silvery
-
Connector:
-
MC4, Alligator Clip,Anderson Optional
-
Application:
-
Marine, Camping, RV, Boat
-
Certificate:
-
CE,RoHS
Product Description
Advantages:
*
Compact design with 2-Folds, 3-Folds,4-Folds for different storage space.
*
Folding solar panel with plug and play connector,
alligator clips for easy connection.
* Suitable for GEL, AGM, and flooded batteries system,Lithium battery system is also possible.
*
Adjustable, corrosion-resistant aluminum stand as well as a heavy duty handle and latches for longevity.
*
Features rigid, anodized aluminum and tempered glass construction ensure 25 years lifetime.
*
Ideal for camping, marine,emergency, or off-grid solar power system.
|
Module Type
|
Power(Wp)
|
Folding Size (MM)
|
Weigh(KG)
|
Vmp(V)
|
Imp(A)
|
Voc(V)
|
Isc(A)
|
|
HN-FSP-40M
|
40
|
480×500×38
|
2.6
|
18.6
|
2.16
|
22.8
|
2.31
|
|
HN-FSP-60M
|
60
|
690×500×38
|
4.0
|
18.6
|
3.23
|
22.8
|
3.46
|
|
HN-FSP-80M
|
80
|
685×670×38
|
5.1
|
18.6
|
4.31
|
22.8
|
4.62
|
|
HN-FSP-100M
|
100
|
845×670×38
|
6.8
|
18.6
|
5.38
|
22.8
|
5.78
|
|
HN-FSP-120M
|
120
|
1005×670×38
|
7.4
|
18.6
|
6.46
|
22.8
|
6.93
|
Glass Lamination
* Mono & polycrystalline cells optional.
* PV module with self-clearning function.
* G lass lamination with 25 Years Output Power Guarantee.
Intelligent J unction Box
* Built in integrated charging device.
*
Indicator light show the working status
.
*
The charging & discharging protection.
*
S
uitable for AGM,GEL battery system.
All In One Kits
*
Solar kits built in charging device.
*
No additional controllers are required.
*
Cable,connector,kits bag available.
*
Waterproof grade IP67
.
Multiple Protection
* Safety latches for added security.
*
Corner protector avoiding scratches.
*
A
handle easily carry it wherever you want.
*
A
djustable Al-alloy bracket for choosing optimum angle.
Compact Design
* The Compact design save more space.
*
Output power range 40-200Wp.
*
Optional for 2 folds, 3 folds, 4 folds.
*
P
lug and play portable folding solar kits
.
Production & QC Line
Cells Sorting
Ensure colour and power uniform.
Ensure high yields,consistent performance and durability.
First of 52 steps strict quality control and inspection process.
EL Testing
Before and following lamination
Ensure "Zero" micro crack monitoring before final inspection, Continuous line monitoring and video/photo record for each cell and panel.
Zero Defect
Defects objective before shipment.
Most stringent acceptance criteria and tightest tolerance,
Ensure the best modules on the market- guaranteed!
Optimal Testing
Ensure 3% positive power tolerance.
Comprehensive QC information management system with barcode ID.Quality traceable system in place to allow quality data flow constantly.
Packing & Delivery
Note: The above packing information is subject to change without notice. We will offer wooden box packing with extra material and labor costs if your order less than a pallet, we accept any customized packing as per your requirements.
Project Case
FAQ
Q:What's the output power and working voltage for these folding solar panel?
A:The output power range is 40Wp-200Wp,working voltage is 12V/24V.
Q:Do you provide free sample?
A:Sure,we can provide the free sample for you quality evaluation,a fter we fully know each other.
Q:Could you print our company LOGO on the nameplate and package?
A:Yes, we can do that, if your quantity is more than 200 pcs for each model.
A:Yes, we can do that, if your quantity is more than 200 pcs for each model.
Q:Can you match solar kits accessories for our market requirements?
A:Yes,we can match cable, alligator clips,anderson connector, charger etc. for you.
A:Yes,we can match cable, alligator clips,anderson connector, charger etc. for you.
Q:What type of battery can this folding solar kits be used for?
A:This solar kits suit for gel,sealed,and flooded batteries power system.If lithium battery system,we make right controller for you.
A:This solar kits suit for gel,sealed,and flooded batteries power system.If lithium battery system,we make right controller for you.
Q:What's the warranty of folding solar panel?
A: 10 years for product defects in material & workmanship. 25 years power output warranty.
Q:How many days will the samples be finished? and how about the mass production?
A:Generally 7-10 days for making samples.The delivery time of mass production will depend on the quantity.
A:Generally 7-10 days for making samples.The delivery time of mass production will depend on the quantity.
WARNING !
Don't touch any "+" "-"screw connectors at the same time. It's dangerous.
Don't touch any "+" "-"screw connectors at the same time. It's dangerous.
