- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
3225*1550*2150mm
-
Weight:
-
1.637t
-
Product name:
-
Jig Separator
-
Application:
-
Gravity Mineral Separator
-
Recovery rate:
-
80-90%
-
Capacity:
-
1-15t/h
-
Feeding size:
-
10mm
-
After sale service:
-
Video technical support;Online support; Field installation
-
Motor:
-
3kw
-
Feature:
-
Easy Maintenance
-
Quality:
-
High Leavel
-
Hutch Water:
-
1-10 t/h
-
Certification:
-
ISO9001:2008
Quick Details
-
Production Capacity:
-
98%
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
JXSC
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
3225*1550*2150mm
-
Weight:
-
1.637t
-
Product name:
-
Jig Separator
-
Application:
-
Gravity Mineral Separator
-
Recovery rate:
-
80-90%
-
Capacity:
-
1-15t/h
-
Feeding size:
-
10mm
-
After sale service:
-
Video technical support;Online support; Field installation
-
Motor:
-
3kw
-
Feature:
-
Easy Maintenance
-
Quality:
-
High Leavel
-
Hutch Water:
-
1-10 t/h
-
Certification:
-
ISO9001:2008
Products Description

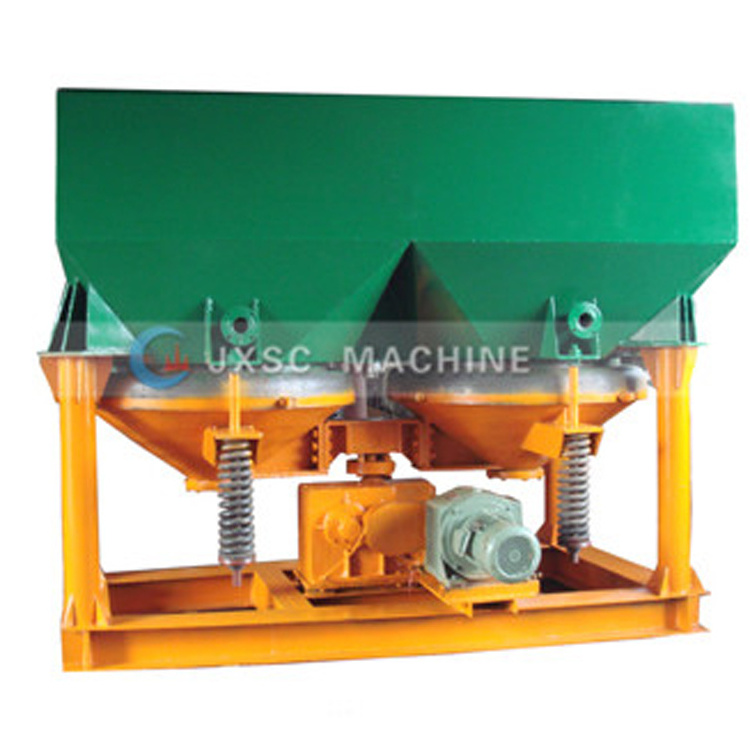

Diamond Jig Machine Brief Introduction:
JXSC jig concentration machine is energy-saving gravity separation equipment, which is developed according to the law of layer theory of jigger bed stratification. The performance of saw-tooth Jig has reached the domestic advanced level, the jig separator is one of the ideal devices in energy-saving gravity separation.
When processing the open-pit mines, the saw-tooth wave jigger is a key machine with the principle of gravity separation. Its pulse curve is like saw-tooth waveform to make rising water faster than the dropping water; enhanced the loose of bed, eased the inhaled role, so that heavy particles in the mineral can fully settlement, greatly improving the sorting capacity and recovery rate of equipment.
Below are some details of jig machine, which may influence price so much!
Many competitors often
the thickness of the steel plate thinner,
use cheaper motor, use r
enewable rubber, etc, to reduce the price.
Area Jig different from each model
Heavy mineral deposit
Famous brand high quality motor
Back wash water hole
Natural rubber
tympanum
Durable wave box
Technical Parameters of Jig Separator Machine:
|
Model
|
Jig Area (M2)
|
Stroke (R/Min)
|
Feeding size (mm)
|
Hutch Water ( T/H)
|
Pressure Water (kg/cm2)
|
Capacity (T/H)
|
Power (KW)
|
Overall dimensions (mm)
|
Weight (T)
|
|
JT0.57-1
|
0.57
|
60-160
|
<6
|
1~2
|
≥0.3
|
1-2.5
|
1.5
|
1560x820x1550
|
0.612
|
|
JT1-1
|
1.04
|
60-160
|
<10
|
2~3
|
≥0.3
|
4~10
|
2.2
|
1322x1190x1915
|
0.9
|
|
JT2-2
|
2.28
|
60-160
|
<10
|
2~4
|
≥0.3
|
8~15
|
3
|
3225x1550x2150
|
1.637
|
|
JT4-2
|
4
|
50-125
|
<10
|
4~8
|
≥0.1
|
8~16
|
7.5
|
4240x1990x2750
|
4.6
|
|
JT4-2A
|
4
|
50-125
|
<10
|
4~8
|
≥0.1
|
8~16
|
8
|
4240x1990x2750
|
4.6
|
|
JT5-2
|
4.86
|
80-120
|
<10
|
4~10
|
≥0.1
|
10~20
|
7.5
|
3940x2006x2580
|
4.6
|
Customer Mine Site
Uganda Tantalum Beneficiation Project:
Mineral
: Tantanlum niobium
Machines : Trommel scrubber, jig machine, shaking table, vibrating screen, belt conveyor, etc.
The cooperation start in 2013, we met the client in Tanzania Mining EXPO, after nearly two years following up, the client overcome all the difficulties, minerals testing, get the license.....the project still running till now, it's really an awesome case!
Machines : Trommel scrubber, jig machine, shaking table, vibrating screen, belt conveyor, etc.
The cooperation start in 2013, we met the client in Tanzania Mining EXPO, after nearly two years following up, the client overcome all the difficulties, minerals testing, get the license.....the project still running till now, it's really an awesome case!
South Africa Diamond Beneficiation Project:
Mineral
: Diamond
Machines : Vibrating feeder, Jaw crusher, Impact crusher, Trommel scrubber, jig machine, shaking table, vibrating screen, belt conveyor, etc.
Machines : Vibrating feeder, Jaw crusher, Impact crusher, Trommel scrubber, jig machine, shaking table, vibrating screen, belt conveyor, etc.
Packing & Delivery
1.Standard parts packed in the wooden cases.
2.Big parts packed by plastic membrane.
3.The whole machine is loaded in the container.
Our Company
J
iangxi
Province County Mining Machinery Factory
is a leading mining machinery manufacturer with over
35
years experiences, providing complete set processing equipments for Gold ore /Tin ore /Tungsten ore /Iron ore /Diamond/ Coltan ore / Silica sand / Zircon sand/ Black sand/Chrome ore/Cobalt ore/Antimony ore, ect. As well as complete set small laboratory mining machines.
Main product including: trommel screen, trommel scrubber, shaker table, spiral chute separator, jig machine, centrifugal concentrator, sluice box, vibration screen, melting furnace, jaw crusher, hammer crusher, ball mill, flotation machine, spiral classifier, as well complete set small laboratory mining equipment.
Our Service
Pre-Sales Service
* Receiving clients inquiry
* Studying clients mining conditions
* Introducing our machinery
* Propose the most suitable solution
After-Sales Service
* Design outlet with 3D drawing photo
* Producing according to the design
* Inspection and testing before delivery
* Engineers installation and training service overseas
FAQ
Q: Are you mining machinery manufacturer? can I visit your
factory?
A: Yes, we are, our factory is located in Ganzhou City Jiangxi province, it have direct flight to Beijing,Shanghai,Guangzhou ,Shenzhen Airport. Welcome to visit our factory
.
Q:Can you produce as specific size?
A: Yes, most of our products can be customized.
Q: What is the leading time?
A: For shaking table and laboratory mining equipment ,we can send out within 10 days;
For large mining equipment and customized machine, the lead time is 30-40 days.
Q: Do you supply oversea service?
A: Yes, we do. Engineers available to service overseas
.
Q: How about the warranty?
A: We will supply you one year warranty and lifelong technical support.
