Quick Details
-
Warranty:
-
10YEARS
-
Brand Name:
-
HENGTONG
-
Model Number:
-
Poly solar panel-150w
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
other
-
Product name:
-
Solar panel
-
Solar panel:
-
Poly-crystalline silicon
-
Certification:
-
CE,CCC,CQC,ISO9001
-
Size:
-
Various sizes can be customized
-
Working Temperature(℃):
-
-30 - +60
-
IP rating:
-
IP65
-
Load Power (W):
-
Depend
-
Output Voltage (V):
-
12-24v
-
Application:
-
Solar System Solar Street Light
-
Certificate:
-
CE/ROHS
Quick Details
-
Cell size:
-
125mmx125mm
-
Type:
-
PERC, Half Cell, Bifacial, All Black
-
Panel Efficiency:
-
17%-19%
-
Warranty:
-
10YEARS
-
Brand Name:
-
HENGTONG
-
Model Number:
-
Poly solar panel-150w
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
other
-
Product name:
-
Solar panel
-
Solar panel:
-
Poly-crystalline silicon
-
Certification:
-
CE,CCC,CQC,ISO9001
-
Size:
-
Various sizes can be customized
-
Working Temperature(℃):
-
-30 - +60
-
IP rating:
-
IP65
-
Load Power (W):
-
Depend
-
Output Voltage (V):
-
12-24v
-
Application:
-
Solar System Solar Street Light
-
Certificate:
-
CE/ROHS

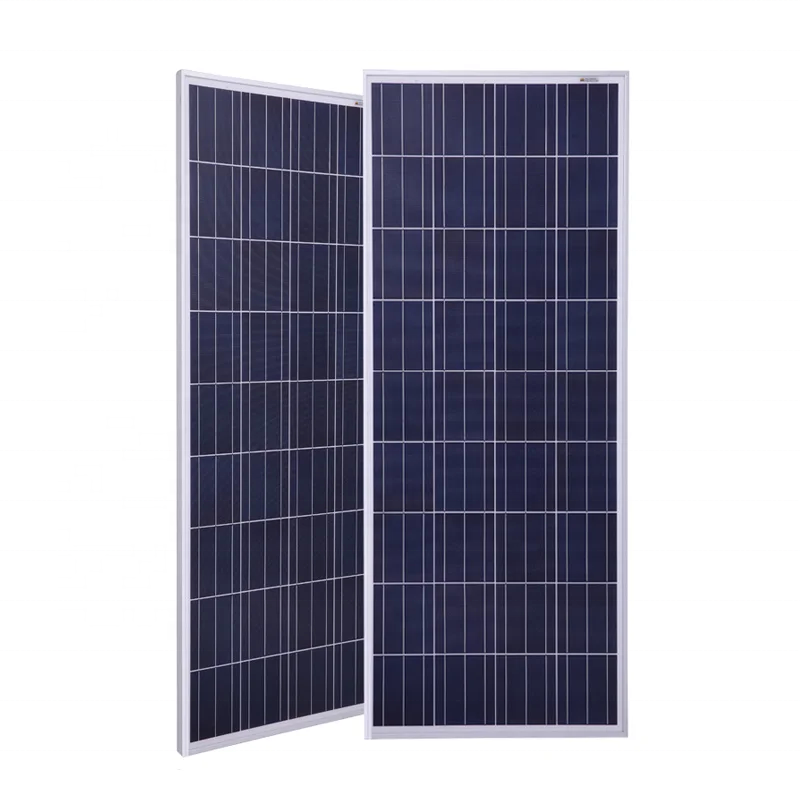

Custom made solar photovoltaic panels 150 watt polycrystalline solar panels kit
PRODUCT INFORMATION
|
Type
|
Voc(V)
|
I sc (A)
|
Vmp(V)
|
I mp(A)
|
Pm(Wp)
|
Number of cells
|
Size of Module(mm)
|
|
HT30
|
21.5
|
1.94
|
17.5
|
1.71
|
30
|
36（39*78）
|
417*670*25
|
|
HT40
|
21.5
|
2.58
|
17.5
|
2.29
|
40
|
36（42*156）
|
444*670*30
|
|
HT45
|
21.5
|
2.75
|
17.5
|
2.57
|
45
|
36（46*156）
|
480*670*30
|
|
HT50
|
21.5
|
3.23
|
17.5
|
2.86
|
50
|
36（52*156）
|
534*670*30
|
|
HT60
|
21.5
|
3.88
|
17.5
|
3.43
|
60
|
36（63*156）
|
630*670*30
|
|
HT70
|
21.5
|
4.75
|
17.5
|
4.02
|
70
|
36（72*156）
|
714*670*30
|
|
HT75
|
21.5
|
4.59
|
17.5
|
4.29
|
70
|
36（78*156）
|
768*670*30
|
|
HT80
|
21.5
|
5.42
|
17.5
|
4.57
|
80
|
36（84*156）
|
822*670*30
|
|
HT90
|
21.5
|
6.32
|
17.5
|
5.15
|
90
|
36（94*156）
|
910*670*30
|
|
HT100
|
21.5
|
6.56
|
17.5
|
5.72
|
100
|
36（104*156）
|
696*990*30
|
|
HT120
|
21.5
|
7.24
|
17.5
|
6.86
|
120
|
36（128*156）
|
828*990*30
|
|
HT130
|
21.6
|
7.92
|
17.5
|
7.43
|
130
|
36（138*156）
|
990*900*30
|
|
HT135
|
21.5
|
8.26
|
17.5
|
7.71
|
135
|
36(140*156)
|
1326*670*35
|
|
HT140
|
21.5
|
8.57
|
17.5
|
8
|
140
|
36(134*156)
|
1290*670*30
|
|
HT150
|
21.5
|
8.82
|
17.5
|
8.57
|
150
|
36（156*156）
|
1000*990*35
|
|
HT150
|
21.5
|
9.18
|
17.5
|
8.58
|
150
|
36（156*156）
|
1470*670*35
|
|
HT180
|
44.4
|
5.33
|
36
|
5
|
180
|
72(156*93)
|
1188*990*35
|
|
HT200
|
43.5
|
6.5
|
35.5
|
5.63
|
200
|
72(156*104)
|
1320*990*35
|
|
HT200
|
43.5
|
6.5
|
35.5
|
5.63
|
200
|
72(125*125)
|
1580*808*35
|
|
HT250
|
43
|
7.65
|
35.5
|
7.04
|
250
|
72（156*156）
|
1490*990*35
|
|
HT250
|
36
|
9.13
|
30
|
8.3
|
250
|
60（156*156）
|
1640*990*35
|
|
HT300
|
43
|
8.82
|
35.5
|
8.45
|
300
|
72（156*156）
|
1940*990*35
|
|
HT320
|
45.8
|
9.49
|
37.1
|
8.62
|
320
|
|
|
