Quick Details
-
Model Number:
-
THE K8 PC
-
Material:
-
Polycarbonate
-
Product name:
-
THE K8 PC
-
Application:
-
FDM/FFF 3D Printer
-
Certificate:
-
RoHS REACH
-
Net Weight:
-
1kg/roll
-
Tolerance:
-
0.01-0.03mm
-
Brand:
-
Kexcelled
Quick Details
-
Processing Service:
-
Moulding, Cutting
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
kexcelled
-
Model Number:
-
THE K8 PC
-
Material:
-
Polycarbonate
-
Product name:
-
THE K8 PC
-
Application:
-
FDM/FFF 3D Printer
-
Certificate:
-
RoHS REACH
-
Net Weight:
-
1kg/roll
-
Tolerance:
-
0.01-0.03mm
-
Brand:
-
Kexcelled
About Us
Product Description

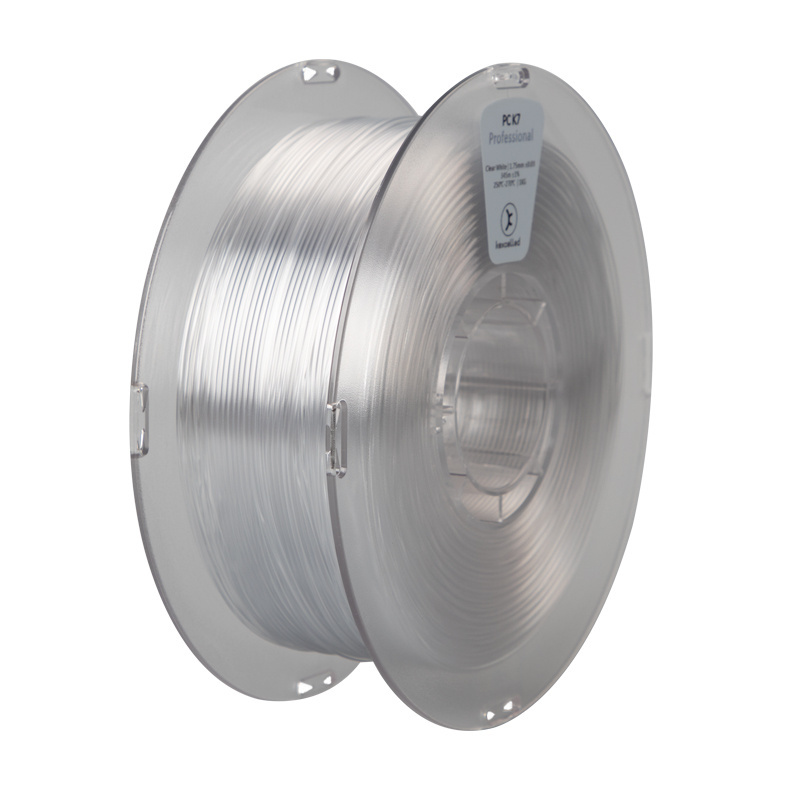

PC K7
is one of the professional FDM/FFF 3D printing PC filaments. After special process adjustment, it improves the problems of PC material used in desktop printers, such as easy warping and poor adhesion between layers. It is suitable for printing models or structural parts with high strength or heat resistance.
|
Specifications:
|
|
|
|
Filament diameter:
|
Ø1.75mm Ø2.85mm Ø3.0mm
|
|
|
Net Weight:
|
0.5kg 1kg 3kg 5kg
|
|
|
Tolerance:
|
ﾱ0.01-0.03mm
|
|
|
Colors:
|
White, black, clear white, clear black
|
|
|
Remark:
|
More diameters & weight can be customized.
Own color-masterbatch technology to customize any color.
|
|
Low Creep
At 100°C, it can maintain high strength and modulus.
Low Viscosity
The fluidity and viscosity are well balanced in the printing temperature range, easy to print, and good adhesion between layers.
Certain Chemical Resistance
Dilute acid resistance, oil resistance, and ethylene oxide resistance.
|
Parameters:
|
|
|
|
|
||||
|
*Strict quality control: Enhanced impact strength and high fluidity enable you to print in wider temperature and speed ranges andkeep the surface smooth without warping deformation. Accurate deposition of each layer brings good surface quality. Melt well, feed smoothly and constantly without clogging the nozzle.
|
|
|
|
|
||||
|
*Smooth & stable printing: The introduction of porous micro-nano inorganic materials ensures smooth printing, low shrinkage deformation, low warpage, good adhesion to the platform, easy forming, and good forming accuracy. Can be used to print large parts.
|
|
|
|
|
||||
|
*
Process optimzation: Kexcelled uses Mitsubishi Chemical's organic infiltration carbon fiber composite PLA to enhance modification. By selecting the appropriate size and length of carbon fiber, refine the adding process, optimize the agglomeration problem, and solve the problem of common fiber composite materials that are easy to block in the FDM process.
|
|
|
|
|
||||
|
Printing Tips:
|
|
|
|
Nozzle temperature:
|
250℃-270℃
|
|
|
Platform temperature:
|
80℃-100℃
|
|
|
Print speed:
|
40-80mm/s
|
|
|
Remark:
|
If you need more product quides and instructions, or you are interested in becoming in our sales agent and business partner, please contact us by email: alibaba@northbridge3d.com.
|
|
Recommend Products
Cooperation Partners
Our 3D printing filament perfectly compatible with 99% FDM 3D printer.
Packaging & After-Sales
General Packaging:
* Each spool packed in a vacuum-sealed package with a desiccant packet.
* Each roll in a small box,
box size:L21XW21XH7.2cm
* 10 small boxes in a carton box
carton size:L45*W38*H23cm
Packaging also can be customized*_*.
After-Sales:
Kexcelled hopes that everyone can experience the fun of 3D printing, so we provide printing technology guidance and customer service. The email will be answered within 24 hours ASAP *_*.
FAQ
What if the surface of the printed model is not smooth and has defects?
1. First, confirm that the filaments are in a dry state. If the unpacking time is too long, it needs to be dried (PLA series
50-55°C, 3h; PETG, WOOD,ABS, etc. 60-65°C, 4h; TPU, 65-70°C, 4h).
2. Appropriately increase or decrease the amount of extrusion.
3. Clean the throat and nozzle.
4. Check whether the extruder gear is worn.
50-55°C, 3h; PETG, WOOD,ABS, etc. 60-65°C, 4h; TPU, 65-70°C, 4h).
2. Appropriately increase or decrease the amount of extrusion.
3. Clean the throat and nozzle.
4. Check whether the extruder gear is worn.
What to do if the printed filament cannot get onto the platform?
1. Adjust the distance between the nozzle and the platform.
2. Reduce the printing speed of the first layer.
3. Adjust the temperature and cooling settings.
4. Platform surface treatment (platform sticker, glue, and material).
5. Increase brim or raft.
2. Reduce the printing speed of the first layer.
3. Adjust the temperature and cooling settings.
4. Platform surface treatment (platform sticker, glue, and material).
5. Increase brim or raft.
What to do if the nozzle is clogged?
1. Reinstall the filament to see if the new one can be extruded normally.
2. Clean the nozzle and use a fine needle smaller than the nozzle diameter to clean or replace with a new nozzle.
3. Check whether the throat cooling fan is operating normally. Abnormal operation of the fan will cause the consumables to flow. The throat swells in advance and causes the plug.
4. Check whether the throat is aging.
2. Clean the nozzle and use a fine needle smaller than the nozzle diameter to clean or replace with a new nozzle.
3. Check whether the throat cooling fan is operating normally. Abnormal operation of the fan will cause the consumables to flow. The throat swells in advance and causes the plug.
4. Check whether the throat is aging.
What to do with stringing？
1. After each use, the filament should be inserted into the round hole on the side of the material tray, and stuck tightly.
2. If the filament has been threaded, relax and pull out until it is not threaded, then re-wound.
2. If the filament has been threaded, relax and pull out until it is not threaded, then re-wound.
