Quick Details
-
Model Number:
-
E6000
-
Place of Origin:
-
Beijing, China
-
Memory (RAM):
-
16GB
-
Instruction System:
-
Fusionos
-
Supporting Memory Capacity:
-
≥64GB
-
Specification:
-
60.46 mm x 423 mm x 537.2 mm
-
Weight (with Packaging):
-
20.0kg
-
Transport Package:
-
Cartons
Quick Details
-
Type:
-
Blade
-
Processor Type:
-
Intel Xeon
-
Brand Name:
-
h W FusionServer
-
Model Number:
-
E6000
-
Place of Origin:
-
Beijing, China
-
Memory (RAM):
-
16GB
-
Instruction System:
-
Fusionos
-
Supporting Memory Capacity:
-
≥64GB
-
Specification:
-
60.46 mm x 423 mm x 537.2 mm
-
Weight (with Packaging):
-
20.0kg
-
Transport Package:
-
Cartons
Product Description

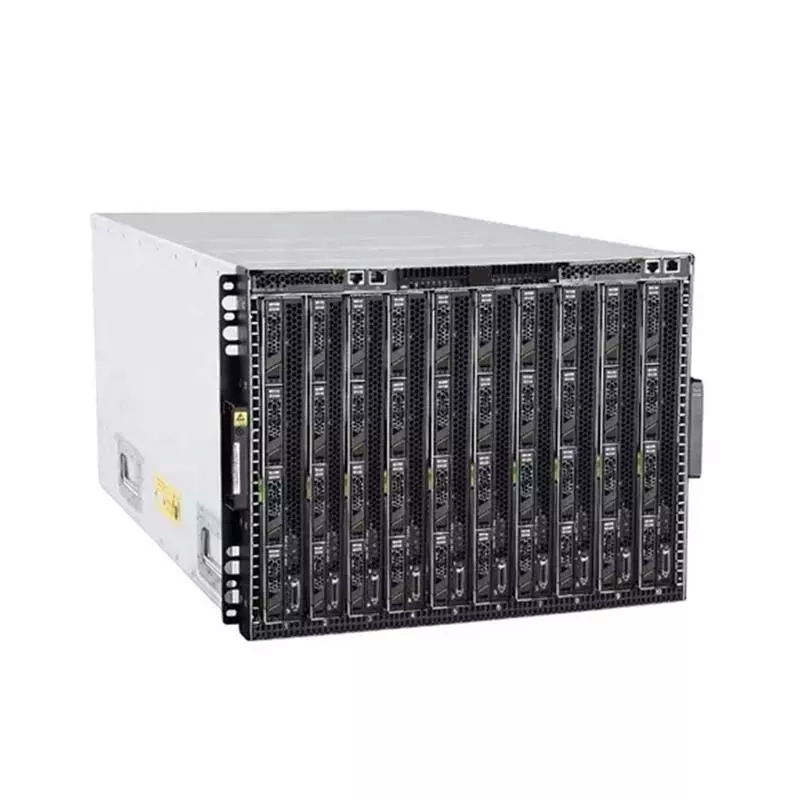

Original HUA WEI TecalE6000 Blade Server chassis
The HUA-WEI Tecal E6000 is a new-generation server platform that guarantees comprehensive and powerful functionality,flexible
configurations, and outstanding performance. With integrated subsystems for computing, switching, storage, I/O, and management,
the energy-efficient E6000 forms a highly reliable solution that provides optimized virtualization and high scalability,making it
an excellent choice for meeting business growth requirements.
The E6000 chassis is 8U high and features an optimized layout structure to maximally use space.It houses 10 server blades and
redundant PSUs, fan modules, management modules, and switch modules.The E6000 chassis can be installed in a standard 19-inch rack
at a depth of at least 1000 mm. Two typesof E6000 chassis are provided: AC and DC.
configurations, and outstanding performance. With integrated subsystems for computing, switching, storage, I/O, and management,
the energy-efficient E6000 forms a highly reliable solution that provides optimized virtualization and high scalability,making it
an excellent choice for meeting business growth requirements.
The E6000 chassis is 8U high and features an optimized layout structure to maximally use space.It houses 10 server blades and
redundant PSUs, fan modules, management modules, and switch modules.The E6000 chassis can be installed in a standard 19-inch rack
at a depth of at least 1000 mm. Two typesof E6000 chassis are provided: AC and DC.
Details Images
Specification
|
Form factor
|
8U blade server chassis
|
|
Server blades
|
10 slots for HW BH series server blades
|
|
Switch module
|
Up to 6 switch modules:
• NX910 GE pass through module • NX120 4G FC switch module • NX112 10GE uplink switch module • NX113 10GE uplink switch module |
|
PSU
|
Up to 6 hot-swappable PSUs:
• AC: 1600 W • -48 V DC: 1300 W Redundancy: N+N or N+M |
|
Fan module
|
9 hot-swappable fan modules in N+1 redundancy mode
|
|
Management
|
2 management modules in 1+1 redundancy mode
Supported protocols: IPMI 2.0, SOL, SSL, and SSH Supports CLI, IPMITools, RMCP+, and Web for management |
|
Power supply
|
110 V/220 V AC or -48 V DC
|
|
Operating temperature
|
5ºC to 35ºC
|
|
Dimensions
|
Height: 353 mm (13.90 in.)
Width: 447 mm (17.60 in.) Depth: 810 mm (31.89 in.) |
