Quick Details
-
Max. Spindle Speed (r.p.m):
-
4200 r.p.m
-
Max. Weight of Workpiece(kg):
-
500
-
Width of bed (mm):
-
480 mm
-
Spindle Motor Power(kW):
-
11
-
Max. Turned Length (mm):
-
500
-
Travel (X Axis)(mm):
-
250 mm
-
Travel (Z Axis)(mm):
-
610 mm
-
Positioning Accuracy (mm):
-
0.006
-
Repeatability (X/Y/Z) (mm):
-
0.003
-
Place of Origin:
-
Jiangsu, China
-
Dimension(L*W*H):
-
3300*2200*2150mm
-
Brand Name:
-
Hanover
-
Model Number:
-
TSC45L
-
Voltage:
-
380v
-
Weight (KG):
-
4200
-
Marketing Type:
-
New Product 2024
-
CNC or Not:
-
CNC
-
Automatic Grade:
-
Automatic
-
Machine Type:
-
Slant Bed Cnc Lathe Machine
-
Name:
-
CNC Lathe TSC45L
-
Spindle:
-
Taiwan Bush spindle
-
Spindle speed:
-
4200rpm/min
-
Tailstock:
-
Hydraulic
-
CNC control:
-
Siemens/Fanuc
-
Max. Swing Diameter:
-
560mm
-
Weight:
-
4000kg
Quick Details
-
Type:
-
Horizontal
-
Max. Length of Workpiece (mm):
-
560
-
Year:
-
2024
-
Max. Spindle Speed (r.p.m):
-
4200 r.p.m
-
Max. Weight of Workpiece(kg):
-
500
-
Width of bed (mm):
-
480 mm
-
Spindle Motor Power(kW):
-
11
-
Max. Turned Length (mm):
-
500
-
Travel (X Axis)(mm):
-
250 mm
-
Travel (Z Axis)(mm):
-
610 mm
-
Positioning Accuracy (mm):
-
0.006
-
Repeatability (X/Y/Z) (mm):
-
0.003
-
Place of Origin:
-
Jiangsu, China
-
Dimension(L*W*H):
-
3300*2200*2150mm
-
Brand Name:
-
Hanover
-
Model Number:
-
TSC45L
-
Voltage:
-
380v
-
Weight (KG):
-
4200
-
Marketing Type:
-
New Product 2024
-
CNC or Not:
-
CNC
-
Automatic Grade:
-
Automatic
-
Machine Type:
-
Slant Bed Cnc Lathe Machine
-
Name:
-
CNC Lathe TSC45L
-
Spindle:
-
Taiwan Bush spindle
-
Spindle speed:
-
4200rpm/min
-
Tailstock:
-
Hydraulic
-
CNC control:
-
Siemens/Fanuc
-
Max. Swing Diameter:
-
560mm
-
Weight:
-
4000kg
Heavy duty cnc lathe cutting tools with square and round tool holder
1.Taiwan Taizheng Heavy duty 30 degree bed structure,more stable and high precision.
2. Adopt independent tube in tube structure spindle unit, equip with dedicated bearing of high-precision spindle, adopt special lubricating greases to lubricate. Decrease greatly thermal deformation of spindle unit, increase thermal stability and accuracy of spindle unit.
3. Famous brands’ developed products are all adopted for CNC systems and drive units. With years’ application, PLC is safe and reliable. The electrical apparatuses are all European brand products with low malfunction rate and long lasting durability.
4. With delicate machine tools assembly techniques and precision correction by laser interferometers and laser ball bars, its mechanical accuracy is far higher than that of the international.
Heavy duty cnc lathe cutting tools with square and round tool holder Specifications:
| Item | TSC45L CNC Lathe |
| Max.swing over bed(mm) | 560 |
| Distance of the centre(mm) | 610 |
| Max.travel of X/Z axis(mm) | 250/610 |
| Rapid moving speed of X/Z axis(m/min) | 24/24 |
| Spindle motor power (KW) | 7.5/11/15 |
| Max.rotational speed of spindle(rpm/min) | 4200 |
| Spindle type | A2-6 |
| Spindle bore(mm) | 66/1:20 |
| Chuck size(inch) | 8 |
| Center height of servo turret(mm) | 100 |
| Cutter numbers of the hydraulic tool turret | 12 |
| Tailstock diameter/taper | 80/MT4 |
| Tailstock Bush's travel(mm) | 80 |
| Positioning accuracy of X/Z axis (mm) | ±0.006 |
| Repositioning accuracy(mm) | ±0.003 |
| Surface roughness(mm) | ≤0.001 |
| External dimension(L*W*H)(mm) | 3200*2200*2150 |
| Weight(kg) | 4000 |
Pictures of Heavy duty cnc lathe cutting tools with square and round tool holder

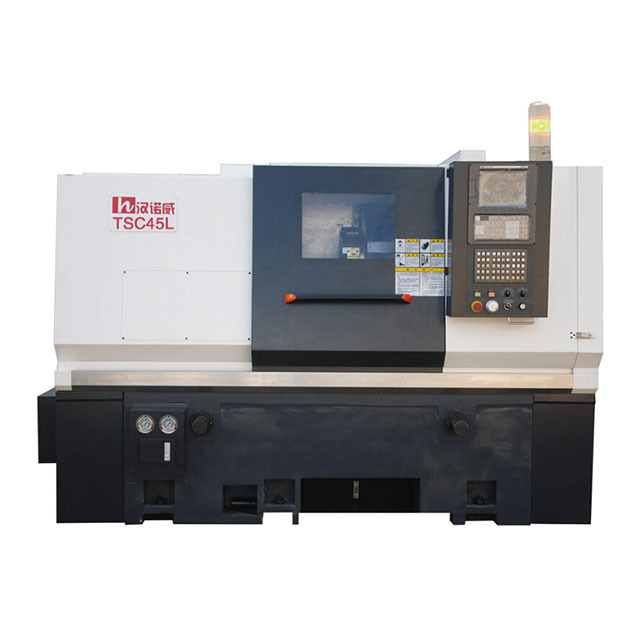

1.The overview of TSC45L CNC lathe
2.The machine frame of TSC45L CNC lathe
3.The Max.swing over bed is 610mm of TSC45L CNC lathe
4.Z axis linear rails' width of TSC45L CNC lathe
5.The X axis linear rails' width of TSC45L CNC lathe
6.Japan THK X/Z axis' linear rail for TSC45L CNC lathe
7.4200 rpm/min Royal or Posa spindle unit for TSC45L CNC Lathe
8.Heavy duty cnc lathe cutting tools with square and round tool holder
More details,please feel free contact with me
Heavy Duty TSC45L CNC Lathe Machine packages:
1. Inn
er package: Plastic spraying, antirust grease and Stretch film
2. Outside package: standard export wooden cases
1.Excellent guarantee and after-sale-service
a. User-friendly English software and detailed videos/CD
b. Free operator training
c. Free maintenance within 1 year for whole machine except of cnc system which guarantee is 3 years
d. 24-hours technical support by Email or Telephone
2. High quality
The main parts of our machines are imported from Japan,Germany and USA. Some are made in Taiwan.
You are welcomed to visit our factory.
3. Low Price
We make sure that for same price, our quality is much more excellent.
4.Customized or special design are OK
