Quick Details
-
Model Number:
-
QPM13-N0
-
Max. Current:
-
0.5A
-
Max. Working Pressure:
-
30Bar
-
Product name:
-

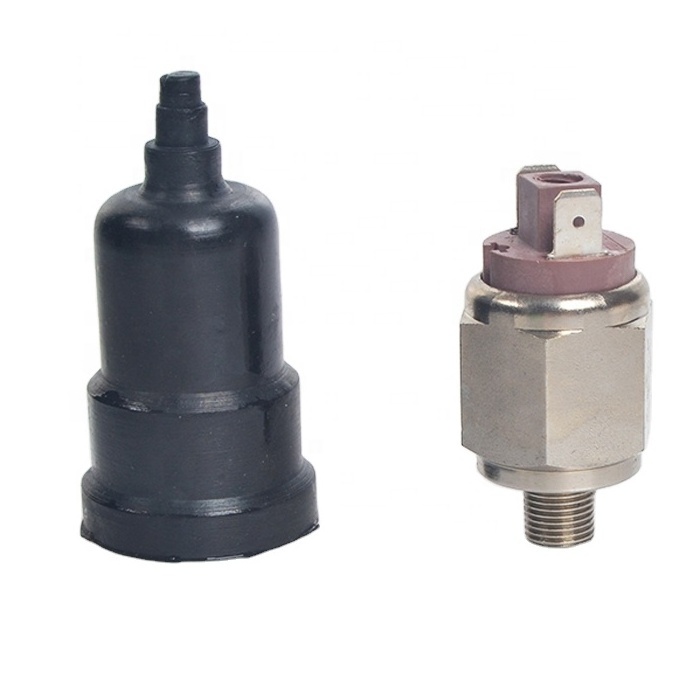

oil pressure switch
-
Type:
-
adjustable
-
Pressure Range:
-
1-30Bar
-
Rated voltage:
-
220/240V
-
Rated current:
-
0.5A
-
Protection rating:
-
IP54
-
Max power:
-
250W
-
Application:
-
pressure control
-
Connection:
-
external thread
-
Thread:
-
1/8''
Quick Details
-
Max. Voltage:
-
220V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Minghong
-
Model Number:
-
QPM13-N0
-
Max. Current:
-
0.5A
-
Max. Working Pressure:
-
30Bar
-
Product name:
-
oil pressure switch
-
Type:
-
adjustable
-
Pressure Range:
-
1-30Bar
-
Rated voltage:
-
220/240V
-
Rated current:
-
0.5A
-
Protection rating:
-
IP54
-
Max power:
-
250W
-
Application:
-
pressure control
-
Connection:
-
external thread
-
Thread:
-
1/8''
Model:QPM13-NC mechanical adjustable air pressure switch
Use medium: air
Working Form: Pressure Adjustable
Installation Connection: external thread
Pressure range: 0.1-3.0 MPA (1-30Bar)
Work tempertature range: -5-60 degree
Connection: 1/8'' and 1/4" thread,
Work voltage: 220V/AC,110V/AC,24V/DC,12V/DC
Maximum power: 24VA, 100VA
Insulation voltage: 500V, 1500V
Rated working current: 500mA
Max pulse count: 200T/min
Service life: 100 millions cycles
Protection class: IP54
NC: normal closed, when air pressure up to a control level, the circuit break.
NO: normal open, when air pressure up to a control level, the circuit connect,
