1. Fully automatic and continuous production.
2. Controlled by touch screen and PLC, easy to operate.,
3. High output and save energy.
4. Exact density of foam beads
5. Stable quality and less failure.
- Product Details
- {{item.text}}
Quick Details
-
Dimension(L*W*H):
-
5800*4200*5000mm
-
Power (kW):
-
33kw
-
Weight (KG):
-
4000 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Operation:
-
PLC and Touch Screen
-
Feature:
-
Electronic weighing and Material level control
-
Raw Material:
-
EPS raw material
-
Consumption:
-
Low energy consumption
-
Finished products:
-
Expanded Polystyrene Beads
-
HS code:
-
84778000
-
Automatic:
-
Fully Automatic and Continuous Production
-
Application:
-
Bean bag filling; brick or other EPS productions
-
Optional:
-
Steam and air proportional valves and vibration sensor
Quick Details
-
Place of Origin:
-
China
-
Machine Type:
-
EPS Making Machine
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
5800*4200*5000mm
-
Power (kW):
-
33kw
-
Weight (KG):
-
4000 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Operation:
-
PLC and Touch Screen
-
Feature:
-
Electronic weighing and Material level control
-
Raw Material:
-
EPS raw material
-
Consumption:
-
Low energy consumption
-
Finished products:
-
Expanded Polystyrene Beads
-
HS code:
-
84778000
-
Automatic:
-
Fully Automatic and Continuous Production
-
Application:
-
Bean bag filling; brick or other EPS productions
-
Optional:
-
Steam and air proportional valves and vibration sensor
Product Description

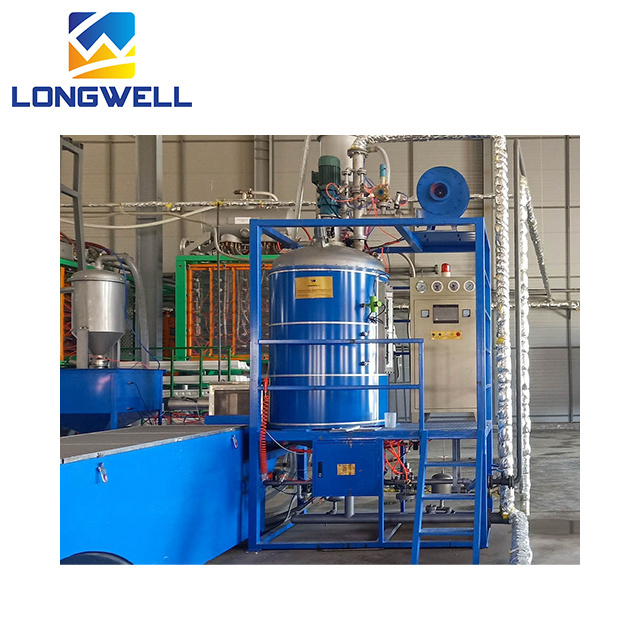

High Density Granules EPS Machine Making Polystyrene Expanded Beads
It turns eps raw material (expanded polystyrene) to big and light foam beads through steam heating. With PLC and touch screen to realize full automatic production for feeding, heating and ejecting foam beads.
Main advantage:
|
Technical Data
|
|
|
||
|
Item
|
|
LWP-1200 Ⅰ Ⅱ
|
||
|
Expansion Chamber
|
Diameter
|
DN1200
|
||
|
|
Volume
|
2m3
|
||
|
|
Usable Volume
|
1.5m3
|
||
|
Steam
|
Entry
|
DN50
|
||
|
|
Consumption
|
7-9kg/cycle
|
||
|
|
Pressure
|
0.6-0.8Mpa
|
||
|
Compressed Air
|
Entry
|
DN40
|
||
|
|
Consumption
|
0.5-0.6m3/cycle
|
||
|
|
Pressure
|
0.4-0.6Mpa
|
||
|
Drainage
|
Upper Drain Port
|
DN125
|
||
|
|
Down Drain Port
|
DN100
|
||
|
Material Conveying Line
|
DN150
|
|
||
|
Capacity
|
10g/l 350kg/h
|
15g/l 550kg/h
|
||
|
|
20g/l 650kg/h
|
30g/l 750kg/h
|
||
|
Connected Load/Power
|
33kw
|
|
||
|
Expanded Density
|
4.5-35kg/m3
|
|
||
|
Density Tolerance
|
<±2.5%
|
|
||
|
Over Dimension
|
5800*4200*5000mm
|
|
||
|
Weight
|
4000kg
|
|
||
Specifications of
High Density Granules EPS Machine Making Polystyrene Expanded Beads
1. This machine applies PLC and touch screen, automatic feeding, electronic weighing, temperature control, material level control to realize automatic and continuous production.
2. Electronic weighing system and material level control system ensure the density of the foamed beads, which make the beads uniform and keep the density tolerance within 2%.
3. Japan original pressure reducing valve controls the steam pressure of the chamber, which ensures the outcome pressure of the valve constant and the inner temperature stable, which keeps the foamed material equal and prevents the beads agglomerate because of the bad temperature control.
4. Automatic material charging system improves efficiency and reduces labor intensity.
5. The closed constant pressure foaming barrel has high heating efficiency. It can save more than 50% energy compared to the continuous pre-expander.
6. Automatic discharging from the pre-expander, which can automatically filter and crush the ball material and transport the foamed material to silos.
7. Most of the main components are world-famous brand, with reliable performance, stable quality, long service life and low maintenance cost.
Note:
*Korean vibration sensor is optional
*Proportional valves of steam and compressed air are optional
