Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
DAPU
-
Model Number:
-
DP-GW-2500B
-
Weight (KG):
-
9800
-
Power (kW):
-
7
-
Wire diameter:
-
3-8mm/5-12mm
-
Mesh opening size:
-
100*100-300*300mm
-
Mesh width:
-
Max.2.5m/3m
-
Voltage:
-
220V/380V/415V/440V
-
Application:
-
Construction
-
Material:
-
Rebar/Round bar
-
Welding speed:
-
Max.80-100 times/min
-
Final product:
-
Steel rebar sheet
Quick Details
-
Wire Diameter (mm):
-
5 - 12 mm
-
Warranty of core components:
-
2 Years
-
Production Capacity:
-
30 sets/month
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
DAPU
-
Model Number:
-
DP-GW-2500B
-
Weight (KG):
-
9800
-
Power (kW):
-
7
-
Wire diameter:
-
3-8mm/5-12mm
-
Mesh opening size:
-
100*100-300*300mm
-
Mesh width:
-
Max.2.5m/3m
-
Voltage:
-
220V/380V/415V/440V
-
Application:
-
Construction
-
Material:
-
Rebar/Round bar
-
Welding speed:
-
Max.80-100 times/min
-
Final product:
-
Steel rebar sheet

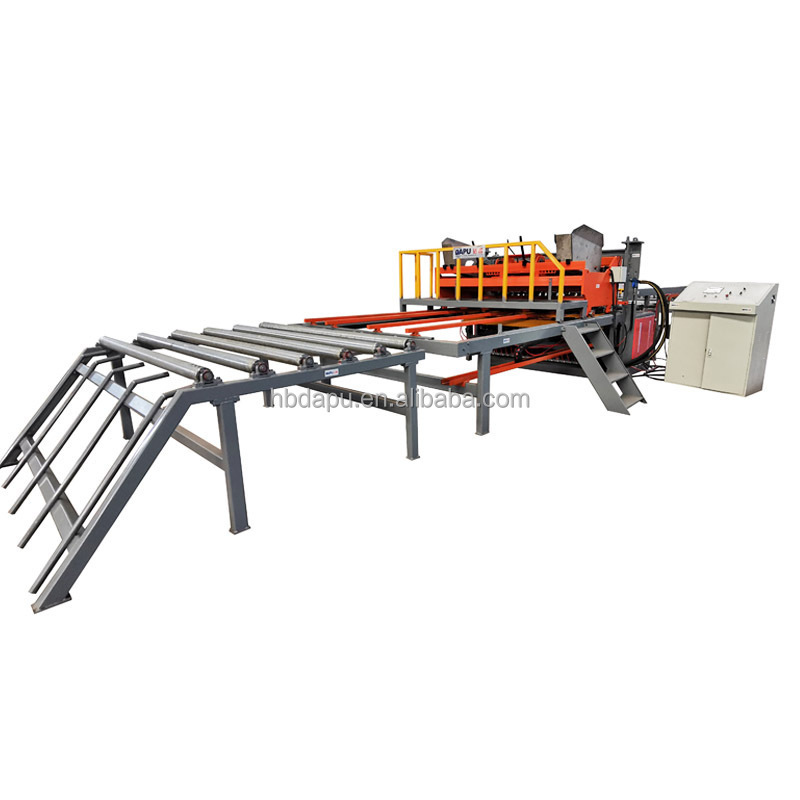

This is our new type CRB550 concrete steel rebar mesh welding machine 5-12mm/3-8mm DP-GW-2500B, which adopts SMC bally air cylinders to control welding, the welding speed can be up to max.80-100 times/min. We can also supply other types of wire mesh welding machines 5-12mm and 3-8mm.
| Model | DP-FM-2500A+ | DP-FM-3000A+ | DP-GW-2500B | DP-GW-3000B |
| Air cylinder type | SMC 80 double acting air cylinder | SMC 90 single acting bally air cylinder | ||
| Wire diameter | 3-8mm | 5-12mm | ||
| Longitude wire space | 100-300mm | 100-300mm | ||
| Cross wire space | Min.50mm | Min.50mm | ||
| Mesh length | Max.12m | Max.12m | ||
| Mesh width | Max.2500mm | Max.3000mm | Max.2500mm | Max.3000mm |
| Welding electrode | Max.24pcs | Max.31pcs | Max.24pcs | Max.31pcs |
| Welding transformer | 150kva*6pcs | 150kva*8pcs | 150kva*12pcs | 150kva*16pcs |
| Welding speed | Max.100 times/min | Max.80-100 times/min | ||
| Weight | 5.2T | 7T | 8.5T | 9.8T |
| Main machine size | 12.12*5.4*2.1m | 12.13*6*2.1m | 12.13*5.4*2.1m | 12.13*6*2.1m |
SMC (Japan) custom-made 90 bally air cylinders |
|
|
1. Output power increase 20%. 2. Air consumption save 30%. 3. Air cylinder length reduce 60%, short stroke. 4. Welding pressure: 570KG. 5. Piston rod don't rotate. 6. Single-acting cylinder, connect with electromagnetic valve by one air pipe. 7. Compared with old type machine, total power consumption saves 50%. 8. The welding speed can be up to max.80-100 times/min. |
|
Machine Details
Electric Parts
|
