Quick Details
-
Material:
-
Spray-paint Carbon Steel
-
Size:
-
2090*800*625(mm)
-
Weight:
-
About 80kg
-
Number of Shelves:
-
5
-
System:
-
Android 5.1.1
-
Industrial Computer:
-
RK3288/4 cores frequency 1.8Ghz
-
Programmable Controller:
-
Domestic
-
Electric Control System:
-
With Domestic PLC
-
RFID Reader:
-
Domestic (With Imported R2000 chip)
-
Number of Tag Reading:
-
200+pcs
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Syncotek
-
Model Number:
-
SR-RUX262
-
Material:
-
Spray-paint Carbon Steel
-
Size:
-
2090*800*625(mm)
-
Weight:
-
About 80kg
-
Number of Shelves:
-
5
-
System:
-
Android 5.1.1
-
Industrial Computer:
-
RK3288/4 cores frequency 1.8Ghz
-
Programmable Controller:
-
Domestic
-
Electric Control System:
-
With Domestic PLC
-
RFID Reader:
-
Domestic (With Imported R2000 chip)
-
Number of Tag Reading:
-
200+pcs
What is overview of 24 Hours Self-service Library Smart UHF RFID Locker Boxes Vending Machine for Books?

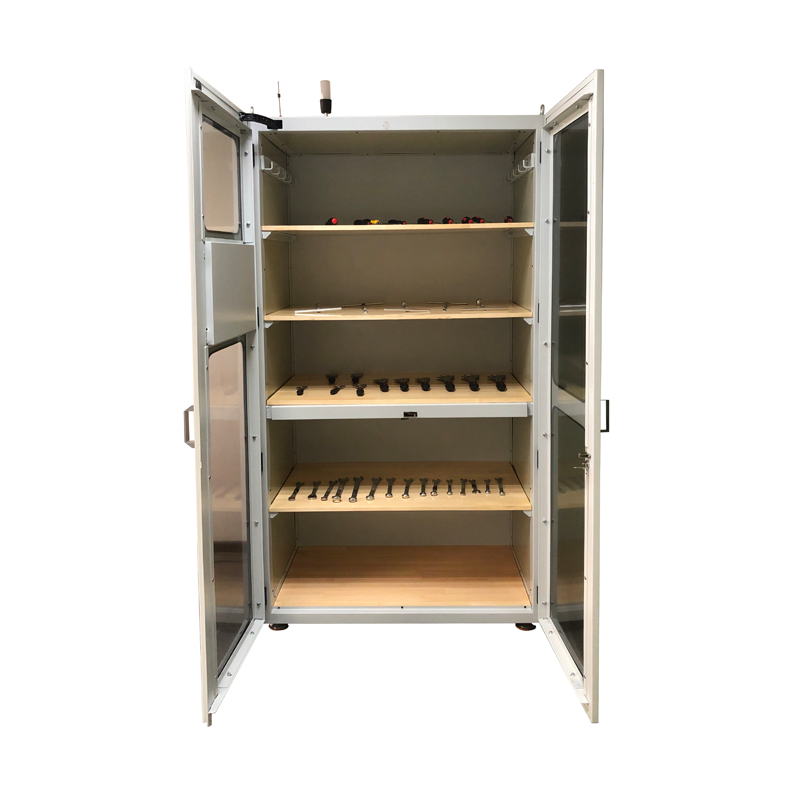

SR-RUX262 RFID Smart Tool Cabinet is one of the Syncotek's self-developed RFID tool management solutions. The cabinet integrates various intelligent devices such as RFID reader, RFID antenna, Android all-in-one PC, IC card reader, humiture controller, etc. It can automatically manage the tools with RFID tags inside the cabinet. The user scans his IC card to unlock the door → take out/put in→ close the door to automatically confirm the operation. The system will show the user’s information, tool details, borrowing/returning time and other information. There are also daily/monthly checking and other functions, which can help collect the data of quantity, types and status of tools in real time, realizing efficient and intelligent management of tools.
Industry Application: It is mainly used in aviation, electric power, fire protection, machinery, railway and other industries, realizing automated and fast borrowing, returning, positioning, searching and maintenance of tools.
What is the key features of 24 Hours Self-service Library Smart UHF RFID Locker Boxes Vending Machine for Books?
* Safety: The tool cabinet can be equipped with a humiture controller (optional). If the tool does not reach the standard, the tool will be locked and cannot be taken out from the tool cabinet so that the accident can be avoided from the source.
* Informatization: The tools will be checked in real time, and the parameters of each tool will be recorded, making the tool life period visible.
* Automated: Greatly simplifies the processes of scanning, inventory, and logging, enabling fast and batch management.
* Efficient: "Automated + informationized" replaces the traditional manual work. The computer realizes automatic data acquisition, which greatly saves labor costs and improves work efficiency.
* Intelligent: If the tool is not returned in time, the system will automatically alert, create a report and send to the relevant person in charge. And if a tool is lost, it can be manually searched with the help of RFID handheld terminal.
* Real Time Monitoring: The system realizes the function of remote real-time monitoring, including the inventory status of tools, borrowing/returning time, the date for next checking, etc. And the data can be monitored on the web page in real time.
* Visible: Glass door design makes the tool status visible, which can be directly confirmed by eyes without opening the door.
What is the specification of 24 Hours Self-service Library Smart UHF RFID Locker Boxes Vending Machine for Books?
|
24 Hours Self-service Library Smart UHF RFID Locker Boxes Vending Machine for Books SR-RUX262 |
|
| System | Android 5.1.1 |
| Industrial Computer | RK3288/4 cores frequency 1.8Ghz |
| Programmable Controller | Domestic |
| Electric Control System | With Domestic PLC |
| RFID Reader | Domestic (With Imported R2000 chip) |
| Number of Tag Reading | 200+pcs |
| Reading Efficiency | 3~5 seconds |
| Reading Mode | Motionless |
| Screen | 10.1-inch capacitive screen 1280*800(16:9) |
| RAM | 2G |
| Storage | 8G |
| Communication | TCP/IP, WIFI, 4G |
| Shielding Distance | 20~50CM |
| Opening Speed | 1 second |
| Efficiency | Manual |
| Number of Shelves | 5 |
| Shelf Height | 380mm(Adjustable) |
| Shelf Depth | 550mm |
| Load Bearing Capacity | 50KG |
| Current | 5A |
| Voltage | 220VAC(±10%) 50±3HZ |
| Power | 50W |
| Weight | About 100kg |
| Size | 2000*1100*600(mm) |
| Enclosure Material | Spray-paint Carbon Steel |
| Working Temprature | -20°C to +60°C |
| Working Humidity | 20%~85%(no condensation) |
