Quick Details
-
Engine Capacity:
-
6 - 8L
-
Gross Vehicle Weight:
-
25000
-
Drive Wheel:
-
6x4
-
Place of Origin:
-
China
-
Product name:
-
DONGFENG Refrigerated Truck
-
Rated capacity (kg):
-
15405kg
-
Wheelbase (mm):
-
1800+4100
-
Tires dimension:
-
10.00R20
-
Engine:
-
ISD210 50
-
Color:
-
Optinal
-
Warranty:
-
1 Year
-
Max. speed (km/h):
-
98km/h
-
Applicable Industries:
-
Manufacturing Plant, Construction works , Energy & Mining Condition
-
After-sales Service Provided:
-
Field installation, commissioning and training, Field maintenance and
Quick Details
-
Condition:
-
New
-
Horsepower:
-
251 - 350hp
-
Emission Standard:
-
EURO 5
-
Engine Capacity:
-
6 - 8L
-
Gross Vehicle Weight:
-
25000
-
Drive Wheel:
-
6x4
-
Place of Origin:
-
China
-
Product name:
-
DONGFENG Refrigerated Truck
-
Rated capacity (kg):
-
15405kg
-
Wheelbase (mm):
-
1800+4100
-
Tires dimension:
-
10.00R20
-
Engine:
-
ISD210 50
-
Color:
-
Optinal
-
Warranty:
-
1 Year
-
Max. speed (km/h):
-
98km/h
-
Applicable Industries:
-
Manufacturing Plant, Construction works , Energy & Mining Condition
-
After-sales Service Provided:
-
Field installation, commissioning and training, Field maintenance and

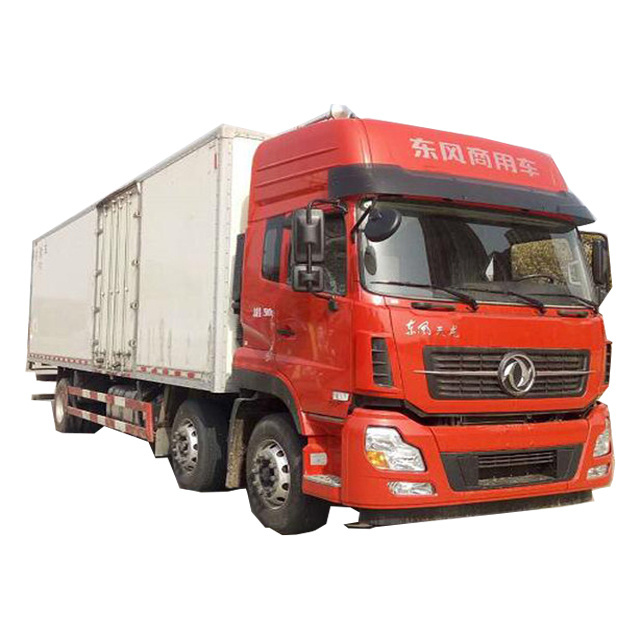

China Excellent Quality DONGFENG 8x4 Professional Refrigerated Closed Van Truck in Philippines
Our company will offer you the high quality proudcts with a low price, Quick delivery,and professional after-sale service.
Product Description:
Dongfeng Chinese refrigerated van (fridge / reefer truck) DFH5250XLCBXV manufactured by Dongfeng Commercial Vehicle Co., Ltd. (a commercial vehicle manufacturer in Wuhan, Hubei Province, China; manufactures a range of Dongfeng vehicles, including refrigerated vans (fridge / reefer trucks)); the refrigerated van (fridge / reefer truck) based on DFH1250BXV chassis. Cab seating capacity is 3, max. speed is 98 km/h, gross vehicle weight is 25000 kg, diesel fuel, engine: ISD210 50 / ISD245 50 / ISD270 50 / ISB210 50 / ISD285 50, environmental standard is GB17691-2005 National V / Euro 5, GB3847-2005, curb weight is of the China refrigerated truck 9400, 9170 kg, with ABS, tires are 10.00-20, 10.00R20, 295/80R22.5, cargo body is 6800/7200/7700/8600 × 2450 × 2320/2400/2440 mm, rated capacity is 15405, 15635 kg, wheelbase is 1800+4100, 1800+5000 mm.
|
Dimensions and Weight Specifications of the China refrigerated truck |
|
|
Overall Dimensions of the China refrigerated truck |
|
|
Overall length (mm) |
9200/9600/10100/11100 |
|
Overall width (mm) |
2550/2600 |
|
Overall height (mm) |
3990 |
|
Cargo Body Dimensions |
|
|
Cargo body length (mm) |
6800/7200/7700/8600 |
|
Cargo body width (mm) |
2450 |
|
Cargo body height (mm) |
2320/2400/2440 |
|
Weights, Ground Pressure and Capacity |
|
|
Rated capacity (kg) |
15405, 15635 |
|
Curb weight of the China refrigerated truck (kg) |
9400, 9170 |
|
Gross vehicle weight (kg) |
25000 |
|
Load factor (payload to weight ratio) |
1.65, 1.72 |
|
Axle load distribution (kg) |
7000/7000/11000 |
|
Wheel Base and Track |
|
|
Wheelbase (mm) |
1800+4100, 1800+5000 |
|
Front track (mm) |
1915/1915, 1955/1955 |
|
Rear track (mm) |
1860 |
|
Front/rear overhang (mm) |
1430/1870, 1430/2270, 1430/2770, 1430/2870 |
|
Angle of Approach and Departure |
|
|
Angle of approach (deg.) |
23 |
|
Angle of departure (deg.) |
11 |
|
Wheels and Tires |
|
|
Tires and Wheels of the China refrigerated truck Dongfeng DFH5250XLCBXV |
|
|
Number of axles |
3 |
|
Number of tires |
8 |
|
Tires dimension |
10.00-20, 10.00R20, 295/80R22.5 |
|
Misc. Specifications |
|
|
Miscellaneous Specifications Dongfeng DFH5250XLCBXV (refrigerated truck) |
|
|
Max. speed |
98 |
|
ABS |
have |
|
Cab seating capacity |
3 |
|
Steering |
steering wheel |
|
Leaf springs |
10 / 10 / 10+8, 10 / 10 / 11+8 |
What we can do for customers:
1. The satisfied product with high level standard;
2. The full aspect service from order to shipping;
3. Give customer most suitable advice when customer has special needs for your transportation or construction;
4. Help customer to get the related spare parts of trailer or tractors if customer needs.
If you need more information, please feel free to contact me !
