Quick Details
-
Brand Name:
-
GOGO
-
Standard or Nonstandard:
-
Standard
-
Product name:
-
garden irrigation solenoid valves
-
Type:
-
Normal Colse Solenoid Valve, SOLENOID VALVES
-
Connection:
-
Female Thread
-
Voltage:
-
DC3V
-
Working Medium:
-
water
-
Working temperature:
-
0~40°C
Quick Details
-
Port Size:
-
G1"
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
GGK1A04AY-3T
-
Brand Name:
-
GOGO
-
Standard or Nonstandard:
-
Standard
-
Product name:
-
garden irrigation solenoid valves
-
Type:
-
Normal Colse Solenoid Valve, SOLENOID VALVES
-
Connection:
-
Female Thread
-
Voltage:
-
DC3V
-
Working Medium:
-
water
-
Working temperature:
-
0~40°C
3V Bry battery with rain sensor Automatic drip irrigation system solenoid valve timer for Garden Automatic Irrigation System
Note : Rainwater induction solenoid valve, automatically stop irrigation when it rains.
1.Specification
Diameter : DN25
Rated voltage: DC3V
Switch form: positive pulse open valve, negative pulse off valve
Pulse width: 30-ms
Working pressure: 0.02 ~ 0.8Mpa
Working medium: liquid, water, gas
Medium temperature: 0 ~ 70 ºC
Ambient temperature: -10 ~ 50 ºC
Life: 500,000 times
Response time: 0.01S
Electrical strength: 1500V, 50Hz, Imim
Waterproof: IP68
Sealing material: VITO
Body Material: Reinforced nylon PA66
Controller
| Project | Function Parameters | ||
| Display | LCD,Standard Time,Status of irrigation control,Memory function | ||
| Power | 1.5V Dry battery | ||
| Irrigation time | Minimum:1min; Maximum:9hours and 59min | ||
| Irrigation frequency | min 1 time/day,max 16 times/day,max 1 time/30 days | ||
| Working pressure | 0-400KPA | ||
| Working temperature | 0-40 °c | ||
| Program | Single/multiple program,routine,cycle,single day,multiple days | ||
| Switch | Automatic/Manual | ||
| Function of remote control | Signal available within 15 meters | ||
Assembly procedure

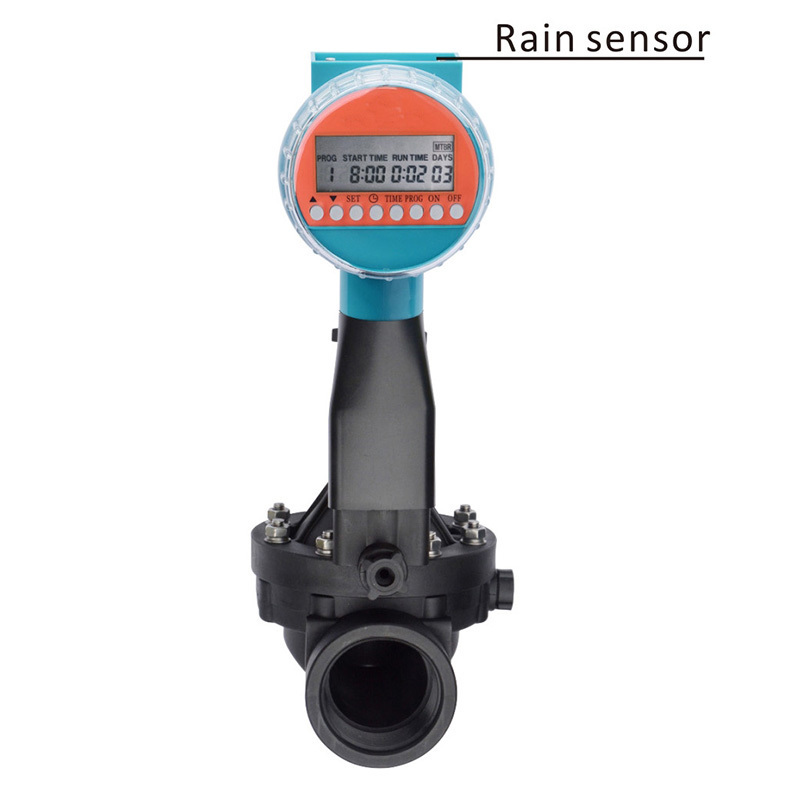

2. Picture :
