Quick Details
-
Chip Material:
-
INGAN
-
Input Voltage(V):
-
3v
-
Product Weight（kg）:
-
0.003
-
Luminous Intensity:
-
120-140lm
-
Luminous Flux(lm):
-
120-140lm
-
Optical Attenuation(%):
-
3
-
Power Dissipation:
-
1
-
Viewing Angle(°):
-
120
-
Color Rendering Index(Ra):
-
80
-
Color Temperature:
-
5500-6000K
-
Operating Temperature(℃):
-
-30 - 60
-
Storage Temperature(℃):
-
-30 - 85
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
RZXLED
-
Chip Brand:
-
TaiWan Epistar Chip
-
Product name:
-

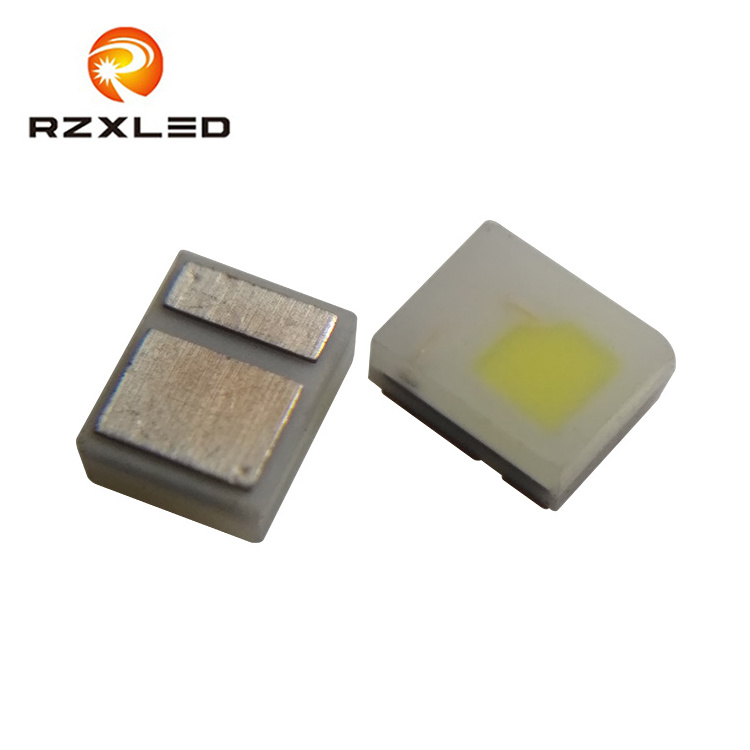

2016 Smd Led
-
Application:
-
Camera Flash and Video Light Torch Light
-
Forward Current:
-
350MA
-
Forward Voltage:
-
2.8-3.4V
-
Package:
-
Surface Mount
-
Size:
-
2.0*1.6*0.7MM
-
CCT:
-
5000-6000K
-
Package Type:
-
Suface Mount Package
Quick Details
-
Warranty(Year):
-
1-Year
-
Support Dimmer:
-
Yes
-
Luminous Efficacy(lm/w):
-
130
-
Chip Material:
-
INGAN
-
Input Voltage(V):
-
3v
-
Product Weight（kg）:
-
0.003
-
Luminous Intensity:
-
120-140lm
-
Luminous Flux(lm):
-
120-140lm
-
Optical Attenuation(%):
-
3
-
Power Dissipation:
-
1
-
Viewing Angle(°):
-
120
-
Color Rendering Index(Ra):
-
80
-
Color Temperature:
-
5500-6000K
-
Operating Temperature(℃):
-
-30 - 60
-
Storage Temperature(℃):
-
-30 - 85
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
RZXLED
-
Chip Brand:
-
TaiWan Epistar Chip
-
Product name:
-
2016 Smd Led
-
Application:
-
Camera Flash and Video Light Torch Light
-
Forward Current:
-
350MA
-
Forward Voltage:
-
2.8-3.4V
-
Package:
-
Surface Mount
-
Size:
-
2.0*1.6*0.7MM
-
CCT:
-
5000-6000K
-
Package Type:
-
Suface Mount Package
Specifications:1W
1. Brand new and high quality.
2. LED emitter: 1W. Forward Current: 350mA
3. Emitted color: White 5000-5500K /5500-6000K
4. Color temperature: White 5000-5500K/5500-6000K
5. DC forward voltage (VF):2.8 -3.0-3.2-3.4V ;
6. Beam angle: 120 degrees.
7. LifeSpan time: > 50,000 hours.
8. Intensity luminous: 120-240LM
9. RoHs compliant, lead free.
working temperature: - 20℃ ~ 85℃
storage temperature:
- 30℃ ~ 100℃
size:2.0*1.6*0.75MM
Package included:2000PCS/Reel
Applications :
1. Mobile Phone Camera Flash(Camera flash light /strobe light for mobile devices )
2. Torch light for DV(Digital Video) application
3. Indoor lighting applications
4. Signal and symbol luminaries for orientation maker lights (e.g. steps, exit ways, etc.)
5. TFT backlighting
6. Exterior and interior illumination applications
7. Decorative and Entertainment Lighting
8. Exterior and interior automotive illumination
Note :
They may burn out if they receive enough power with no cooling , And if you use it for a long time,
please give them colling!!!
2016(1W 3V)
|
Dimension |
2.0x1.6x0.75mm |
|
Power Consumption |
1W 3V |
|
Color Temperature |
5000K-5500K/5500-6000K |
|
Efficiency |
110 lm/W(WW)/120 lm/W(CW) |
|
Lumens Output |
120 lm(WW)/140 lm(CW) |
|
CRI |
80 |
|
Application |
Mobile phone flash |
