Quick Details
-
Brand Name:
-
HASUNG
-
Voltage:
-
380V, 380V
-
Power:
-
50KW
-
Dimension(L*W*H):
-
1530X800X1060mm
-
Weight (KG):
-
350
-
Brand:
-
Hasung
-
Product name:
-
Vacuum Gold Ingot Casting Machine
-
power:
-
50KW
-
Application:
-
Jewelry
-
Usage:
-
Jewelry Making
-
Capacity:
-
4KG, 4pcs 1kg gold bar
-
Type:
-
Casting Machine
-
Quality:
-
High-quality
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Machine Type:
-
CASTING
-
Marketing Type:
-
New Product 2024
-
Brand Name:
-
HASUNG
-
Voltage:
-
380V, 380V
-
Power:
-
50KW
-
Dimension(L*W*H):
-
1530X800X1060mm
-
Weight (KG):
-
350
-
Brand:
-
Hasung
-
Product name:
-
Vacuum Gold Ingot Casting Machine
-
power:
-
50KW
-
Application:
-
Jewelry
-
Usage:
-
Jewelry Making
-
Capacity:
-
4KG, 4pcs 1kg gold bar
-
Type:
-
Casting Machine
-
Quality:
-
High-quality
Product Description
Product Configurations
|
Model No.
|
HS-GV4
|
HS-GV2
|
|
|
Power Supply
|
380V ,50/60Hz 3 Phases
|
|
|
|
Power Input
|
50KW
|
|
|
|
Max Temp
|
1600°C
|
|
|
|
Overall Casting Time
|
10-15 min
|
8 min.
|
|
|
Shielding Gas
|
Argon / Nitrogen
|
|
|
|
Temperature Accuracy
|
±1°C
|
|
|
|
Capacity(Gold)
|
4kg : 4 pcs 1kg or customized
|
2kg (Gold); 2pcs 1kg or 4pcs 0.5kg or more.
|
|
|
Application
|
Gold, silver, copper
|
|
|
|
Vacuum
|
High degree vacuum pump / German Vacuum Pump, Vacuum degree-100KPA(optional)
|
|
|
|
Operation method
|
One-key operation to complete the entire process, POKA YOKE foolproof system
|
|
|
|
Control system
|
Mitsubishi PLC+Human-machine interface intelligent control system
|
|
|
|
Cooling type
|
Water chiller(sold separately) or Running water
|
|
|
|
Dimensions
|
1530X800X1060mm
|
|
|
|
Weight
|
350KG
|
|
|

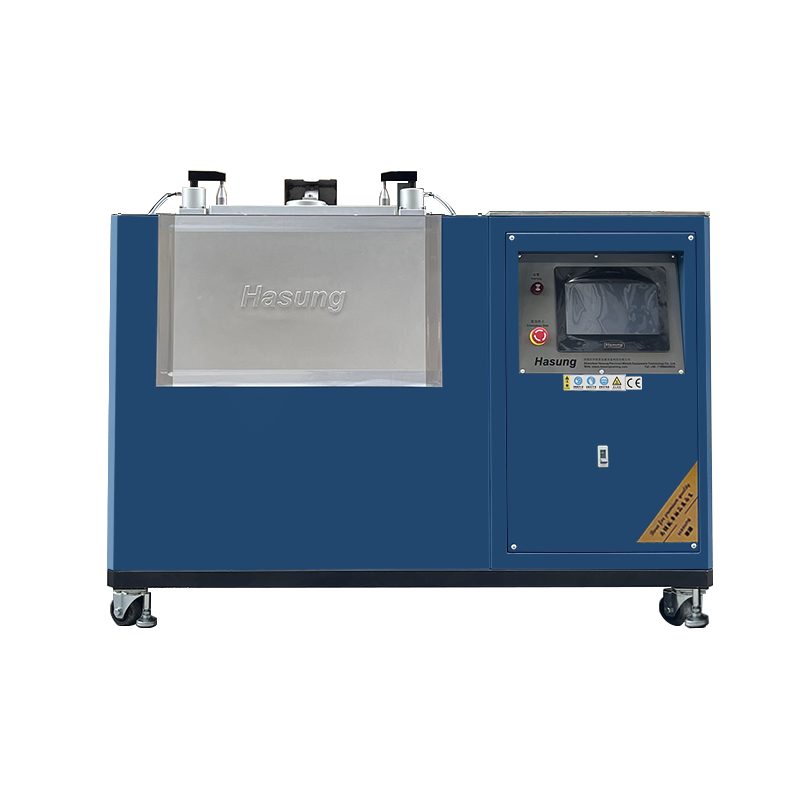

Automatic Opening Cover Gold Bar Vacuum Casting Machine
1.Intelligent Vaccum Gold bar Casting : 1.Presssing one key-- Automatic close the cover--Automatic casting and cooling--Automatic open the cover-- 2.Take out the Shiny gold Bar
2.Operation method:One-key operation to complete the entire process, POKA YOKE foolproof system
3.Control system:Mitsubishi PLC+Human-machine interface intelligent control system (optional)
4. Using German high-frequency heating technology, automatic frequency tracking and multiple protection technologies, it can be melted in a short time, energy saving, and high work efficiency.
5. The closed type/channel type + vacuum/inert gas protection melting chamber can prevent the oxidation of molten raw materials and the mixing of impurities. This equipment is suitable for the casting of high-purity metal materials or elemental metals that are easily oxidized.
6. Adopt closed/channel type + vacuum/inert gas to protect the melting chamber, melting and cooling are performed at the same time, the time is halved and the production efficiency is increased.
7. Melting in an inert gas environment, the oxidation loss of the carbon mold is almost negligible.
8. With the electromagnetic stirring function under the protection of inert gas, there is no segregation in color.
9. It adopts Mistake Proofing (anti-fool) automatic control system, which is easier to use.
10. Using PID temperature control system, the temperature is more accurate (±1°C).
11. HS-GV gold and silver ingot forming equipment/full-automatic production line is independently developed and manufactured with advanced technical level products for the smelting and casting of gold, silver, copper and other alloys.
12. This equipment uses Mitsubishi PLC program control system, SMC pneumatic and Panasonic servo motor drive and other domestic and foreign brand components.
13. Melting, electromagnetic stirring, and refrigeration in a closed/channel + vacuum/inert gas protection melting room, so that the product has the characteristics of no oxidation, low loss, no porosity, no segregation in color, and beautiful appearance.
1.Intelligent Vaccum Gold bar Casting : 1.Presssing one key-- Automatic close the cover--Automatic casting and cooling--Automatic open the cover-- 2.Take out the Shiny gold Bar
2.Operation method:One-key operation to complete the entire process, POKA YOKE foolproof system
3.Control system:Mitsubishi PLC+Human-machine interface intelligent control system (optional)
4. Using German high-frequency heating technology, automatic frequency tracking and multiple protection technologies, it can be melted in a short time, energy saving, and high work efficiency.
5. The closed type/channel type + vacuum/inert gas protection melting chamber can prevent the oxidation of molten raw materials and the mixing of impurities. This equipment is suitable for the casting of high-purity metal materials or elemental metals that are easily oxidized.
6. Adopt closed/channel type + vacuum/inert gas to protect the melting chamber, melting and cooling are performed at the same time, the time is halved and the production efficiency is increased.
7. Melting in an inert gas environment, the oxidation loss of the carbon mold is almost negligible.
8. With the electromagnetic stirring function under the protection of inert gas, there is no segregation in color.
9. It adopts Mistake Proofing (anti-fool) automatic control system, which is easier to use.
10. Using PID temperature control system, the temperature is more accurate (±1°C).
11. HS-GV gold and silver ingot forming equipment/full-automatic production line is independently developed and manufactured with advanced technical level products for the smelting and casting of gold, silver, copper and other alloys.
12. This equipment uses Mitsubishi PLC program control system, SMC pneumatic and Panasonic servo motor drive and other domestic and foreign brand components.
13. Melting, electromagnetic stirring, and refrigeration in a closed/channel + vacuum/inert gas protection melting room, so that the product has the characteristics of no oxidation, low loss, no porosity, no segregation in color, and beautiful appearance.
