Quick Details
-
Brand Name:
-
kasen
-
Voltage:
-
380V50Hz
-
Dimension(L*W*H):
-
2600*2400*1800
-
Weight (KG):
-
2800
-
Power (kW):
-
1.5
-
Product name:
-

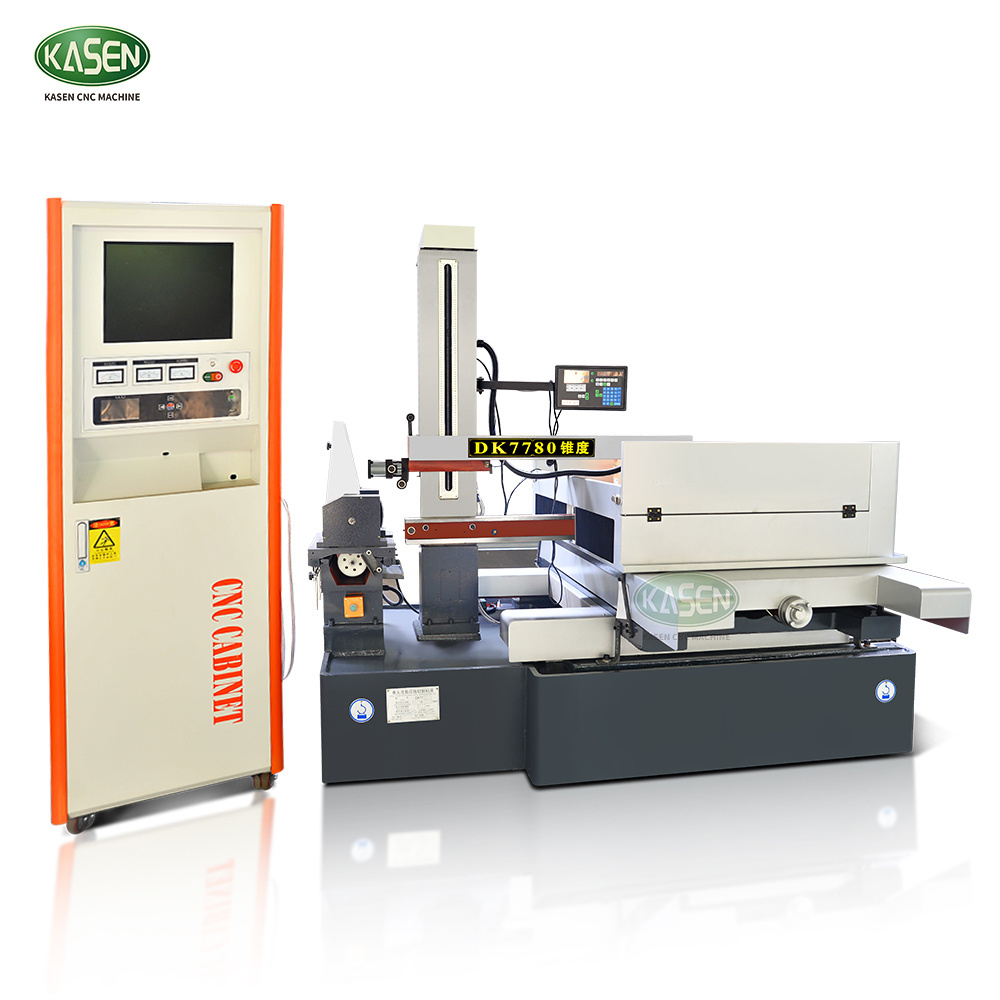

DK7780 Desktop Dk77 Series Machine Dk7780 Cnc Edm Wire Cutting Machine
-
Key word:
-
Edm Wire Cut Machine
-
Type:
-
Fast Wire Cutting
-
Maximum thickness of cutting workpieces:
-
0-800mm adjustable
-
Machining table size:
-
≥2000*1500
-
Maximum cutting efficiency:
-
≥130mm2/min
-
Maximum taper of cutting workpieces:
-
± 4 ° (up to 100mm)
-
Optimum roughness:
-
1.6μm-3.2 μm
-
Workbench dimensions:
-
≥120
-
Wire Diameter (mm):
-
0.10-0.20
Quick Details
-
Marketing Type:
-
Hot Product 2023
-
Place of Origin:
-
Shandong, China
-
Year:
-
2024
-
Brand Name:
-
kasen
-
Voltage:
-
380V50Hz
-
Dimension(L*W*H):
-
2600*2400*1800
-
Weight (KG):
-
2800
-
Power (kW):
-
1.5
-
Product name:
-
DK7780 Desktop Dk77 Series Machine Dk7780 Cnc Edm Wire Cutting Machine
-
Key word:
-
Edm Wire Cut Machine
-
Type:
-
Fast Wire Cutting
-
Maximum thickness of cutting workpieces:
-
0-800mm adjustable
-
Machining table size:
-
≥2000*1500
-
Maximum cutting efficiency:
-
≥130mm2/min
-
Maximum taper of cutting workpieces:
-
± 4 ° (up to 100mm)
-
Optimum roughness:
-
1.6μm-3.2 μm
-
Workbench dimensions:
-
≥120
-
Wire Diameter (mm):
-
0.10-0.20
features:
The company produces ± 30 ° and ± 45 ° swing large taper machine tools and CNC high-precision medium-speed WEDM machine tools (accuracy ≤ ± 0.005mm, roughness ≤ 1.0 μ m）。
Main parameters of DK77 series machine tools:
1. Standard maximum cutting taper: ± 6 °/80mm; (± 15 °, ± 30 °, ± 45 ° optional)
2. Accuracy ≤ 0.02mm, in line with GB7926-2005 standard; (If equipped with linear guide rail, the accuracy can reach 0.01mm)
3. Optimal surface roughness ≤ Ra2.5 μ M (single cut), Ra1.5 μ M (multiple cutting);
4. Molybdenum wire diameter: 0.1-0.2mm;
5. Maximum cutting speed ≥ 120mm ^ 2/min;
6. Voltage: 3-phase 380V (single-phase 220V, 3-phase 220V or other voltages can be customized), power: 1.5KW;
7.Working fluid:Water-based emulsion
|
Model
|
Worktable travel(mm)
|
Worktable size(mm)
|
Max. cutting thickness(mm)
|
Max. load(kg)
|
Dimensions(mm)
|
|
DK7720
|
200*250
|
420*270
|
200
|
100
|
1250*950*1250
|
|
DK7725
|
250*320
|
520*340
|
300
|
200
|
1450*900*1500
|
|
DK7735(32)
|
350(320)*450(400)
|
710*460
|
400
|
300
|
1400*1100*1600
|
|
DK7745(40)
|
450(400)*550(500)
|
810*570
|
400
|
450
|
1600*1200*1600
|
|
DK7745F(40F)
|
450(400)*630
|
950*600
|
400/600
|
600
|
1600*1580*1600
|
|
DK7755(50)
|
550(500)*650(630)
|
950*650
|
700
|
700
|
2000*1500*1900
|
|
DK7755F(50F)
|
550(500)*800
|
1140*650
|
700
|
700
|
2000*1650*1900
|
|
DK7763
|
630*800
|
1140*750
|
700
|
1000
|
2100*1700*2050
|
|
DK7763F
|
630*1000
|
1350*750
|
700
|
1200
|
2250*1850*2050
|
|
DK7780
|
800*1000
|
1350*980
|
900
|
2000
|
2400*1900*2350
|
|
DK7780F
|
800*1200
|
1600*1050
|
900
|
2400
|
2550*1950*2400
|
|
DK77100
|
1000*1200
|
1600*1100
|
1000
|
2600
|
2850*2500*2500
|
|
DK77100F
|
1000*1400
|
1800*1250
|
1000
|
2800
|
2950*2050*2500
|
|
DK77120
|
1200*1400
|
1800*1350
|
1000
|
3000
|
3050*2750*2500
|
|
DK77120F
|
1200*1600
|
2000*1500
|
1000
|
3500
|
3100*2850*2500
|
|
DK77160
|
1600*1800
|
2000*1700
|
1000
|
4000
|
3250*3000*2500
|
