Quick Details
-
Brand Name:
-
Wanglink
-
Use:
-
FTTX
-
Warranty Time:
-
3 year
-
Key Feature1:
-
PON Module
-
Key Feature2:
-
C+++
-
Key Feature3:
-
For Gpon OLT
-
Certification:
-
CE RoHS FCC
-
Warranty:
-
2 Years
-
Transmission distance:
-
C+++ (TX7-8Dbm)
-
Model:
-
WOR-GPON-OLT-C+++
-
Brand:
-
Wanglink
-
Size:
-
7.4cm*1cm*1cm
-
Product name:
-
GPON SFP PON Module C+++ 7-8Dbm GPON OLT C++
Quick Details
-
Type:
-
OLT
-
Model Number:
-
WOR-GPON-OLT-C+++
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Wanglink
-
Use:
-
FTTX
-
Warranty Time:
-
3 year
-
Key Feature1:
-
PON Module
-
Key Feature2:
-
C+++
-
Key Feature3:
-
For Gpon OLT
-
Certification:
-
CE RoHS FCC
-
Warranty:
-
2 Years
-
Transmission distance:
-
C+++ (TX7-8Dbm)
-
Model:
-
WOR-GPON-OLT-C+++
-
Brand:
-
Wanglink
-
Size:
-
7.4cm*1cm*1cm
-
Product name:
-
GPON SFP PON Module C+++ 7-8Dbm GPON OLT C++
Recommend Products
Product Description

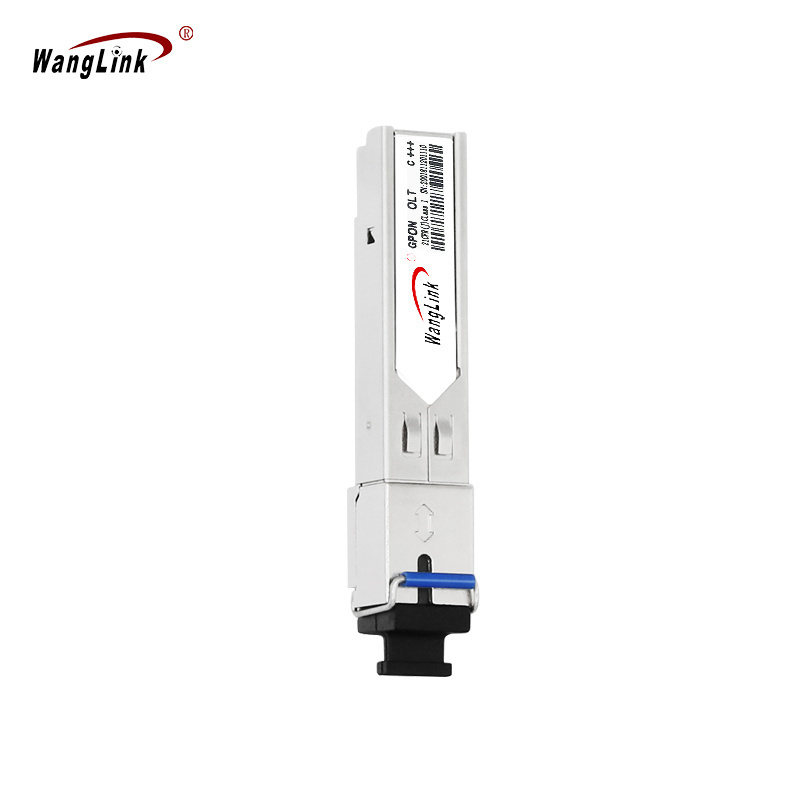

WOR-GPON-SFP OLT C+++ Optical Module
Support ITU-T G.984.2 GPON OLT C++ Enhanced application
Single fiber bi-directional data links with symmetric 2.488Gbps Tx and 1.244Gbps Rx
1490nm continuous-mode transmitter with DFB LD
1310nm burst-mode receiver with APD-TIA
2-wire interface for integrated digital diagnostic Monitoring
Receiver RESET, Signal Detect, RSSI function indication (RESET, RX_SD, RSSI)
SFP package with SC/UPC receptacle optical interface
Single +3.3V power supply
Operation case temperature 0~70°C
RoHS6 compliance
|
Parameter
|
Unit
|
Min.
|
Typical
|
|
Storage Temperature
|
°C
|
-40
|
|
|
Operating Case Temp for C-temp
|
°C
|
0
|
|
|
Operating Case Temp for I-temp
|
°C
|
-40
|
|
|
Operating Relative Humidity
|
%
|
5
|
|
|
Power Supply Voltage
|
V
|
3.15
|
3.3
|
|
Supply Current
|
mA
|
|
|
|
Bit Rate for Tx
|
Gbps
|
2.488
|
|
