Quick Details
-
Brand Name:
-
Taidacent
-
Theory:
-
Current Sensor
-
Output:
-
switch output
-
Description:
-
24V 0-10A AC Current Detection Sensor
-
Operating voltage:
-
DC24V
-
Main chip:
-
op amp, transformer
Quick Details
-
Usage:
-
Current Detection
-
Model Number:
-
24V 0-10A Current Detection Sensor
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Taidacent
-
Theory:
-
Current Sensor
-
Output:
-
switch output
-
Description:
-
24V 0-10A AC Current Detection Sensor
-
Operating voltage:
-
DC24V
-
Main chip:
-
op amp, transformer

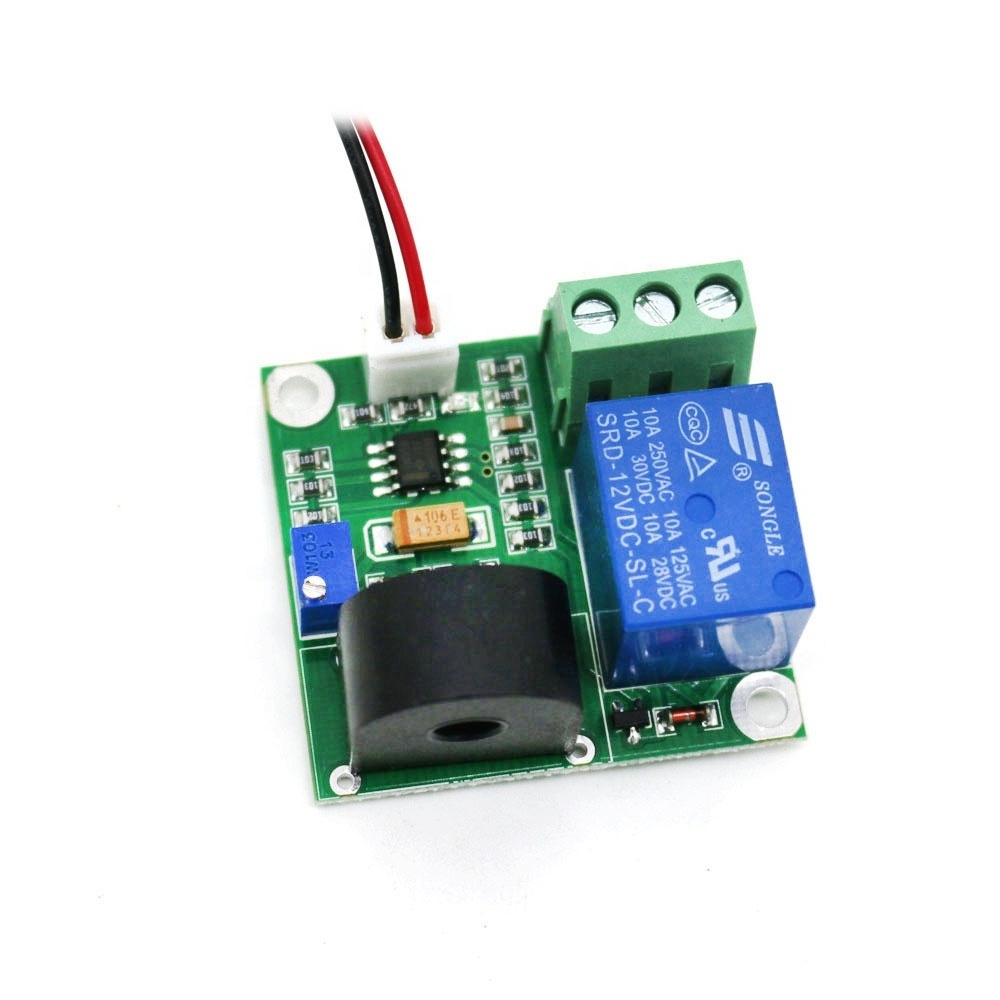

Taidacent 24V 0-10A Current Detection Sensor Switch Output AC Current Signal Sensor for Overcurrent Short-Circuit Protection
Product Description
Detection current can be selected: ±2A/±5A/±7.5A/±20A/±30A/±35A/±60A/±75A/±100A/±150A/±200A, Pls contact us.
Features
1. The output signal is switch output;
2. Current detection range AC0-10A;
3. The current detection resolution can be changed to the resistance parameter setting;
4. Output overcurrent switch signal output;
5. The critical point of overcurrent signal setting is adjustable, and the current resolution is 0.3A (you can change the parameters yourself to adjust);
6. With mounting holes, it is convenient for firmware installation;
Application
AC current equipment such as motor overcurrent detection, locked-rotor protection, short-circuit protection detection, demonstration teaching experiment, etc., is convenient for secondary development; suitable for different loads, including inductive load, capacitive load, resistive load detection.
Specification
|
item
|
value
|
|
Product name
|
AC current detection sensor module 0-10A
|
|
Size
|
40mmX width 38mm
|
|
Main chip
|
op amp, transformer
|
|
Working voltage
|
DC24V
|
Details Images
Packing & Delivery
box package
