Quick Details
-
Model Number:
-
PCM-L02S05-822
-
Specified Types:
-
4S Li-ion/Li-polymer/LiFePO4 Battery Pack
-
Li-ion/Li-polymer Charging Voltage:
-
16.8V
-
LiFePO4 Charging Voltage:
-
14.4V
-
Max. continuous charging current:
-
10a(Max)
-
Maximal continuous discharging current:
-
10a(Max)
-
Discharge overcurrent protection:
-
25±5a(adjustable)
-
Colour of PCM:
-
Green
-
Warranty:
-
12 months
-
Dimension:
-
L59*W52*T15mm
-
Balance:
-
YES
Quick Details
-
Application:
-
Electric Bicycles/Scooters
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
QUAWIN/OEM
-
Model Number:
-
PCM-L02S05-822
-
Specified Types:
-
4S Li-ion/Li-polymer/LiFePO4 Battery Pack
-
Li-ion/Li-polymer Charging Voltage:
-
16.8V
-
LiFePO4 Charging Voltage:
-
14.4V
-
Max. continuous charging current:
-
10a(Max)
-
Maximal continuous discharging current:
-
10a(Max)
-
Discharge overcurrent protection:
-
25±5a(adjustable)
-
Colour of PCM:
-
Green
-
Warranty:
-
12 months
-
Dimension:
-
L59*W52*T15mm
-
Balance:
-
YES

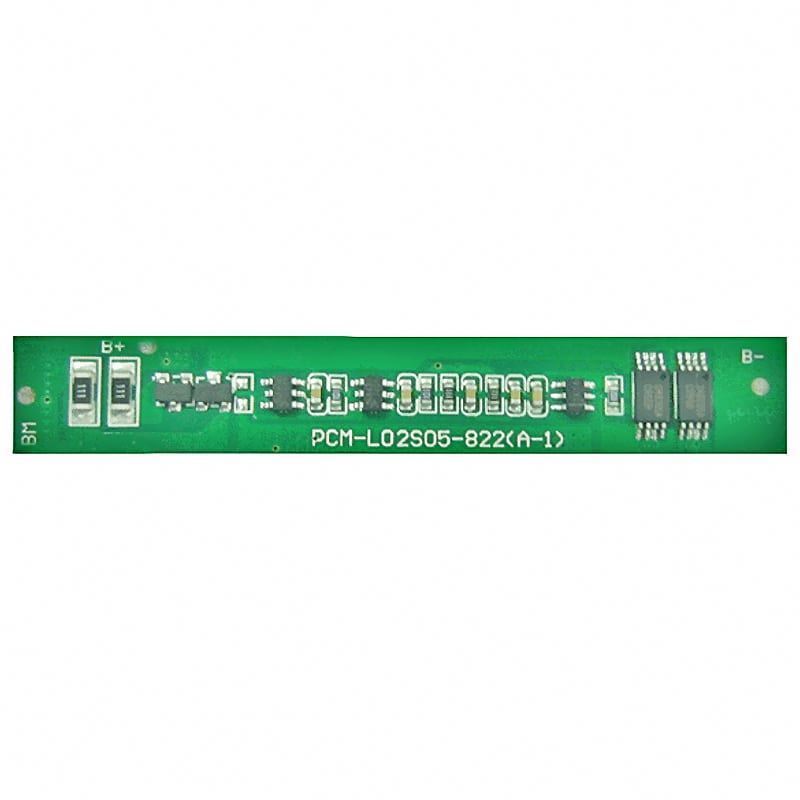

Technical parameter
Product name:Protection Circuit Module
Model No:PCM-L02S05-822
For 2S Lithium-ion/Lithium Polymer/LiFePO4 Battery Packs
Product Feature:
1. Suitable for 2 section Lithium-ion/Lithium Polymer/LiFePO4 Battery Packs;
2. Maximum continuous working current 5A, same interface for charging/discharging;
3. Overcharge, overdischarge, short circuit, overcurrent, temperature protection, etc.;
4. RICOH R5460 or SEIKO S-8242/S-8252 Protection IC;
Model No:PCM-L02S05-822
For 2S Lithium-ion/Lithium Polymer/LiFePO4 Battery Packs
Product Feature:
1. Suitable for 2 section Lithium-ion/Lithium Polymer/LiFePO4 Battery Packs;
2. Maximum continuous working current 5A, same interface for charging/discharging;
3. Overcharge, overdischarge, short circuit, overcurrent, temperature protection, etc.;
4. RICOH R5460 or SEIKO S-8242/S-8252 Protection IC;
| Items | Specifications | ||
| Lithium-ion/Lithium Polymer | LiFePO4 | ||
| Charge | Charging voltage(CC/CV)-2S | CC/CV:8.4V | CC/CV:7.2V |
| Maximal continuous charging current | 5A | ||
| Discharge | Maximal continuous discharging current | 5A | |
| Low current consumption | Current consumption on operation | <20μA | |
| Current consumption at power down | <0.1μA | ||
| Cell-balance | Cell-balance detection voltage | 4.20 ± 0.03 V | 3.60 ± 0.03 V |
| Cell-balance release voltage | 4.20 ± 0.03 V | 3.60 ± 0.03 V | |
| Cell-balance current | 42 ±3mA | 36 ±3mA | |
| Over-charge | Overcharge detection voltage | 4.25±0.025V | 3.900 ± 0.025V |
| Overcharge release voltage | 4.15±0.05V | 3.800 ± 0.050V | |
| Overcharge delay time | 0.5~2S | ||
| Over-discharge | Overdischarge detection voltage | 2.50±0.062V | 2.00±0.080V |
| Overdischarge release voltage | 3.0±0.075V | 2.30±0.100V | |
| Overdischarge delay time | 100~300mS | ||
| Discharge overcurrent | Discharge overcurrent detection voltage | 0.2±0.015V | 0.10±0.015V |
| Discharge overcurrent delay time | 15~35ms | ||
| Discharge overcurrent protection | 12±3a(adjustable) | ||
| Release condition | Cut-off-load | ||
| Short-circuiting protection | Load short-circuiting detection voltage | / | / |
| Detection condition | Exterior short circuit | ||
| Load short-circuiting detection delay time | 200~800μs | ||
| Release condition | Cut-off-load | ||
| Internal resistance | Static Drain-Source On-Resistance | <20mΩ(B- to P-) | |
| Temperature | Wide range of operation temperature | 40 ~ + 85ºC | |
| Storage Temperature Range | -40 ~ +125ºC | ||
| Dimension | L65*W10*T2mm | ||
