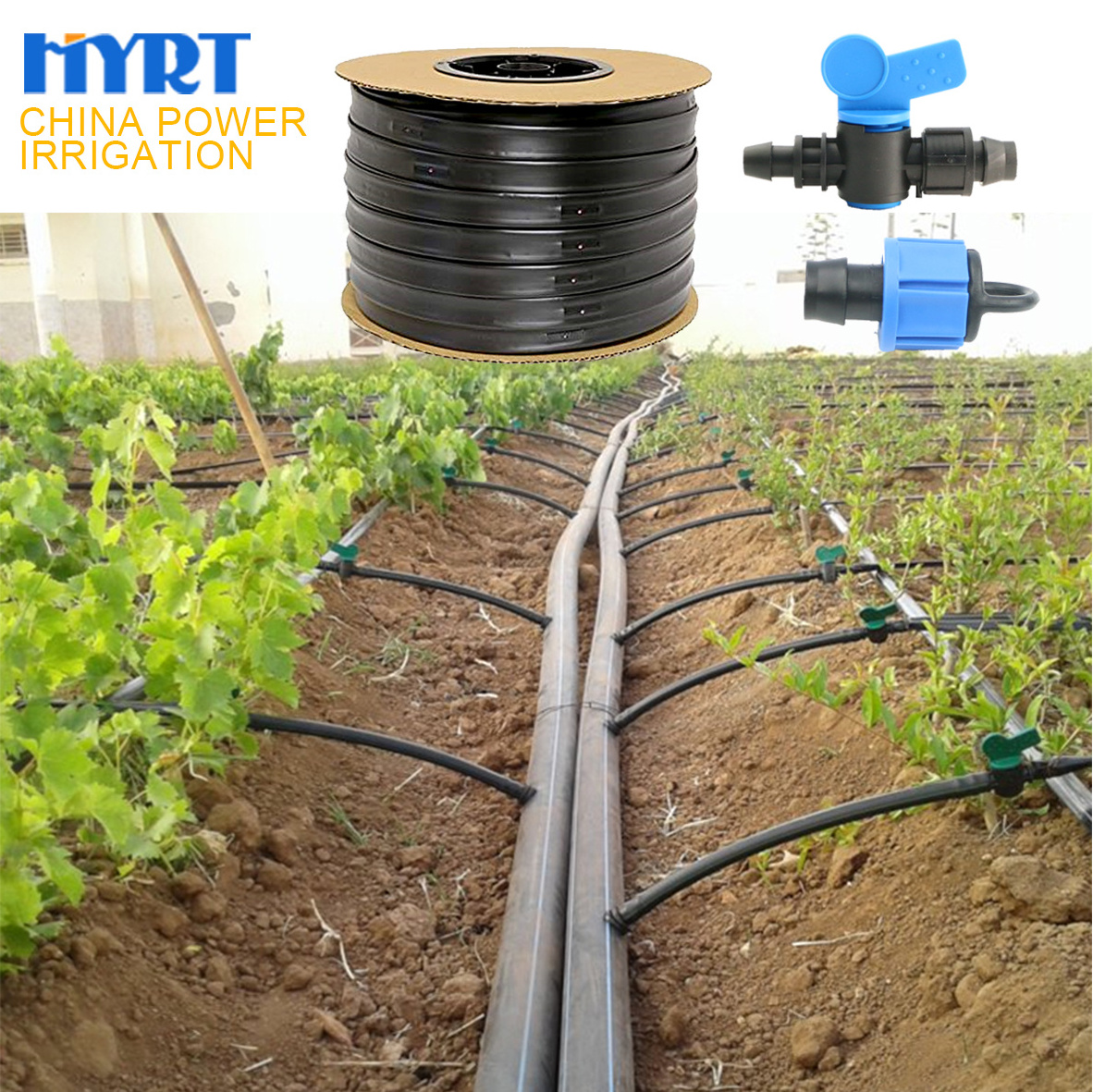

2022 Automatic Agriculture 1 hectares designed drip tape/hose irrigation system

Drip irrigation , is an irrigation method that saves water and fertilizer by allowing water to drip slowly to the roots of plants, either onto the soil surface or directly onto the root zone , through a network of valves , pipes , tubing , and emitters . It is done through narrow tubes that deliver water directly to the base of the plant.

VALVES:for connecting PE pipe, PVC pipe,PVC Layflat valve

Manually or automatically operated control valves are used to turn the water on and off. Automatic control valves are wired to a controller.

FILTER:sand filter(plastic or metal),screen filter,mesh filter

All drip systems need some type of filter to keep dirt from clogging the emitters.

PRESSURE REGULATOR:

Most drip systems operate at low pressure, usually less than 20PSI. Pressure regulators reduce incoming water pressure to the ideal pressure for the drip system.

AIR RELEASE VALVE:

from 3/4 inch to 2inch.

Main PIPE:

rigid PVC pipe,HDPE pipe,PVC LAY FLAT hose

MICRO-TUBING:

ID 3MMx OD 5MM; ID 4MM X 7MM;ID 9MM X OD12MM

DRIP TAPE OR DRIP PIPE:

16MM is the most popular size.Directly deliver water to the plants.

EMITTERS:

These connect to the tubing or can be inside the tubing and deliver water at a slow, consistent rate, usually, 0.5, 1, 2 or 4 gallons per hour.

FLUSH VALVE/CAP:

A flush cap is attached to the end of each irrigation line so that dirt and debris can be flushed out of the irrigation system.
