Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
VINSON
-
Dimension(L*W*H):
-
customized
-
Weight:
-
0.15kg/pcs
-
Working Temperature Range:
-
30 - 850 ℃
-
Core Components:
-
cartridge heater
-
Insulation (when cold):
-
5 Min Ohmios 500 Watts minimun
-
Heat intensity:
-
Not exceeding 30Wcm2
-
Cold areas:
-
Depends on length and diameter
-
Working temperature:
-
950Deg.C Max
-
Resistance wire:
-
Ni80Cr20, FeCrAl etc
-
Resistance tolerance:
-
-5% +5%
-
Max temperature:
-
750 Deg.C
-
Sheath material:
-
Seamless SS304 / SS316/SS321 / Incoloy800
-
Standard leads length:
-
300mm
-
Application:
-
air, liquid,mould
-
After Warranty Service:
-
Video technical support, Online support, Spare parts
-
Local Service Location:
-
None
-
Showroom Location:
-
None
-
After-sales Service Provided:
-
Free spare parts, Video technical support, Online support
-
Marketing Type:
-
Ordinary Product
-
Certification:
-
CE, ISO
Quick Details
-
Type:
-
Air Heater
-
Power Source:
-
Electric
-
Voltage:
-
customized
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
VINSON
-
Dimension(L*W*H):
-
customized
-
Weight:
-
0.15kg/pcs
-
Working Temperature Range:
-
30 - 850 ℃
-
Core Components:
-
cartridge heater
-
Insulation (when cold):
-
5 Min Ohmios 500 Watts minimun
-
Heat intensity:
-
Not exceeding 30Wcm2
-
Cold areas:
-
Depends on length and diameter
-
Working temperature:
-
950Deg.C Max
-
Resistance wire:
-
Ni80Cr20, FeCrAl etc
-
Resistance tolerance:
-
-5% +5%
-
Max temperature:
-
750 Deg.C
-
Sheath material:
-
Seamless SS304 / SS316/SS321 / Incoloy800
-
Standard leads length:
-
300mm
-
Application:
-
air, liquid,mould
-
After Warranty Service:
-
Video technical support, Online support, Spare parts
-
Local Service Location:
-
None
-
Showroom Location:
-
None
-
After-sales Service Provided:
-
Free spare parts, Video technical support, Online support
-
Marketing Type:
-
Ordinary Product
-
Certification:
-
CE, ISO

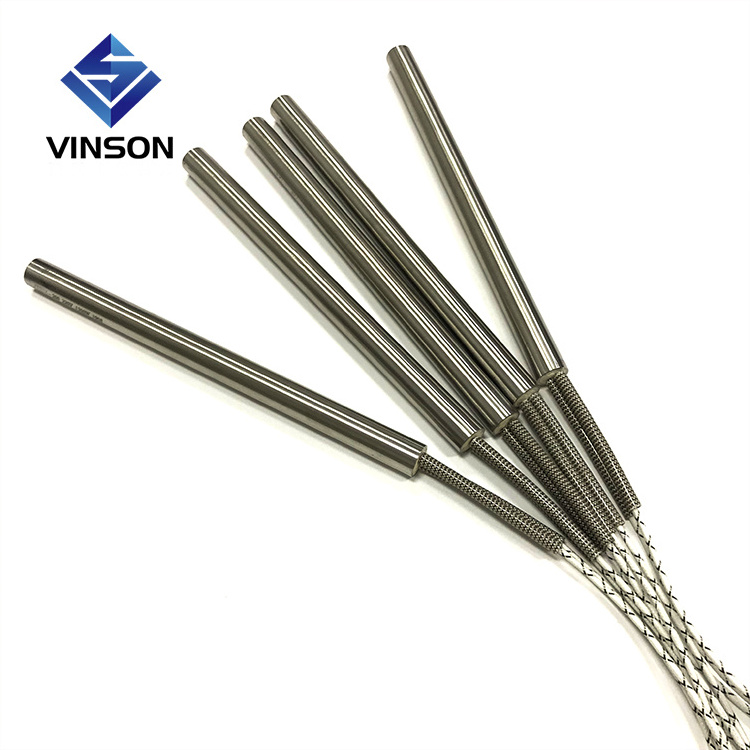

Cartridge heaters are most frequently used for heating metal parts by insertion into drilled holes. For easy installation, the heaters are made slightly undersize relative to their nominal diameter.
Cartridge heaters can be easily specifed to meet the demands of special applications. Simply select from a variety of standard options and features to customize the heater to your specifc needs. For customized engineering or alternative options, contact vinson's sales representative for fast turnaround on your specifcations.
• Diameter and length of the tube
• Watt and volatge
• Where to use
• Material of the tube
• Material and length of lead wire
• Size of thread
Cartridge heaters are an extraordinarily versatile and durable product that is used to heat a myriad of different processes from heavy industrial – plastics and packaging applications to critical care medical devices and analytical test instruments to being used on aircrafts, railcars and trucks. Cartridge heaters are capable of operating at temperatures of up to 750℃ and achieving watt densities of up to 30 watts per square centimeter. Available from stock or custom manufactured to your individual application need, they are available in many different imperial and metric diameters and lengths with many different style terminations, wattage and voltage ratings.
Cartridge heaters are an excellent choice to use as a conductive source for heating solid metal plates, blocks and dies or as a convective heat source for use in a variety of liquids and gases. Cartridge heaters can be used in a vacuum atmosphere with proper design guidelines.
Typical Applications.
• Semiconductor chamber heating
• Semiconductor wire and die bonding
• Freeze protection and deicing of equipment in cold
climates or applications
• Humidity control
• Patient comfort heating used in medical devices
• Mold die and platen heating
• Seal bars used in packaging equipment
• Test sample heating in gas chromatography equipment
Technical Data:.
Tube diameter:
customized,Min dia.2.8mm
Tube Material:
SS304;SS316,SS321,NICOLOY800 etc.
Insulation Material:
High-purity Mgo
Reisistance wire element:
Ni-Cr or FeCr
Wattage density:
high/middle/low(5-25w/cm2)
Lead Connection Option:
Crimped or Swaged leads
Lead wire type:
10" Standard(Teflon/silicone high temperature frberglass)
|
Dia*L (mm)
|
Power (low density)
|
Power (high density)
|
Dia*L (mm)
|
Power (low density)
|
Power (high density)
|
|
6-60
|
60W
|
120W
|
14-100
|
200W
|
450W
|
|
6-80
|
100w
|
200W
|
14-120
|
250W
|
520W
|
|
6-200
|
190W
|
350W
|
14-150
|
330W
|
650W
|
|
8-50
|
65W
|
120W
|
14-200
|
400W
|
880W
|
|
8-100
|
125W
|
250W
|
14-250
|
550W
|
1000W
|
|
8-150
|
200W
|
350W
|
14-300
|
650W
|
1300W
|
|
8-200
|
250W
|
500W
|
16-100
|
250W
|
500W
|
|
10-60
|
100W
|
200W
|
16-120
|
300W
|
600W
|
|
10-80
|
125W
|
250W
|
16-150
|
350W
|
750W
|
|
10-120
|
200W
|
375W
|
16-200
|
500W
|
1000W
|
|
10-150
|
235W
|
475W
|
16-250
|
600W
|
1250W
|
|
10-200
|
300W
|
600W
|
16-300
|
750W
|
1500W
|
|
10-300
|
470W
|
900W
|
18-100
|
250W
|
550W
|
|
12-60
|
115W
|
225W
|
18-150
|
400W
|
850W
|
|
12-100
|
200W
|
375W
|
18-200
|
550W
|
1150W
|
|
12-120
|
225W
|
450W
|
18-300
|
850W
|
1500W
|
|
12-150
|
280W
|
550W
|
20-100
|
300W
|
650W
|
|
12-200
|
375W
|
750W
|
20-150
|
450W
|
950W
|
|
12-300
|
550W
|
1000W
|
20-300
|
950W
|
1800W
|
Notes:
1. The above list as normal item for your reference only
2. tube diamter: Φ3mm-Φ30mm
3. max wattage density: 25w/cm2
4.More details, welcome to email, let's disucuss together
|
Packaging
|
|
|
|
Size
|
40 (L) * 28 (W) * 28 (D)
|
|
|
Weight
|
20KG
of OEM ODM Cartridge Heating element Stainless Steel Cartridge/rod/ Pencil/ Single End Heaters With CE ROHS for mold
|
|
|
Packaging Details
|
The normal package is Carton(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
|
|
