This filter cartridge is made of textile fiber (polypropylene string, Absorbent cotton string, acrylic fiber yarn, fiberglass). According to the specified precess, it is winded tightly with the string in the polyporous core, structured by loose outer layers and tight inner layers, the filter cartridge porous outside it is big, inside it is small, it has the true deep filtration effect, it can remove the suspension, rust, particles, etc.
- Product Details
- {{item.text}}
Quick Details
-
Weight:
-
Customized
-
Size:
-
Customized
-
Power:
-
0
-
Productivity:
-
-
-
Weight (KG):
-
1 kg
-
Item:
-
Sediment yarn filter 10 inch 25 micron string wound filter cartridge
-
Core:
-
PP/SS
-
Micron:
-
1/5/10/20/30/50/75/100
-
Inner Diameter:
-
28mm / 30mm / OEM
-
Length:
-
5" / 10" / 20" / 30" / 40" / 50" / 60"
-
PP wound filter+PP core:
-
60℃
-
PP wound filter+SS:
-
100℃
-
Cotton filter+SS:
-
120℃
-
Glass fiber+SS:
-
180 - 300℃
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Customized
-
Material:
-
Customized, polypropylene fiber , absorbent cotton , glass fiber
-
Weight:
-
Customized
-
Size:
-
Customized
-
Power:
-
0
-
Productivity:
-
-
-
Weight (KG):
-
1 kg
-
Item:
-
Sediment yarn filter 10 inch 25 micron string wound filter cartridge
-
Core:
-
PP/SS
-
Micron:
-
1/5/10/20/30/50/75/100
-
Inner Diameter:
-
28mm / 30mm / OEM
-
Length:
-
5" / 10" / 20" / 30" / 40" / 50" / 60"
-
PP wound filter+PP core:
-
60℃
-
PP wound filter+SS:
-
100℃
-
Cotton filter+SS:
-
120℃
-
Glass fiber+SS:
-
180 - 300℃
Product Description

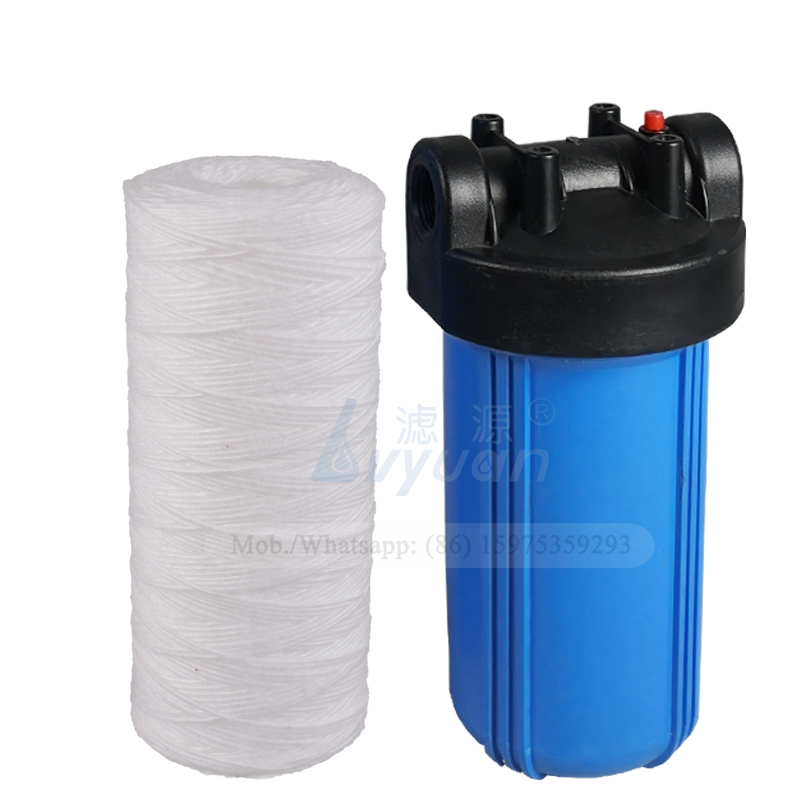

Pre water sediment yarn filter 10 inch 25 micron string wound filter cartridge for 4.5 inch jumbo blue PP filter housing
Our string wound water filter cartridges are structured loose outer layers and tight inner layers which can offer true depth filtration for high dirt holding capacity and extremely low media migration to ensure temperature and chemical compatibility. The main advantage of the string wound filter cartridge is its exceptionally high structural strength, therefore, they can withstand severe operating conditions.
|
Product name
|
Pre water sediment yarn filter 10 inch 25 micron string wound filter cartridge for 4.5 inch jumbo blue PP filter housing
|
|
|
||
|
Material
|
Polypropylene fiber , Absorbent cotton , Glass fiber
|
|
|
||
|
Precision
|
1-100 micron
|
|
|
||
|
Outer diameter
|
28mm-30mm/OEM
|
|
|
||
|
Inner diameter
|
60mm-63mm /115mm /OEM
|
|
|
||
|
Length
|
9.75" 9.87" 10'' 20'' 30'' 40'' 50" 60" / OEM
|
|
|
||
|
Connector
|
DOE/215/222/226/Fin/OEM
|
|
|
||
|
|
PP with PP core : 60 °C
|
|
|
||
|
|
PP with SS core : 100 °C
|
|
|
||
|
|
Cotton with SS core : 120 °C
|
|
|
||
|
|
Glass fiber with SS core : 180 °C -- 300 °C
|
|
|
||
Detailed Images
String wound PP sediment Filter with OEM size
Jumbo PP yarn string wound water filter
Big jumbo string wound water filter is designed for the removal of sediment, sands, dirt and rust from raw water. 10 20 30 40 inch length size is available, outer diameter is 110mm, inner diameter 28mm/30mm.
The rated temperature is up to 165℉, polypropylene yarn construction for excellent chemical resistance.
Fiberglass wire wound filter cartridge
The fiberglass wire wound filter cartridge is a kind of deep filtration. It is made of glass fiber according to a specific winding process by different winding methods. The glass fiber wire wound filter adopts the structure of inner tight outer pine.
Applications:
Organic solvent filtration, food & beverage & wine, pharmaceutical industry, high & low temperature gas steam filtration.
Absorbent cotton string wound filter
Absorbent cotton water filter for organic solvents, water, oil, alkaline solution, beverages, medicine, etc.
The working temperature is ≤120℃
Non-toxic, odorless, no secondary pollution, and long service life.
Length: 10", 20", 30", 40"
Core: Stainless steel/SUS304 316L
Polypropylene string wound PP yarn filter
Filter media: Polypropylene
Micron: 1um, 5um, 10um, 20um, 25um, 50um, 75um, 100um
Polypropylene with PP core: ≤80℃
High dirt holding capacity, longer service life.
Fits to all the standard filter housings.
Wide chemical compatibility and high filtration micron.
Various filter media fit with various applications.
All kinds of adaptors are available.
Application
RO SEA WATER TREATMENT
POWER PLANT
BIOLOGY TECHNOLOGY
PETROCHMICAL INDUSTRY
BOTTLED MINERAL WATER
BEER & BEVERAGE FILTRATION
