For poultry 4-20mA Fixed nh3 sensor ammonia gas detector

For poultry 4-20mA Fixed nh3 sensor ammonia gas detector

FOB Reference Price: Get Latest Price

≥1 Pieces

US $298

≥100 Pieces

US $249

≥200 Pieces

US $234

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: Huafan

Model Number:: HFT-NH3

Product name:: For poultry Fixed nh3 sensor ammonia gas detector

Alarm Type:: Sound+Light Alarm(Optional)

Measure Range:: 0-200ppm

Sensor:: Electrochemical Sensor

Certificate:: CE ATEX

Response time:: T90<30s

Explosion proof:: Exd II CT6

Signal output:: 4-20mA

Working voltage:: 24V

Material:: Die-aluminum housing

Quick Details

Type:: Portable

Warranty:: 1Year

Place of Origin:: Shaanxi, China

Brand Name:: Huafan

Model Number:: HFT-NH3

Product name:: For poultry Fixed nh3 sensor ammonia gas detector

Alarm Type:: Sound+Light Alarm(Optional)

Measure Range:: 0-200ppm

Sensor:: Electrochemical Sensor

Certificate:: CE ATEX

Response time:: T90<30s

Explosion proof:: Exd II CT6

Signal output:: 4-20mA

Working voltage:: 24V

Material:: Die-aluminum housing

Products Description

For poultry 4-20mA Fixed nh3 sensor ammonia gas detector

Product Features:

● CE,ATEX certificate

● Explosion proof: Exd II CT6

● Water dust proof: IP65

● Acousto-optic alarm

● Die casting aluminum shell

● Imported sensor high accuracy

● One year free warranty

Details Images

Product Characteristics & Parameters

For poultry 4-20mA Fixed nh3 sensor ammonia gas detector

● Imported sensor,high accuracy and sensitivity.

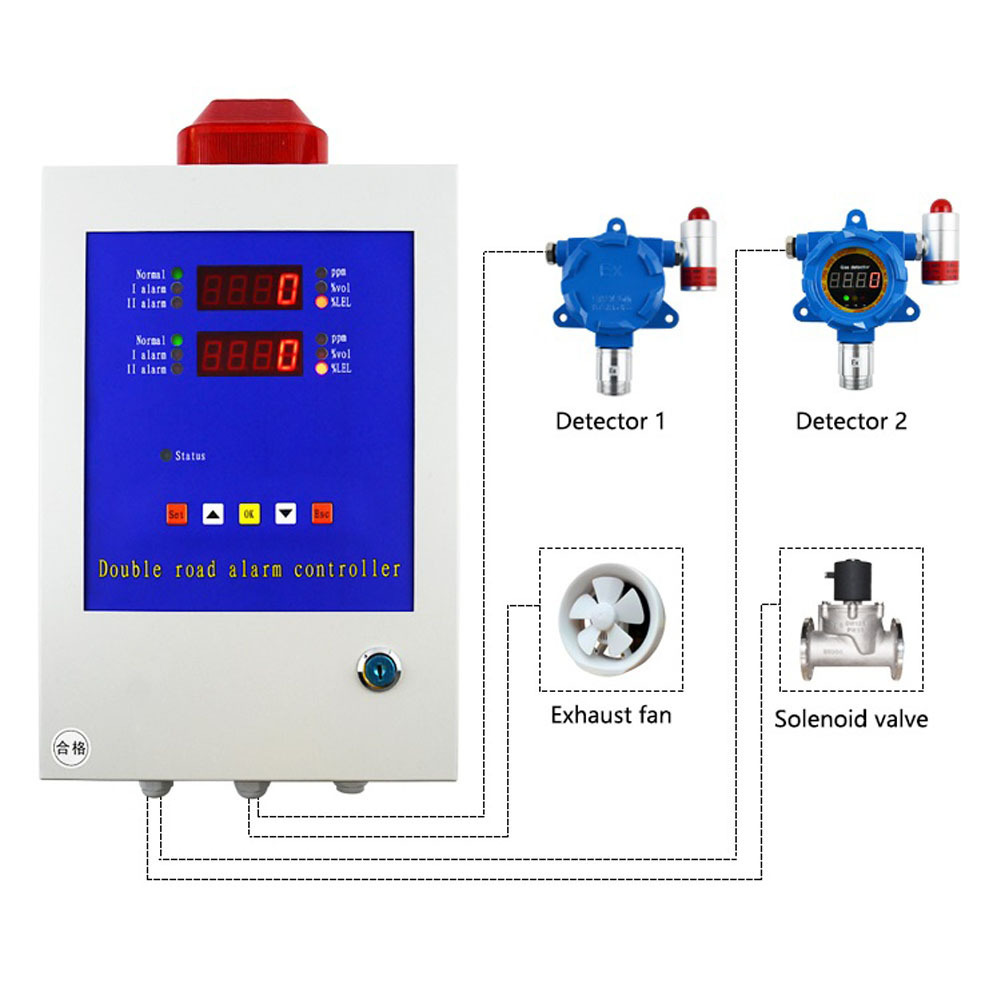

● With relay output, can drive ventilator or solenoid valve.
● Monitor gas concentration in open air in the environment.
● Two stage alarm with sound and light
● Explosion proof design, proof grade Ex dII CT6, IP65 water dust proof.
● LED display,Independent acousto-optic alarm,need extra cost $15/pc.
● With zero calibration functions, makes the detection more accurate and reliable.
● With 4-20mA signal output, being compatible with PLC, DCS andother control system.

Product Size:	14419071mm
Product weight:	1355g
Detect Gas:	NH3
Measure range	0-200ppm
Response time:	≤30s
Display	LED display
Working voltage:	DC24V
Output signal:	4-20 mA
Transmission cables:	three-wire system adopts three core shielded cable 3 x 1.5 mm2
Features:	with relay output signal, can drive ventilator or solenoid valve devices.
Temperature range:	- 20 ℃ ~ 50 ℃
Humidity:	15%-90%(RH)
Certificate:	CE,ATEX
Explosion-proof marks:	Exd II CT6
Transmission distance:	<1000 m
Certificate:	CE,ATEX. IP65 waterproof and dust proof
