Quick Details
-
Color:
-
red,white,yellow,green,blue
-
Panel Size:
-
20.4x20x8.4mm, 20.4x20x8.4mm
-
Place of Origin:
-
China
-
Model Number:
-
JSD-8012A/Bxxxx
-
Usage:
-
Indoor
-
Display Function:
-
Graphics
-
Pixels:
-
10mm
-
name:
-
7 segment led bicolor display 1 digit 0.8" inch dual color
-
digit height:
-
0.8 inch
-
segment color:
-
white diffused
-
surface color:
-
black or gray
-
emitting color:
-
bicolor
-
OEM:
-
Yes
Quick Details
-
Application:
-
Indoor
-
Type:
-
LED
-
Brand Name:
-
JSTRONIC
-
Color:
-
red,white,yellow,green,blue
-
Panel Size:
-
20.4x20x8.4mm, 20.4x20x8.4mm
-
Place of Origin:
-
China
-
Model Number:
-
JSD-8012A/Bxxxx
-
Usage:
-
Indoor
-
Display Function:
-
Graphics
-
Pixels:
-
10mm
-
name:
-
7 segment led bicolor display 1 digit 0.8" inch dual color
-
digit height:
-
0.8 inch
-
segment color:
-
white diffused
-
surface color:
-
black or gray
-
emitting color:
-
bicolor
-
OEM:
-
Yes

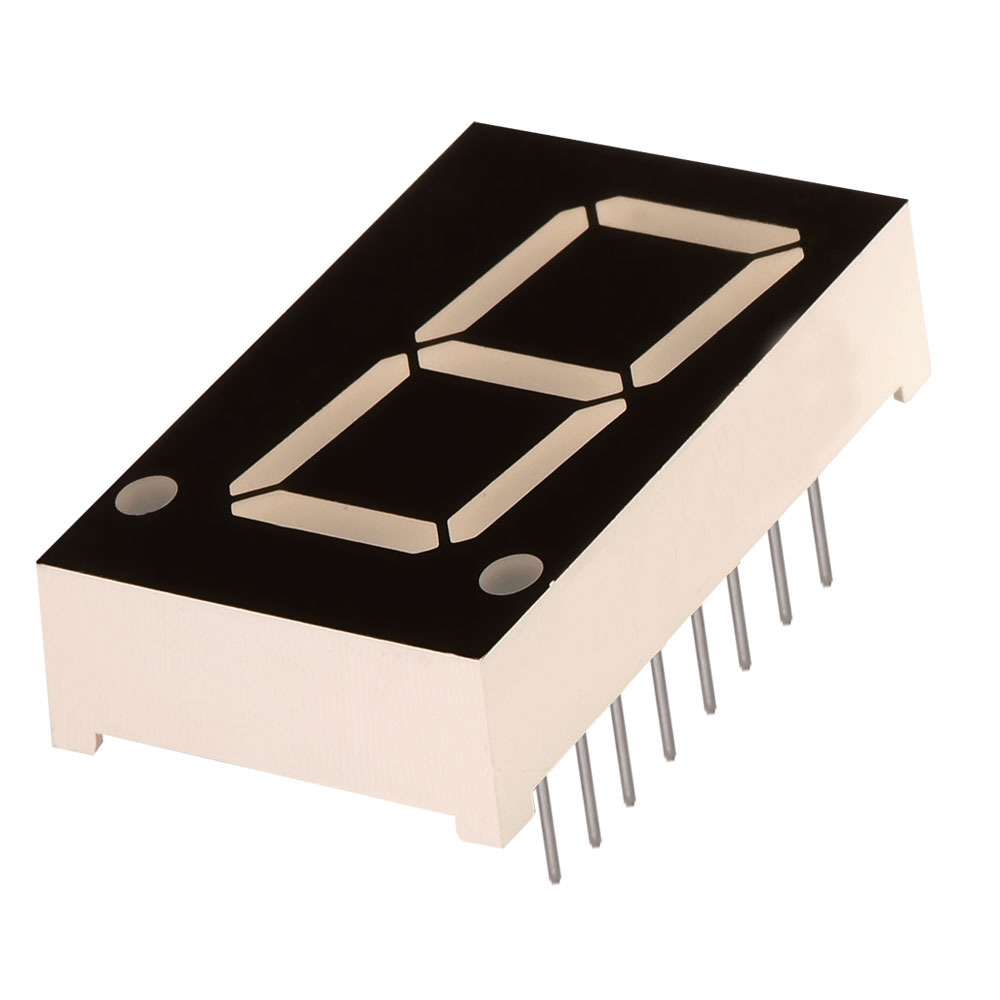

7 segment led bicolor display 1 digit 0.8" inch dual color
1 digit 7 segment 0.8 inch bicolor display dimension and circuit
Note: If this PCB layout don't meet your requirements, please contact me for other choices.
*Ultra segment intensity
*Wide viewing angle
*Range of colors
*Gray or black face White segment
*RoHS compliant
*7 segment display 0.8 inch
Red and green`1 digit 0.8 inch 7 segment led bicolor display
Electro/Optical Characteristics If=20mA Ta=25 C
|
Part Number |
EMITTED COLOR |
Peak Wavelength (mn) |
Vf(V) |
Iv( mcd ) |
|||
|
Com Cathode |
Common Anode |
Type |
Max |
Min |
Typ |
||
|
JSD-8012AUEUG |
JSD-8012 BUEUG |
AlGaInP/GaAs ultra red |
625 |
2.0 |
2.5 |
40 |
60 |
|
AlGaInP/GaAs Yellow Green |
574 |
2.0 |
2.5 |
10 |
15 |
||
|
JSD-8012 AUEUB |
JSD-8012 BUEUB |
AlGaInP/GaAs Ultra red |
625 |
2.0 |
2.5 |
40 |
60 |
|
InGaN/Sic Ultra Ultra Blue |
470 |
3.2 |
3.8 |
40 |
50 |
||
|
JSD-8012 AUEPG |
JSD-8012 BUEPG |
AlGaInP/GaAs Ultra red |
625 |
2.0 |
2.5 |
40 |
60 |
|
InGaN/Sic Pure Green |
525 |
3.2 |
3.8 |
150 |
200 |
||
0.8 inch 1 digit 7 segment led display second type
1.We can supply you all kinds of led 7 segment display
---Digit Size: From 0.25" to 16"
---Digit Number: 1,2,3,4,5 to 6 digits
2.7 Segment and 14 Segment both avaliable.
3.Available Color :red,yellow,amber,blue,green,white,bicolor.
4.Available Surfacce color: Grey or Black.
5.Lens Color :White diffused or same as emiting color diffused.
1). Household eletronics-----DVD/VCD player, Induction cooker, Micro-wave oven, Air-conditioner, E-fan, Washing machine, Soya-bean milk machine,etc.
2). Factory/company equipment-------Instrument panels, Digital read out display, Calendar, Smart meter, Electronic scale,etc.
3). Elevator/lift, Bank exchange rate display, Led clock display, Led oil price display for gas satation and other different display areas of equipment/machine.
1. How to shipping ?
(1) Normally , it will be shiped out by DHL UPS TNT express or other express for the weight is not too heave and box size is small .
(2) it will be shipping out by air or sea once the weight and size is huge enough.
(3) the shpping way from our clients' advise.
2.what will be the types of payment?
The payment we can accept are T/T transaction,Paypal,Western Union,etc.
3.Could you please send me the samples for comfirm the quality?
Of course ,We can provide some free samples for our clients comfirm the quality.
Our company owned not only advanced LED automatic product lines and testing machines but also have more than 10 years expriences in LED machine,R&D and sales.Sincerity,innovation,service,excellence is our business principle.With all our staff's hard working,we provide LED products in high quality
Our main is to help customer reach their goals.We are making great efforts to achieve their win-win situation and sincerely welcome you to join us.
Welcome to visit our factory.
For more details or free samples testing,please "send" now
