200M 300M Underground Borehole Machine Equipments Well Drilling Machine Diesel

200M 300M Underground Borehole Machine Equipments Well Drilling Machine Diesel

FOB Reference Price: Get Latest Price

≥1 Pieces

US $15275

≥5 Pieces

US $14150

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Dimension(L*W*H):: 4000*1750*2450

Weight:: 5.8 KG

Product name:: Manual Drilling Rig For Wells Up To 80m

Name:: Multifunction Hydraulic Drilling Rig

Application:: Water Wells Rock Drill Rig

Bore diameter:: 75~350mm

Drilling depth:: 180m/200m/280m/300m/350m/400m/500m/600m/800m

Stroke:: 3300mm~6600mm

Travelling speed:: 2.5km/h

Gradeability:: 30%

Rated pressure:: 1.7~3.5Mpa

Air consumption:: 17-42m3/min

Quick Details

Place of Origin:: Shandong, China

Brand Name:: YG/OEM

Voltage:: None

Dimension(L*W*H):: 4000*1750*2450

Weight:: 5.8 KG

Product name:: Manual Drilling Rig For Wells Up To 80m

Name:: Multifunction Hydraulic Drilling Rig

Application:: Water Wells Rock Drill Rig

Bore diameter:: 75~350mm

Drilling depth:: 180m/200m/280m/300m/350m/400m/500m/600m/800m

Stroke:: 3300mm~6600mm

Travelling speed:: 2.5km/h

Gradeability:: 30%

Rated pressure:: 1.7~3.5Mpa

Air consumption:: 17-42m3/min

Product Description

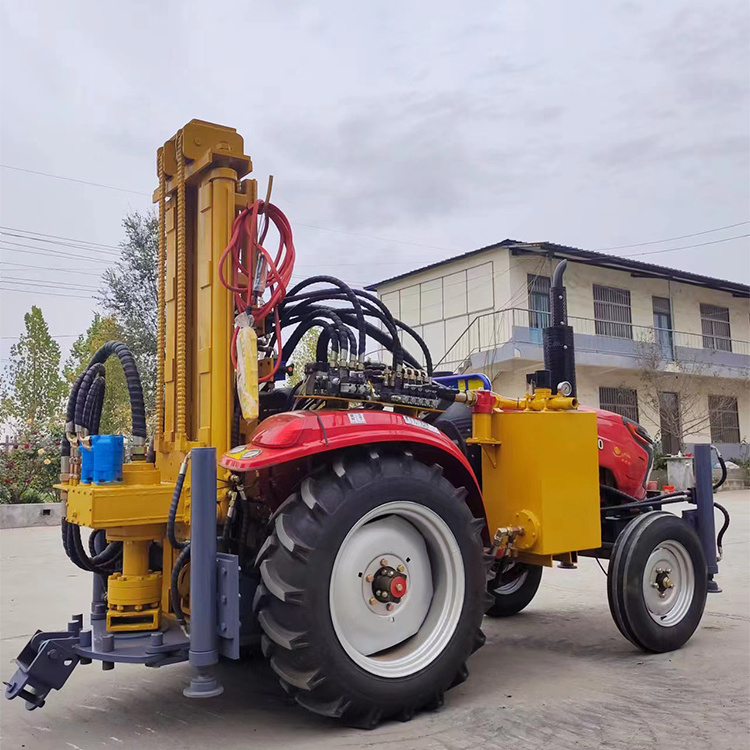

Pneumatic Water well Drill Rig

All drilling rigs are multifunctional, it can be used with air compressor, mud pump, even we can just use the dry hydraulic drilling method. The drilling rigs are not only designed for water drilling. They can be used in all conditions based on pore-forming purpose. They are widely used in industrial and agriculture water project, testing well and other exploration borehole. In particular, drilling hole for geothermal heating, it can also meet the engineering basis for reinforcement, loose gravel drilling rock formation connected with a variety of engineering. Our drilling rigs are more efficiency and with low failure rate, more economic and durable, and with a high comprehensive cost performance.

Pneumatic Water well Drill Rig

1. The drilling rig can work in harsh environments such as mud, mortar and liquid. In order to ensure reliable sealing performance, a mechanical seal is specially treated to block the leakage of gear oil and prevent mud and sand from entering the body. 2. The drill pipe is threaded connection, using seamless steel pipe, threaded joints are made of 45 steel, forging and quenching treatment, strong torsion resistance, and grease lubrication. Through the forward and reverse rotation of the gearbox, the installation and disassembly of the drill rod are realized. 3. The drilling rig uses the hydraulic oil reversing valve to operate the lifting, lowering and extension of the drilling rig's hydraulic outriggers, which can be fully separated from the truck chassis during work, and the hydraulic outriggers can enhance the balance and stability of the drilling rig. 4. The drilling rig adopts high-pressure and large-capacity Chigo air compressor, which increases the drilling speed by 1.5 times. With an alloy steel impactor, it can drill in a variety of formations such as clay, sand and bedrock. 5. The drilling rig has beautiful appearance, large torque of the turntable, and fast footage. It is suitable for farmland water conservancy projects, industrial deepwater wells, national defense construction, hydrological exploration, geothermal mine and water well drilling, and can also be used for foundation hole construction of other projects. It is well received by customers at home and abroad. Welcome.
