Quick Details
-
Table Travel (Z) (mm):
-
1400 mm
-
Max. Table Load(kg):
-
5000
-
Travel (W-axis) (mm):
-
600 mm
-
Marketing Type:
-
Hot Product
-
Positioning Accuracy (X axis) mm:
-
0.005
-
Positioning Accuracy (Y axis) mm:
-
0.005
-
Positioning Accuracy (Z axis) mm:
-
0.005
-
Range of Spindle Speed(r.p.m):
-
1000 r.p.m
-
Spindle Motor Power(kW):
-
7.5
-
Production Capacity:
-
300set/year
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
YJMT
-
Voltage:
-
220/380V and customized
-
Dimension(L*W*H):
-
4910x2870x2750mm
-
Weight (T):
-
13 T
-
Product Name:
-

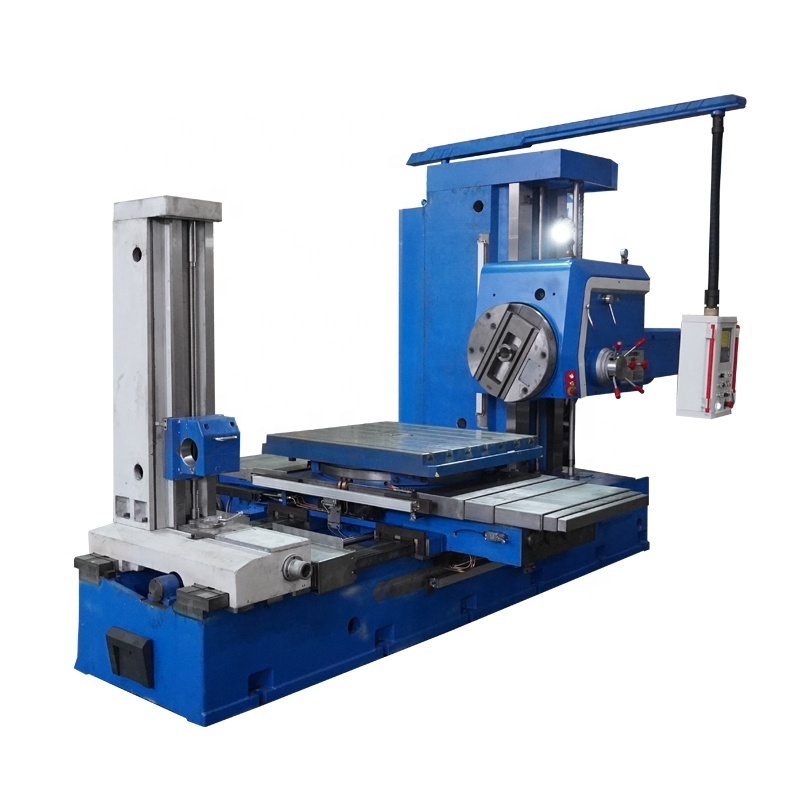

TPX6111B/2 Horizontal Boring and Milling Machine
-
Spindle Diameter(mm):
-
110
-
Spindle Taper:
-
Morse No6 (ISO7:24No50)
-
Maximum Torque of Spindle(Nm):
-
1225
-
Maximum Axial Resistance of Spindle(N):
-
12250
-
Spindle Speed Series:
-
22
-
Spindle Speed Range(r/min):
-
8-1000
-
Main Motor Power(kw):
-
7.5
-
Maximum Torque of Flat Rotary Disk(Nm):
-
1960
-
Diameter of Flat Rotary Disk(mm):
-
600
Quick Details
-
Table Size (mm):
-
1100*960
-
Table Travel (X) (mm):
-
1250 mm
-
Table Travel (Y) (mm):
-
900 mm
-
Table Travel (Z) (mm):
-
1400 mm
-
Max. Table Load(kg):
-
5000
-
Travel (W-axis) (mm):
-
600 mm
-
Marketing Type:
-
Hot Product
-
Positioning Accuracy (X axis) mm:
-
0.005
-
Positioning Accuracy (Y axis) mm:
-
0.005
-
Positioning Accuracy (Z axis) mm:
-
0.005
-
Range of Spindle Speed(r.p.m):
-
1000 r.p.m
-
Spindle Motor Power(kW):
-
7.5
-
Production Capacity:
-
300set/year
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
YJMT
-
Voltage:
-
220/380V and customized
-
Dimension(L*W*H):
-
4910x2870x2750mm
-
Weight (T):
-
13 T
-
Product Name:
-
TPX6111B/2 Horizontal Boring and Milling Machine
-
Spindle Diameter(mm):
-
110
-
Spindle Taper:
-
Morse No6 (ISO7:24No50)
-
Maximum Torque of Spindle(Nm):
-
1225
-
Maximum Axial Resistance of Spindle(N):
-
12250
-
Spindle Speed Series:
-
22
-
Spindle Speed Range(r/min):
-
8-1000
-
Main Motor Power(kw):
-
7.5
-
Maximum Torque of Flat Rotary Disk(Nm):
-
1960
-
Diameter of Flat Rotary Disk(mm):
-
600
PRODUCT DESCRIPTION
PRODUCT FEATURES
•The spindle speed range 8-1000r/min is realized by frequency conversion motor driving 2 gears.The spindle stepless speed is set and speed value is showed by setting buttons.
•Spindle taper is 7：24 No.50. This machine is equipped with automatic clamping/umclamping device which shorten auxilary time of clamping/umclamping tool and intensity of labor is reduced. The spindle features with good accuracy for a long time.
•Each coordinate axis moveing such as spindle, facing head slide, spindle box, longitudinal and cross movement of worktable and worktable rotation are all drove by AC servo motor mounted on bed. The feed stepless is set and the feed speed value is showed by setting buttons through gearbox, eletromagnitic clutch.
•The vertical axis is spindle box moving up and down, the traverse axis is worktable moving in cross direction and longitudinal axis is wor
ktable moving in longitudinal direction which can be equipped with new type digital display meter with memory function. The machine features with full function and high accuracy.
Spindle
Worktable
Spindle Control Structure
Spindle Control Structure
Lubrication Station
Rapid Traverse Motor
Worktable Transmission Device
Rear Column Support Lifting
Operator Panel
Electrical Distribution Box
PRODUCT DETAILS
|
Item
|
|
Unit
|
TPX6111B
|
TPX6111B/2
|
TPX6111B/3
|
|
Spindle
|
Diameter
|
mm
|
110
|
110
|
110
|
|
|
Taper
|
-
|
Morse No6
(ISO7:24No50)
|
Morse No6
(ISO7:24No50)
|
Morse No6
(ISO7:24No50)
|
|
|
Max Torque
|
N.m
|
1225
|
1225
|
1225
|
|
|
Max Axial Thrust
|
N
|
12250
|
12250
|
12250
|
|
|
Speed Settings
|
-
|
22
|
22
|
22
|
|
|
Speed Range
|
r/min
|
8-1000
|
8-1000
|
8-1000
|
|
|
Main Motor Power
|
kW
|
7.5
|
7.5
|
7.5
|
|
Facing Plate
|
Max Torque
|
N.m
|
1960
|
1960
|
1960
|
|
|
Diameter
|
mm
|
600
|
600
|
600
|
|
|
Speed Range
|
r/min
|
4-200
|
4-200
|
4-200
|
|
|
Speed Settings
|
-
|
18
|
18
|
18
|
|
Worktable
|
Dimensions
|
mm
|
1100x960
|
1100x960
|
1250x1100
|
|
|
Max Load
|
kg
|
5000
|
5000
|
5000
|
|
|
T-slot Size
|
mm
|
22
|
22
|
22
|
|
|
T-slot Count
|
一
|
7
|
7
|
7
|
|
Machining
Range
|
X-axis Max Travel
|
mm
|
900
|
1250
|
1600
|
|
|
Y-axis Max Travel
|
mm
|
900
|
900
|
1200
|
|
|
Z-axis Max Travel
|
mm
|
1400
|
1400
|
1400
|
|
|
W-axis Max Travel(Spindle)
|
mm
|
600
|
600
|
600
|
|
|
U-axis Max Travel(Facing Plate Slide)
|
mm
|
180
|
180
|
180
|
|
|
B-axis Rotary Angle
|
。
|
360
|
360
|
360
|
|
|
Min Distance Between Spindle Centerline and Worktable
|
mm
|
0
|
0
|
0
|
|
Feed
|
Rapid Traverse
|
mm/min
|
X/Y/Z/W:2500
|
X/Y/Z/W:2500
|
X/Y/Z/W:2500
|
|
|
Feed range of axes for each spindle revolution
|
mm/rev
|
0.04-6/0.01-1.88
(X/Y/Z/W)
|
0.04-6/0.01-1.88
(X/Y/Z/W)
|
0.04-6/0.01-1.88
(X/Y/Z/W)
|
|
|
Speed Range (X)
|
mm/min
|
-
|
-
|
-
|
|
Accuracy
|
Linear Measurement Reading Accuracy (X/Y/Z-axis)
|
mm
|
0.005
|
0.005
|
0.005
|
|
|
Linear Measurement Reading Accuracy (B-axis)
|
。
|
0.001
|
0.001
|
0.001
|
|
General Specs
|
Dimensions(LxWxH)
|
mm
|
4910x2454x2750
|
4910x2870x2750
|
5028x3359x3079
|
|
|
Machine Weight
|
kg
|
11500
|
13000
|
14000
|
Arrangement of the operation system of the machine
Arrangement of buttons and switches on the button station
