Quick Details
-
Application:
-
Hotel
-
Place of Origin:
-
China
-
Brand Name:
-
S4A
-
Model Number:
-
D180S
-
Opening and closing time:
-
6-12S
-
Maximum door width:
-
1200MM
-
Rated power:
-
55W
Quick Details
-
Warranty:
-
2 years
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
graphic design
-
Application:
-
Hotel
-
Place of Origin:
-
China
-
Brand Name:
-
S4A
-
Model Number:
-
D180S
-
Opening and closing time:
-
6-12S
-
Maximum door width:
-
1200MM
-
Rated power:
-
55W

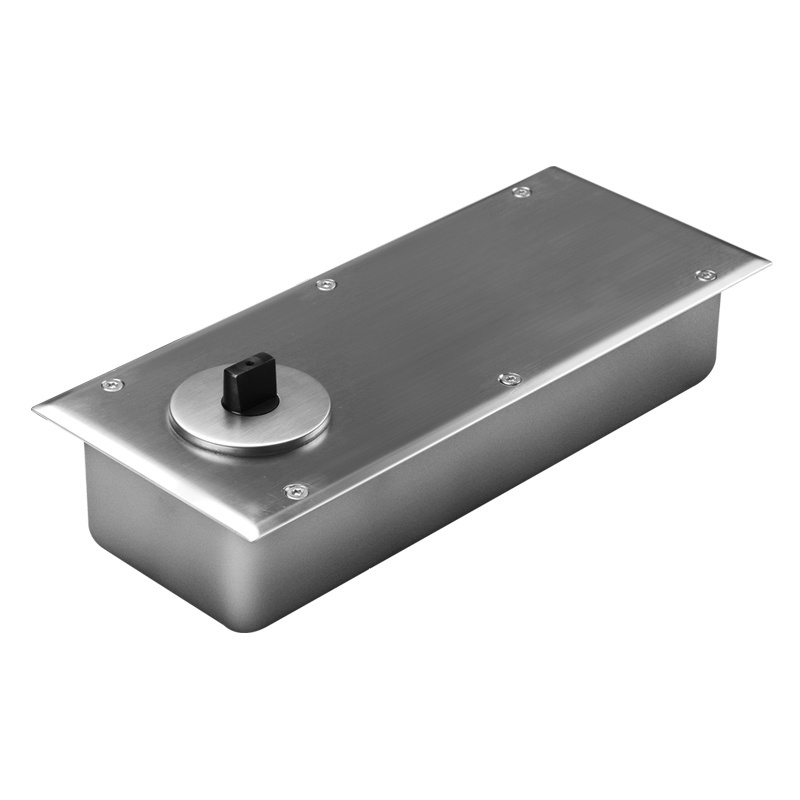

2021 Embedded Automatic Door Operators for Glass Door Electric Floor Spring Swing Door Opener
Floor Concealed Door Closers
> Maximum door weight: 180kg
> Maximum door width: 1200mm
> Opening and closing time: 6~12S
> Power supply: AC220V ±10% 50/60Hz
> Rated power: 55W
Floor Concealed Door Closers
Model No.: D180S
What is Floor Concealed Door Closers?
The overhead or floor mounted concealed door closer is a very common type of door closer mechanism which is normally unseen and unnoticed. ... Some concealed closers only allow single directional control for opening and closing to a fixed point or door stop.
|
Maximum door weight |
180kg |
|
Maximum door width |
1200mm |
|
Maximum torque |
165Nm |
|
Noise |
<60dB |
|
Opening and closing time |
6-12S |
|
Open range |
86°~95° |
|
Power supply |
AC220V ±10% 50/60Hz |
|
Rated power |
55W |
|
Special machine power |
<2W |
|
Operating temperature |
-20°C~55°C |
|
Protection level |
IP68 |
|
Control box size |
156x120x46mm |
|
Unit size |
320x110x70mm |
|
Unit weight |
5.5kg |
