Quick Details
-
Voltage:
-
380v 50 hz or customer made
-
Power:
-
12000
-
Weight:
-
5000 KG
-
Dimension(L*W*H):
-
3.3*1.9*2.2 m
-
Year:
-
2019
-
Item:
-
fish heat pump dryer
-
Tray size:
-
430X730mm,600X800mm
-
fish drying machine temperature:
-
0-75℃
-
Application:
-
fish,seafood,fruit ,vegetable,meat
-
Advantage:
-
saving energy 60% ,environment protection
-
Capacity:
-
100-2000kg per batch
-
Drying method:
-
new type air energy heating way
-
operation:
-
easy operation ,automatic temperature and moisture detect
-
equipment working life:
-
15 years
-
Name:
-
60% Energy Saving Dehydrator Drying Oven Fish Heat Pump Dryer
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
GUOXIN
-
Type:
-
fish drying machine
-
Voltage:
-
380v 50 hz or customer made
-
Power:
-
12000
-
Weight:
-
5000 KG
-
Dimension(L*W*H):
-
3.3*1.9*2.2 m
-
Year:
-
2019
-
Item:
-
fish heat pump dryer
-
Tray size:
-
430X730mm,600X800mm
-
fish drying machine temperature:
-
0-75℃
-
Application:
-
fish,seafood,fruit ,vegetable,meat
-
Advantage:
-
saving energy 60% ,environment protection
-
Capacity:
-
100-2000kg per batch
-
Drying method:
-
new type air energy heating way
-
operation:
-
easy operation ,automatic temperature and moisture detect
-
equipment working life:
-
15 years
-
Name:
-
60% Energy Saving Dehydrator Drying Oven Fish Heat Pump Dryer

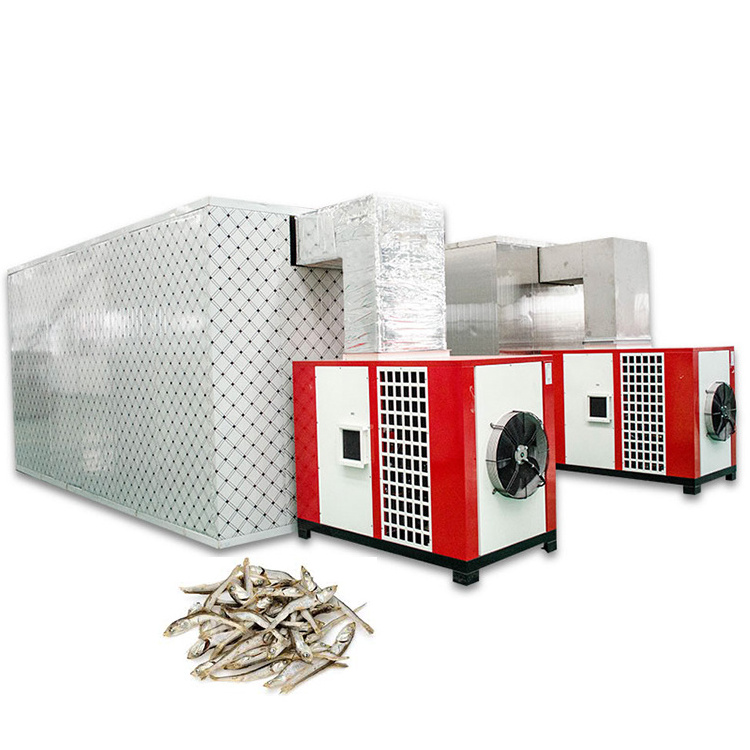

60% Energy Saving Dehydrator Drying Oven Fish Heat Pump Dryer
Fish heat pump dryer use the ambient air heat transferred to the surface of the material,the surface is wetted and evaporated.fully use natural medium heating to dry ,to achieve ”zero”pollution emissions,energy efficient,safe and environmentally friendly.
In addition, the heat pump drying using the latest cold, warm air drying system, drying temperature range of 10-75 ℃, than any traditional drying equipment more effective to protect the drying material color, smell, taste, individual form and effective and Nutrient, suitable for dried fish, dried shellfish, fish glue, dried squid, shark's fin, abalone, sea cucumber, shrimp and other fish, shrimp, shellfish, algae and other seafood drying.
Features Of fish heat pump dryer:
1. The drying process fully meets the food security requirements
2. The chamber has clean and safe conditions,the finished product has good color and lustre;
3,Automatic control, reducing manual and labor intensity;
4,No waste water/exhaust/waste residue in the drying process.The working environment is good and comfortable.
5. Long service life, low running cost and good economy;
6. Automatic control of temperature and humidity; Temperature, humidity in drying process has small fluctuation,drying quality is stable and reliable.
The application of fish heat pump dryer:
Dry vegetables like Radish, lettuce, pumpkin, carrots, spinach, cassava,etc
Dry fruits like Apple, lemon, mango slices, dried longan, dried longan,etc
Dry meat: Sausage, beef, duck, ham,etc
Others it can dry noodle/ wooden /stick incense/herbs /floers ect.
The working principle of fish heat pump dryer:
It’s working through compressor to produce high temperature and high pressure gas enter into condenser to release heat,the heat will be send into chamber by circulation fan. The temperature reach 20-80 degree centigrade. There is heat recovery device it can saving 60-70% fresh air preheating energy consumption.
Component of fish heat pump dryer
Guoxin Heat Pump dryer include heating system, drying chamber, trolley and tray.
Guoxin Heat Pump dryer is consists of the drying box, Feeding and discharging device, heat resource,electric control cabinet,draft fan and other devices.
The trolley adopt galvanized square material or stainless steel material, high temperature resistant, corrosion resistance and convenient to use.
You can choose PP or stainless steel tray to fill the material. If you have trolley and tray already, you can also give up the purchase of them to save some money.
detials and fea.
Detail Features of fish heat pump dryer
Technical parameters of fish heat pump dryer:
| Model | Weight(kg) | Power(kw) | Capacity each batch(kg) | Pallet quantity | Over size(mm) |
| 1P | 150 | 1.5 | 50 | 16 | 1180*690*1800 |
| 3P | 180 | 4.5 | 300 | 96 | 3500*2100*2200 |
| 7P | 325 | 6.5 | 500 | 144 | 5300*2200*2215 |
| 14P | 459 | 10.5 | 1500 | 360 | 8400*3000*2215 |
fish heat pump dryer successful working sites:
About us:
Gongyi Guoxin Machinery Factory is professional in fish heat pump dryer manufacturer. The main product are mesh belt fish heat pump dryer, fish heat pump dryer, microwave fish heat pump dryer and other supporting equipment.The machine in our factory have CE and ISO certificate.We have many success working sites about industrial fruit fish heat pump dryer.
The customer from all over the world come our factory to check fish heat pump dryer:
Packing &Shipping
For fish heat pump dryer ,we will pack machines with wooden box, or deliver with container without packing, to prevent them from destroying during transportation. Then, we will choose the most convenient and economic way to deliver goods. Besides, if our customer have specific demand with delivery, we can make it.
The sales service of fish heat pump dryer:
Provide considerate services to minimize clients’ worries.
1) Provide civil engineering drawings of the equipment.
2) Free training(including installation,maintenace) to every customer.
3) Install and debug the equipment, ensure the dryer running smoothly.
4) Examine the equipment regularly.
5) Take initiative to eliminate the troubles rapidly at site.
6) Distribute the guarantee fittings door-to-door.
7) Provide technical exchange and support.
8) Provide maintenance for big items.
9) The most preferential prices to provide customers the quick-wear parts.
If you are interested in our fish heat pump dryer, we warmly welcome you come our factory to check machine here.
