Quick Details
-
Brand Name:
-
YOULIKE
-
Model Number:
-
P3 Flush
-
Product name:
-
12way electrical mcb distribution box
-
Cover material:
-
HIPS
-
Box material:
-
powder coated steel
-
din rail material:
-
galvanized plate
-
plate thickness:
-
1.0mm/1.2mm
-
Ways:
-
12,15,18,21,24,26,32,42,54
-
Mounting Type:
-
flush
-
Terminal dimension:
-
6x10.4mm/6.4x12mm
-
Ingress protection:
-
IP40
-
Color:
-
White
Quick Details
-
Voltage:
-
Low voltage
-
Current:
-
63A/80A
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YOULIKE
-
Model Number:
-
P3 Flush
-
Product name:
-
12way electrical mcb distribution box
-
Cover material:
-
HIPS
-
Box material:
-
powder coated steel
-
din rail material:
-
galvanized plate
-
plate thickness:
-
1.0mm/1.2mm
-
Ways:
-
12,15,18,21,24,26,32,42,54
-
Mounting Type:
-
flush
-
Terminal dimension:
-
6x10.4mm/6.4x12mm
-
Ingress protection:
-
IP40
-
Color:
-
White

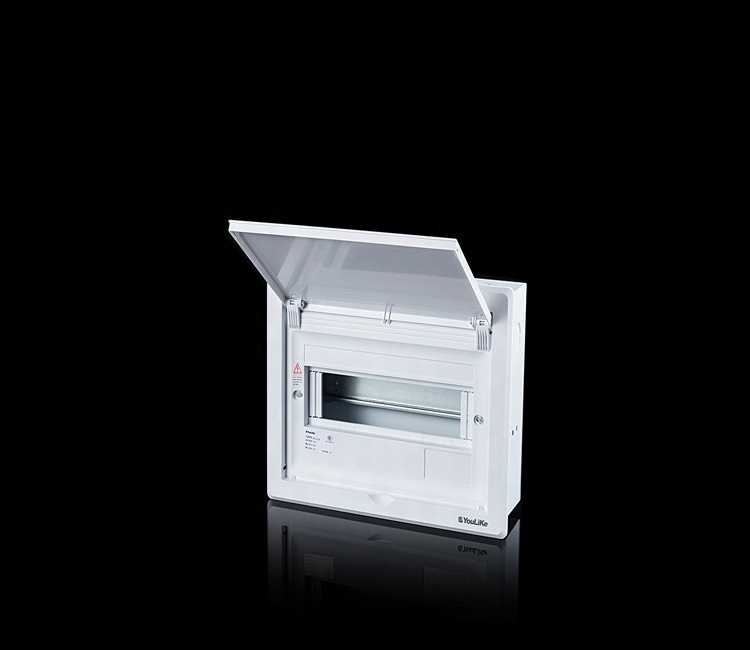

Hot Selling 12 Way Plastic Main Switch Board Consumer Unit Electrical Db Box MCB Distribution Board
Product Description
Product Name | Flush Mounting Distribution Box |
Material | powder coated steel + ABS |
No.of mounted units | 12way |
Box Dimension | 292*210*900*1.0mm |
Certification | CE,CCC |
MOQ | small order can be accepted |
Design ability | Can be engraved with customer's Logo and OEM&ODM service |
Specification
Type | Box dimension(mm) | Material | Cover dimension(mm) |
12way
|
292×210×90×1.0 |
ABS+METAL | 312×230×10(27.5) |
15way
|
346×220×90×1.0 |
ABS+METAL | 366×240×10(27.5) |
18way
|
400×220×90×1.0 |
ABS+METAL | 420×240×10(27.5) |
21way |
454×220×90×1.0 |
ABS+METAL | 474×240×10(27.5) |
24way |
508×230×90×1.0 |
ABS+METAL | 528×250×10(27.5) |
26way |
328×380×90×1.0 |
ABS+METAL | 348×400×10(27.5) |
32way
|
382×380×90×1.0 |
ABS+METAL | 402×400×10(27.5) |
42way |
472×380×90×1.0 |
ABS+METAL | 492×400×10(27.5) |
54way
|
424×580×100×1.2 |
ABS+METAL | 448×604×12(29.5) |
