High Efficiency Safety 1KG Mini Portable Induction Furnace for Melting Gold Silver Copper Steel Smelting Machine
High Efficiency Safety 1KG Mini Portable Induction Furnace for Melting Gold Silver Copper Steel Smelting Machine
High Efficiency Safety 1KG Mini Portable Induction Furnace for Melting Gold Silver Copper Steel Smelting Machine
High Efficiency Safety 1KG Mini Portable Induction Furnace for Melting Gold Silver Copper Steel Smelting Machine
High Efficiency Safety 1KG Mini Portable Induction Furnace for Melting Gold Silver Copper Steel Smelting Machine
High Efficiency Safety 1KG Mini Portable Induction Furnace for Melting Gold Silver Copper Steel Smelting Machine
High Efficiency Safety 1KG Mini Portable Induction Furnace for Melting Gold Silver Copper Steel Smelting Machine
High Efficiency Safety 1KG Mini Portable Induction Furnace for Melting Gold Silver Copper Steel Smelting Machine

High Efficiency Safety 1KG Mini Portable Induction Furnace for Melting Gold Silver Copper Steel Smelting Machine

FOB Reference Price: Get Latest Price
≥1 Sets
US $535
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Dimension(L*W*H):
315*295*310mm
Weight (T):
0.01 T
Power (kW):
3.5
Product Name:
Mini MF Induction Melting Furnace
Net Weight:
7.5KG
Application:
Smelting, Refining, Recycling
Max temperature:
1600℃
Suitable Metal:
Gold, Silver, Brass, Karat Gold, Steel, Aluminum, etc
Feature:
Continuous Production
Supply power:
220V 50-60Hz
Power:
3500W
Capacity:
1kg gold
Keyword:
Induction furnace

Quick Details

Place of Origin:
Guangdong, China
Brand Name:
YALI
Voltage:
190/230V, 190V/235V
Dimension(L*W*H):
315*295*310mm
Weight (T):
0.01 T
Power (kW):
3.5
Product Name:
Mini MF Induction Melting Furnace
Net Weight:
7.5KG
Application:
Smelting, Refining, Recycling
Max temperature:
1600℃
Suitable Metal:
Gold, Silver, Brass, Karat Gold, Steel, Aluminum, etc
Feature:
Continuous Production
Supply power:
220V 50-60Hz
Power:
3500W
Capacity:
1kg gold
Keyword:
Induction furnace
Mini Induction Melting Furnace Technical Parameters
Voltage
200v - 235v
Working Frequency
50hz - 60hz
Power input:
1KG 3500W
Support 100%full load
System protection:
Double IGBT Over heat protection ,Lack water protection.

Non - pot circuit detection function. Automatic many kinds of internal fault detection procedures, such as driving frequency error automatic alarm protection , such as a variety o
1kg melting furnace takes gold as a standard, silver capacity is about 500grams, copper/ steel capacity is about 300grams, aluminium capacity is about 100grams.
Packaging & Shipping

Protection circuits.

Water Cooling system:
External water cooler, or direct tap water, only a minute 1L of water flow can be used normally.
Melting Temp:
The actual temperature can be heated up to more than 1600 ℃ , the temperature can be raised rapidly, the electricity can be saved, the smelting cost is low, the cost performance is high
Melting Speed:
500 grams of copper. Silver. Gold. About 6 minutes .Graphite crucibles are necessary

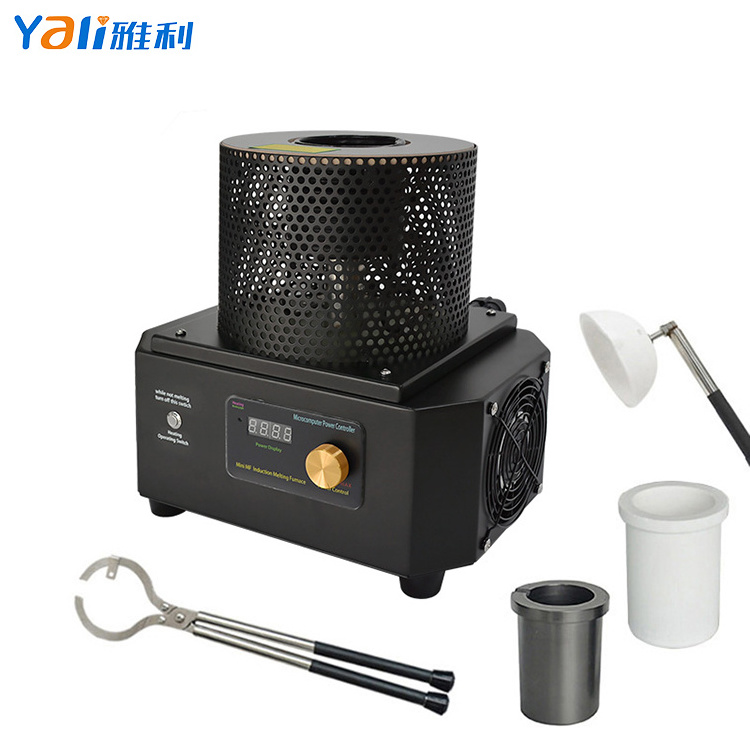

Accessories:
Graphit crucible 1pc ( ODΦ:58mm,  IDΦ: 35mm, Bottom: 47mm, Height: 88mm)
Cermaic crucible 1pc ( ODΦ:69mm, IDΦ: 50mm, Bottom: 58mm, Height: 87mm)
Crucible tong: 1pc
Water pump: 1pc
Dimension
About (315long * 295wide * 310 high) innovative design, small size, light weight.
Related Product
Prdoduct Feature
Prdoduct Feature
Founded in 2013,Guangzhou Yali Jewelry Technology co.,ltd, is a professional supplier
Product Description

of jewelry equipment , consumable, and technical support for jewelry manufacturing .We not only sell products ,but also provide good technical services to our customers. We provide a complete set of equipment solutions for jewelry manufacturing from 3D plate making to electroplating .

In the past five years,We value credit,abide by the contract,guarantee the product quality by the multi-variety management characteristic and the principle of small profits and large sales,has won the general customers' trust and the high praise.

Metal name Melting point(℃) Density Melting furnace specifications and metal capacity
1KG machine(g) 2KG machine(g) 3KG machine(g)
Gold 1064 19.3 About 1000 About 2000 About 3000
Silver 962 10.5 About 500 About 1000 About  1300
Copper 1083 8.92 About 400 About 600 About  800
Iron 1539 7.8 About 350 600 N/A
Aluminum 660 2.7 About 100 About 200 About 300
Stainless steel 1300-1400 About 7.8 About 300 About 600 N/A
Notice:The above data are for reference only
