Quick Details
-
Dimension(L*W*H):
-
2.8*1.3*1.8m
-
Weight:
-
1300 KG
-
Place of Origin:
-
Henan, China
-
Voltage:
-
220
-
Power:
-
18KW
-
Product Type:
-
Waste Cable Scrap Stripping Machine
-
Name:
-
Scrap Copper Wire Stripping Machine
-
Keyword:
-
Cable Recycle Machine
-
Usage:
-
granulator machine for copper
-
Type:
-
Wire Recycling Machine
-
Advantage:
-
High Effciency
-
Function:
-
Recycle Copper Wires
-
Control system:
-
PLC+touch Screen
-
Color:
-
Customer's Request
-
Capacity:
-
200KG
-
Product name:
-
granulator copper
Quick Details
-
Machinery Capacity:
-
200kg/h
-
Brand Name:
-
Yize
-
Year:
-
2022
-
Dimension(L*W*H):
-
2.8*1.3*1.8m
-
Weight:
-
1300 KG
-
Place of Origin:
-
Henan, China
-
Voltage:
-
220
-
Power:
-
18KW
-
Product Type:
-
Waste Cable Scrap Stripping Machine
-
Name:
-
Scrap Copper Wire Stripping Machine
-
Keyword:
-
Cable Recycle Machine
-
Usage:
-
granulator machine for copper
-
Type:
-
Wire Recycling Machine
-
Advantage:
-
High Effciency
-
Function:
-
Recycle Copper Wires
-
Control system:
-
PLC+touch Screen
-
Color:
-
Customer's Request
-
Capacity:
-
200KG
-
Product name:
-
granulator copper
Product Description

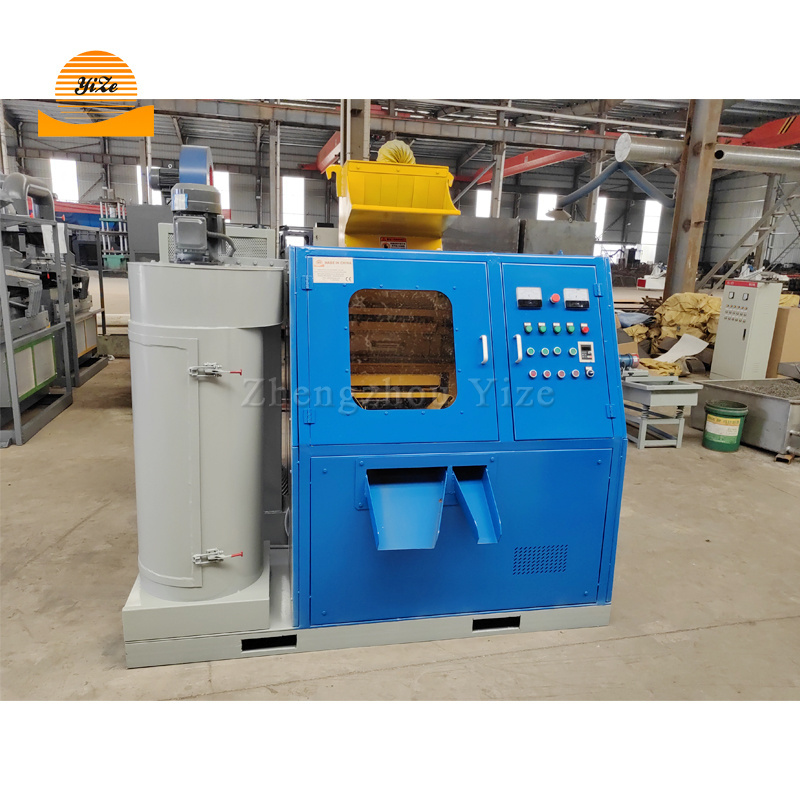

High Performance Cable Recycling Scrap Cable Peeling Machine Copper Wire Granulator Machine Cable Cutter Shredder Machine
The small copper rice machine is mainly used to process waste wires. Because the separated copper particles are like rice, it is called a copper rice machine. It is a high-quality equipment for reusing waste cables and wires.
Working principle：
Under the action of wind, two kinds of materials with different densities pass through the deflection caused by the amplitude motion of the sieve surface at a certain angle, so that the high-density copper wire is pushed forward against the sieve facing the copper outlet, and the low-density plastic skin floats on the copper. The wire flows to the skin opening, so as to achieve the purpose of copper-plastic separation.
Main uses：
The 600-type dry copper rice machine is aimed at various waste wires that are not suitable for stripping machines such as wire and cable, household appliances wires, communication wires, computer wires, etc. Dry separation and recovery. With large production capacity, low power consumption, high sorting rate, one feeding, multi-machine collaboration (crushing, conveying, feeding, vacuuming and dry separation), fully automatic intelligent control, only one person can feed to produce, and Advanced dust collection device.
|
Specification
|
600 Type
|
600 Wet Type
|
800 Type
|
800 Wet Type
|
|
Size
|
3.6*2*2.2m
|
3.2*2.9*2.3m
|
8*2.6*2.5m
|
3.2*3.2*2.3m
|
|
Out Put
|
300kg/h
|
300kg/h
|
550kg
|
550kg/h
|
|
Power
|
42kw
|
35kw
|
70kw
|
49kw
|
|
Weight
|
250Okg
|
2500kg
|
3500kg
|
3000kg
|
Detailed Images
Features of
Automatic Small Cable Waste Copper Wire Recycling Separator Scrap Stripping Wire Recycling Granulator Machine
：
1，Using PLC control, the equipment feeds uniformly, the operation is intelligent, and it has an automatic alarm function. It is easy
to operate, saves worry and effort, and ensures the stable operation of the equipment to the greatest extent.
to operate, saves worry and effort, and ensures the stable operation of the equipment to the greatest extent.
2，
High hardness spindle The pulverizer adopts a high-hardness spindle, which has more impact when pulverizing. Its working principle
is tearing type, which is composed of a cutter head and a cylindrical cutter shank, which greatly reduces the loss of the cutter.
is tearing type, which is composed of a cutter head and a cylindrical cutter shank, which greatly reduces the loss of the cutter.
3，
The wearing parts and screen are made of high-toughness and wear-resistant alloy material, which greatly improves the service life
and reduces the production cost.
and reduces the production cost.
Machine is loading into container and delivery
Scope of application:
Waste wires that are not suitable for wire strippers such as wire and cable, household appliance wires, communication wires, computer wires, etc. Working conditions Voltage 380V ± 10%, power frequency 50Hz. Third, the main equipment composition. The copper rice machine is mainly composed of five parts: pulverizer, conveyor, dust collector, fan, and sorter.
Raw materials and final product
Our factory in stock：
