YT-MC printed paper ink abrasion resistance test tribometer astm d5264 color fastness test equipment friction tester

YT-MC printed paper ink abrasion resistance test tribometer astm d5264 color fastness test equipment friction tester

FOB Reference Price: Get Latest Price

≥1 Pieces

US $3000

≥2 Pieces

US $1400

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: YANTE

Model Number:: YT-MC

Warranty Period:: One Year

Standard:: ISO9000

Quick Details

Warranty:: 1 years

Power:: Electronic

Place of Origin:: Zhejiang, China

Brand Name:: YANTE

Model Number:: YT-MC

Warranty Period:: One Year

Standard:: ISO9000

Product Overview

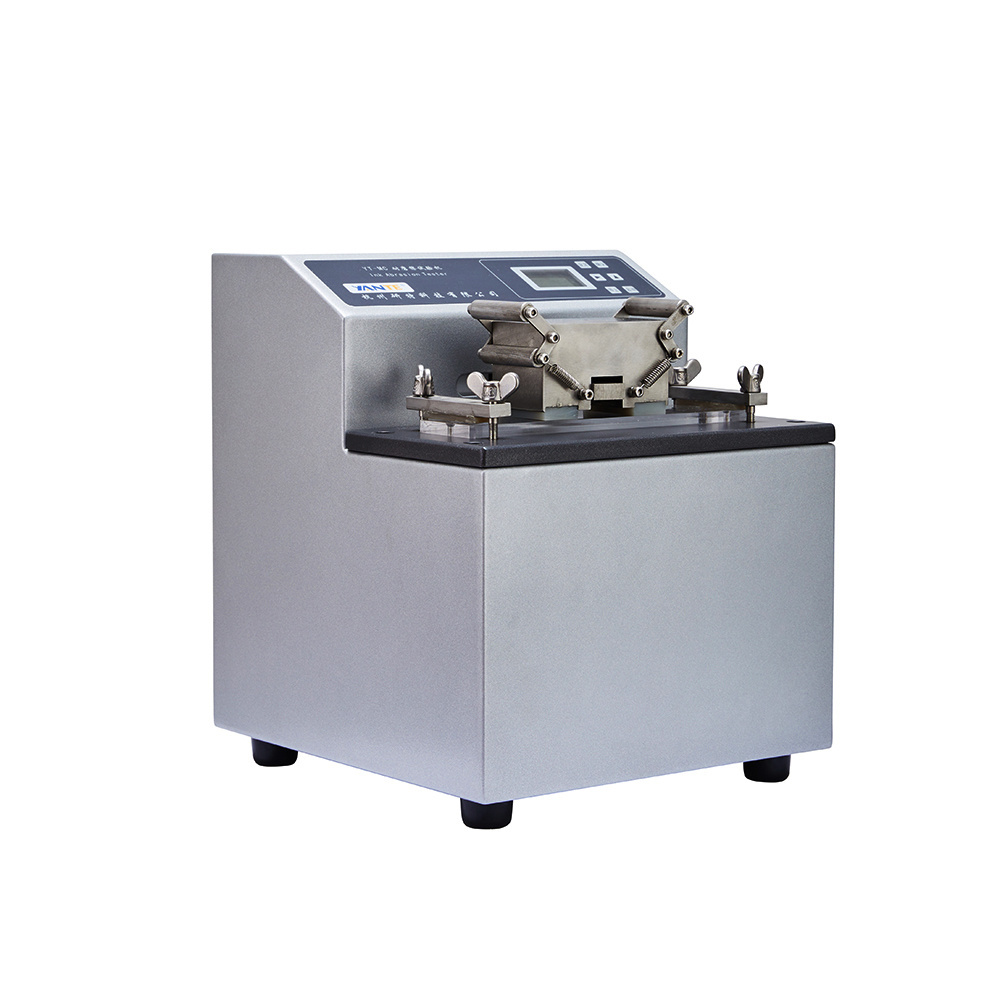

Ink Abrasion Tester is specialized in testing the abrasion resistance of printing ink layer, the abrasion resistance of PS plate photosensitive layer and the abrasion resistance of the surface coating of related products; it can effectively analyze the poor abrasion resistance of printed matter, the ink layer peeling off, and the resistance of PS plate. Problems such as low SCPG and poor coating hardness of other products.

Details Images

Application Range

Resistance of printing ink layer

Product Feature

LCD English display, 4 speeds adjustable. Power-off memory function, after power-on again, the state of the parameters entered before the last power-off will be maintained. Closed-loop servo stepper motor, ball screw, precision dual optical axis guide.

Execute Standard

GB/T 7706，GB/T 17497.3

Sales And Service Network

Product Paramenters

No.	Parameter item	Technical index
1	Power Supply	AC（220±10％）V, 50Hz 50W
2	Working Environment	Temperature(10~35)℃, Humidity≤ 85％
3	Measuring range	（1～99999）times
4	Friction distance	60mm
5	Friction speed	21/43/85/106 (Times/min)
6	Load	20N or 4pound
7	Dimension	290×295×335 mm
8	Net Weight	22kg around
