Quick Details
-
Current:
-
pls contact
-
Dimensions:
-
See details
-
Use:
-
butt welding
-
Weight (KG):
-
189 KG
-
After-sales Service Provided:
-
No overseas service provided
-
Weight:
-
185KG
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
OEM
-
Input Voltage:
-
220V
-
Current:
-
pls contact
-
Dimensions:
-
See details
-
Use:
-
butt welding
-
Weight (KG):
-
189 KG
-
After-sales Service Provided:
-
No overseas service provided
-
Weight:
-
185KG

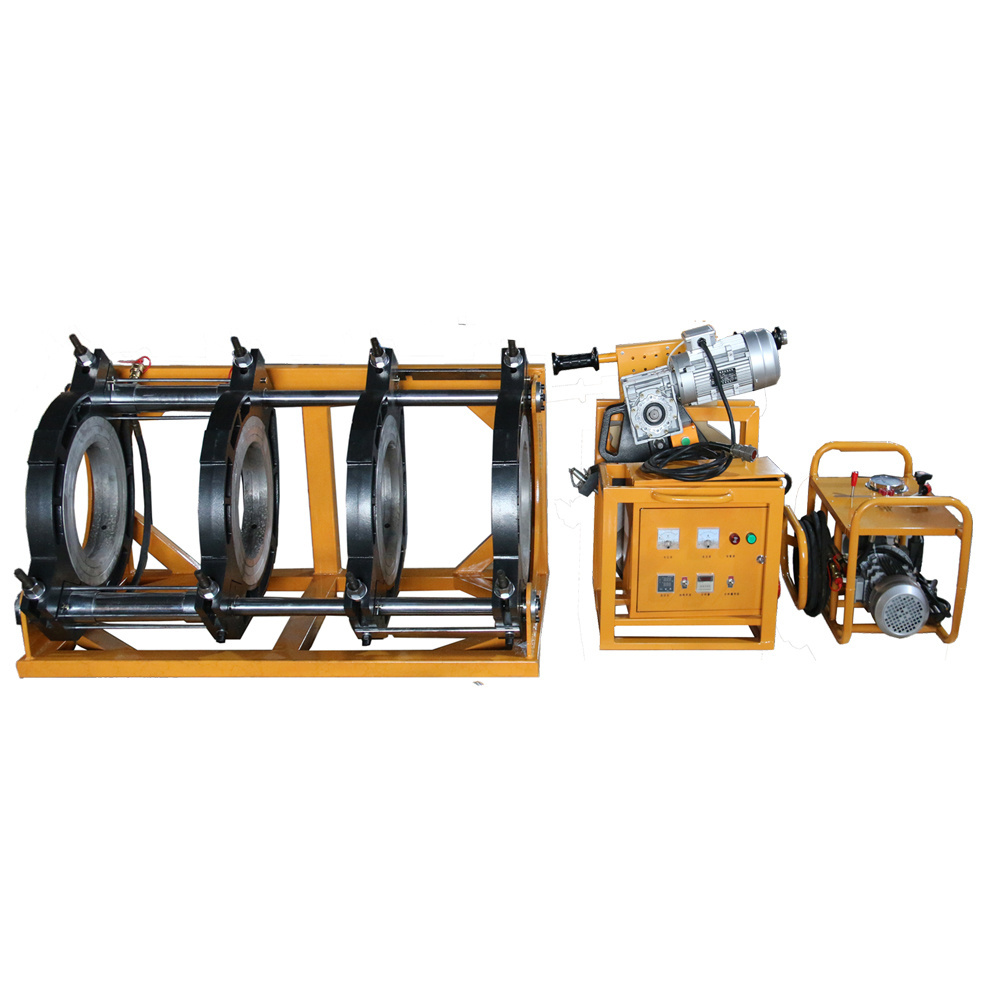

Model BLTHY Hydraulic Push Butt Welding Machine is suitable for welding PE PP PPR plastic pipe in all size. It is widely used to Agricultural, chemical, oil and gas pipelines, water supply pipes, drainage pipes etc,
|
PIPE DIAMETER (MM) |
WORKING TEMPERATURE |
TEMPERATURE DEVIATION |
POWER |
MEAS |
WEIGHT (KGS) |
|
63-160 |
220℃ |
+ 5℃ |
TOTAL:2.45KW/220V PLANE CUTTER:1.1KW HYDRAULIC STATION:0.75KW HEATING PLATE:1.5KW |
HYDRAULIC STATION:70× 53 × 50CM MACHINE FRAME::92× 52 × 47CM |
117 |
|
63-200 |
220℃ |
+ 5℃ |
TOTAL:2.6KW/220V PLANE CUTTER:0.85KW HYDRAULIC STATION:0.75KW HEATING PLATE:1KW |
HYDRAULIC STATION:74× 51 × 48/CM MACHINE FRAME::95× 54 × 50CM |
MACHINE FRAME: 69 HYDRAULIC STATION :53 |
|
90-250 |
220℃ |
+ 5℃ |
TOTAL:4.15KW/220V PLANE CUTTER:1.1KW HYDRAULIC STATION:0.75KW HEATING PLATE:2.3KW |
HYDRAULIC STATION:74× 63 × 73CM MACHINE FRAME::95× 48 × 57CM |
MACHINE FRAME: 65 HYDRAULIC STATION :83 |
|
160-315 |
220℃ | + 5℃ |
TOTAL:4.95KW/220V
PLANE CUTTER:1.1KW HYDRAULIC STATION:0.75KW HEATING PLATE:3.1KW |
HYDRAULIC STATION:7074× 70 × 67CM MACHINE FRAME::100× 60 × 64CM |
MACHINE FRAME: 93
HYDRAULIC STATION :92 |
| 180-355 | 220℃ | + 5℃ |
TOTAL:4.95KW/220V
PLANE CUTTER:1.1KW HYDRAULIC STATION:0.75KW HEATING PLATE:3.1KW |
HYDRAULIC STATION:7074×
70
×
67CM
MACHINE FRAME::100× 60 × 64CM |
MACHINE FRAME: 93
HYDRAULIC STATION :92 |
| 250-400 |
270℃ |
+ 5℃ |
TOTAL:8.1KW/380V PLANE CUTTER:1.5KW HYDRAULIC STATION:1.5KW HEATING PLATE:5.1KW |
HYDRAULIC STATION:74× 54 × 48CM/50KGS MACHINE FRAME::122× 85 × 96CM/17KGS BASKET THAT CARRYING HEATING PLATE, PLANE CUTTER AND POWER STATION:94× 54 × 120CM/122KGS |
|
| 280-450 | 270℃ | + 5℃ |
TOTAL:8.1KW/380V PLANE CUTTER:1.5KW HYDRAULIC STATION:1.5KW HEATING PLATE:5.1KW |
HYDRAULIC STATION:74× 54 × 48CM/50KGS MACHINE FRAME::122× 85 × 96CM/17KGS BASKET THAT CARRYING HEATING PLATE, PLANE CUTTER AND POWER STATION:94× 54 × 120CM/122KGS |
|
| 315-500 | 270℃ | + 5℃ |
TOTAL:8.1KW/380V PLANE CUTTER:1.5KW HYDRAULIC STATION:1.5KW HEATING PLATE:5.1KW |
HYDRAULIC STATION:74× 54 × 48CM/50KGS MACHINE FRAME::122× 85 × 96CM/17KGS BASKET THAT CARRYING HEATING PLATE, PLANE CUTTER AND POWER STATION:94× 54 × 120CM/122KGS |
|
| 400-630 | 270℃ | + 5℃ |
TOTAL:12.45KW/380V
PLANE CUTTER:1.5KW HYDRAULIC STATION:1.5KW HEATING PLATE:9.2KW |
HYDRAULIC STATION:74×
51
×
48CM/50KGS
MACHINE FRAME::139× 104 × 109CM/280KGS BASKET THAT CARRYING HEATING PLATE, PLANE CUTTER AND POWER STATION:114× 69 × 137CM/170KGS |
|
| 630-800 | 270 ℃ | + 5℃ |
TOTAL:8.1KW/380V
PLANE CUTTER:1.5KW HYDRAULIC STATION:1.5KW HEATING PLATE:5.1KW |
HYDRAULIC STATION:81×
56
×
50CM/70KGS
MACHINE FRAME::189× 136 × 145CM/720KGS BASKET THAT CARRYING HEATING PLATE, PLANE CUTTER AND POWER STATION:134× 84 × 169CM/360KGS |
|
Packaging Details:standard export wooden case
Delivery Detail:Shipped in 15 days after payment
