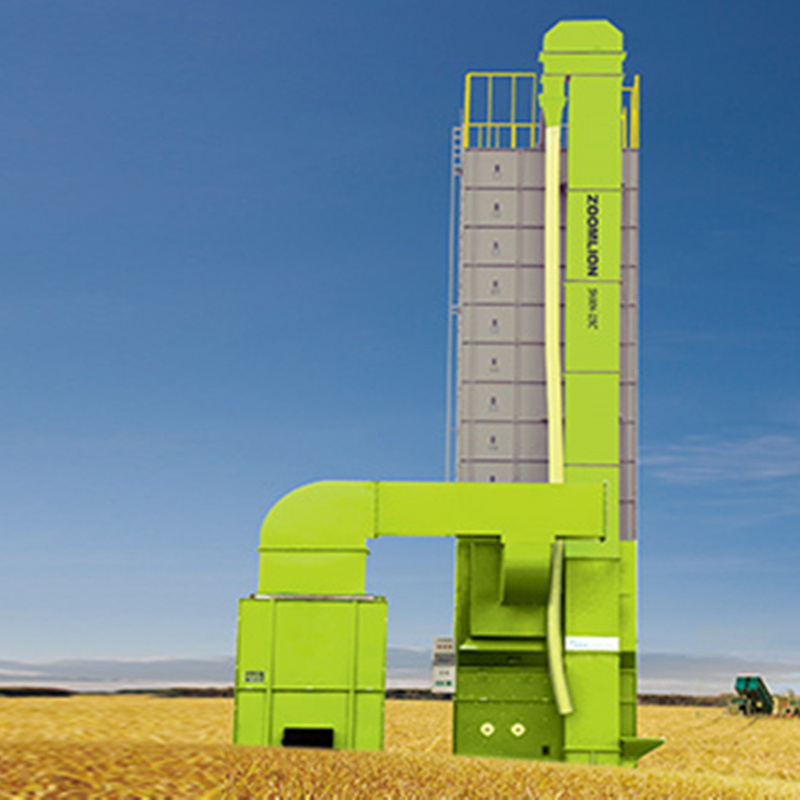

Wheat / Rice / Corn Paddy Dryer Machine 10T/15T Grain Dryer

Wheat / Rice / Corn Paddy Dryer Machine 10T/15T Grain Dryer

FOB Reference Price: Get Latest Price

≥1 Pieces

US $55000

≥5 Pieces

US $50000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: Maxizm

Product name:: Wheat / Rice / Corn Paddy Dryer Machine 10T/15T Grain Dryer

Application:: Cereal Grains

Name:: Coir Fiber Making Machine

Function:: Grain Separator

Color:: Customer Required

Capacity:: 0.56T/m3

Keywords:: Grain Color Sorting

Raw material:: Carbon Steel

Model:: DC100/DC150

Advantage:: High Efficiency Working

Certification:: CE

Quick Details

Type:: grain drying machine

Use:: Seed

Place of Origin:: China

Brand Name:: Maxizm

Product name:: Wheat / Rice / Corn Paddy Dryer Machine 10T/15T Grain Dryer

Application:: Cereal Grains

Name:: Coir Fiber Making Machine

Function:: Grain Separator

Color:: Customer Required

Capacity:: 0.56T/m3

Keywords:: Grain Color Sorting

Raw material:: Carbon Steel

Model:: DC100/DC150

Advantage:: High Efficiency Working

Certification:: CE

Product Description

Single layer with dry structure, hot air two in three out, thin layer dry, with compact structure, high drying efficiency and dry uniformcharacteristics.

Adopting the design of 1.2 thickness stainless steel plate , simple structure, high reliability and good corrosion resistance, greatly improve the service life of the product.

The low speed spiral conveying structure is designed to conveying capacity and low crushing.

Upper auger driving by belt of elevator motor with Simple structure, high transmission efficiency.

Adopting the low crushing bucket elevator, and increase our patented design of the anti-damage device to make the crushing rate lower.

Adopt 3kW inclined flow fan with the features of large air volume, high static pressure, stable operation, and low failure rate.

Sales identification number				DC100	DC125	DC150
Model				5HXG-10C	BHXG-12.5C	5HXG-15C
Structural style				Batch-type circulation
Total weight				2840	3040	3240
Capacity(kg)	Unhusked rice(0.56T/m³)			2500~10000	2500~12500	2500~15000
	Wheat(0.68T//m³)			3035~12100	3035~15200	3035~18200
Processing amount (kg/h)( moisture reduction rate of 25% to 14.5%)				≥600	≥800	≥900
Overall size			Overall length	3577	3577	3577
			Overall width	2973	2973	2973
			Overall height	9315	10405	11495
Heating mode				Direct/Indirect
Burner			Type	Double fire control , and double throttle automatic adjustment
			Lgnition mode	High voltage autoigtion
			Fuel type	Natural gas~liquefied gas
			Fuel consumption(kg/h)	8Nm³/h < gas consumption < 15Nm³
Total power(kW)				9.44
Mating power				Three-phase 380V/50HZ
Applicable fuel type				Bio-particles, rice husk, natural, gas, liquefied gas, diesel, electric power ,etc
Performances		Feeding time: rice/wheat(min)		40~50/35~45	50~60/40~50	55~65/50~60
		Discharging time: rice/wheat(min)		50~60/45~55	60~70/55~65	70~80/65~75
		Hot air temperature(℃)		30~120
		Moisture reduction rate(%/h)		0.5~1.2
		Drying capacity(t/h*%/h)		Rice≥6/ wheat≥7
		Unit heat consumption(KJ/kg. water		≤5000
