Quick Details
-
Model Number:
-
300/500/630/800/1000/1250mm
-
Name:
-

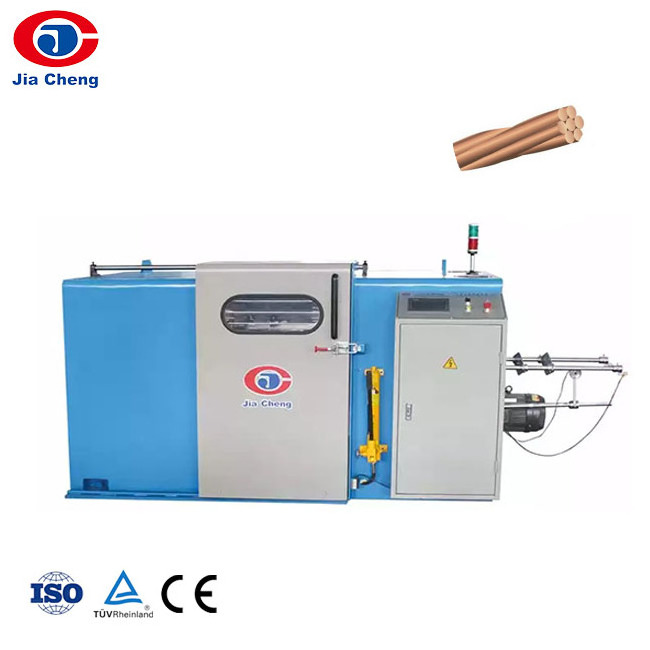

Automatic patch cord cable wire bunching stripping twisting machine
-
Usage:
-
for bunching bare copper, tinned wire and enameled wire, etc
-
Control type:
-
PLC + HMI + Inverter Control
-
Twisting direction:
-
S or Z
-
Traversing type:
-
transverse and distance can be adjusted by bearing transverse
-
Take-up tension:
-
tension controlled by magnetic clutch
-
Bobbin loading & unloading type:
-
hydraulic type
-
Brake system:
-
magnetic brake
-
Auto stop unit:
-
auto stop when reach setting length and wire broken inside and outside
-
After-sales service:
-
Online Support/Overseas Service Provided
Quick Details
-
Use:
-
Twisting
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
JIACHENG
-
Model Number:
-
300/500/630/800/1000/1250mm
-
Name:
-
Automatic patch cord cable wire bunching stripping twisting machine
-
Usage:
-
for bunching bare copper, tinned wire and enameled wire, etc
-
Control type:
-
PLC + HMI + Inverter Control
-
Twisting direction:
-
S or Z
-
Traversing type:
-
transverse and distance can be adjusted by bearing transverse
-
Take-up tension:
-
tension controlled by magnetic clutch
-
Bobbin loading & unloading type:
-
hydraulic type
-
Brake system:
-
magnetic brake
-
Auto stop unit:
-
auto stop when reach setting length and wire broken inside and outside
-
After-sales service:
-
Online Support/Overseas Service Provided
Product Description
|
Model No.
|
300P
|
500P
|
650P
|
||
|
Copper wire Dia.
|
0.05-0.25mm
|
0.10-0.45mm
|
0.18-1.00mm
|
||
|
Twisting sectional area
|
0.035-0.45mm2
|
0.05-2.50mm2
|
0.18-6.00mm2
|
||
|
Max. main shaft speed
|
3000rpm
|
3000rpm
|
2000rpm
|
||
|
Twisting pitch range
|
2.00-17.17mm
|
6.30-50.40mm
|
11.61-99.04mm
|
||
|
Traversing type
|
transverse and distance can be adjusted by bearing bransverse
|
|
|
||
|
Bobbin loading & unloading type
|
hydraulic type
|
|
|
||
|
Bobbin Dia.
|
300mm
|
500mm
|
630mm
|
||
|
Brake system
|
magnetic brake
|
|
|
||
|
Motor power
|
4kw
|
5.5kw
|
7.5kw
|
||
|
Main shaft center height
|
630mm
|
700mm
|
850mm
|
||
|
Auto stop unit
|
auto stop when reach setting length, and wire broken inside and outside
|
|
|
||
|
Operating direction
|
left/right hand machine
|
|
|
||
PLC+HMI+Inverter Control
Auto Stop Unit
>>>
Auto stop while reach setting lenght, and wire broken inside and outside
Tension Controlled By Magnetic Clutch
>>>
1) High speed
2) High productivity
3) High quality
Product Application
This series machine is used for bunching bare copper, tinned wire and enameled wire, etc which mainly applicated in the wire and cable industry.
